Description
Technical Data:

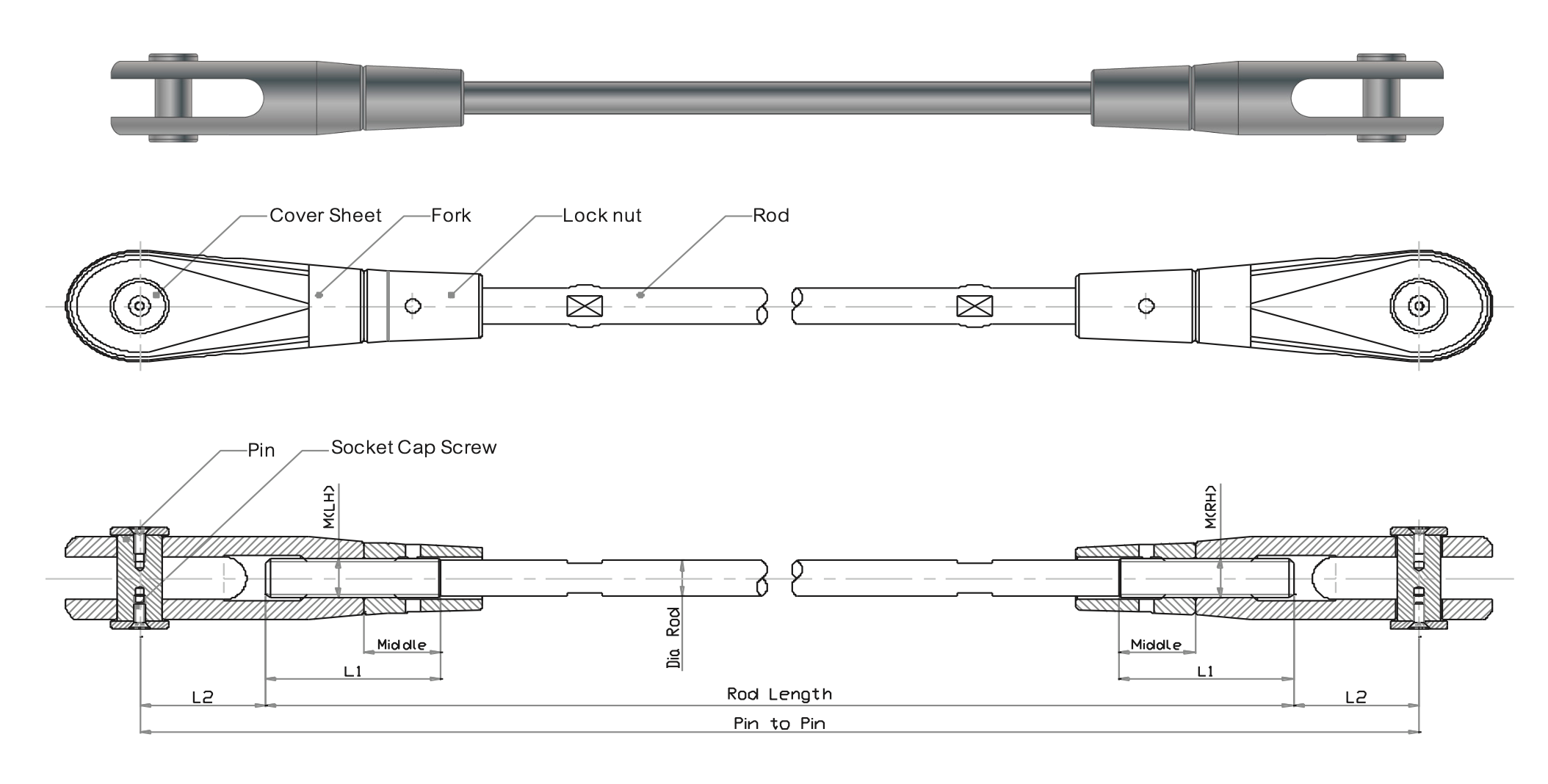

Fork: Casting material :AISI316, EN 1.4408
Lock Nut: Casting material: AISI316, EN 1.4408
Pin: Rod 17-4 PH
Rod: AISI316, EN 1.4408
Surface treatment : “M.F.” (Matte finished) M16-M45
“G.F.” (Gloss finished) M56-M100
MBL : Minimum Breaking Load before cable assembly.
Limit Tension : Recommended maximum load for a tension
member. All other applications should
consider ¼ of MBL*. TAP : ST03.3-1
