Description

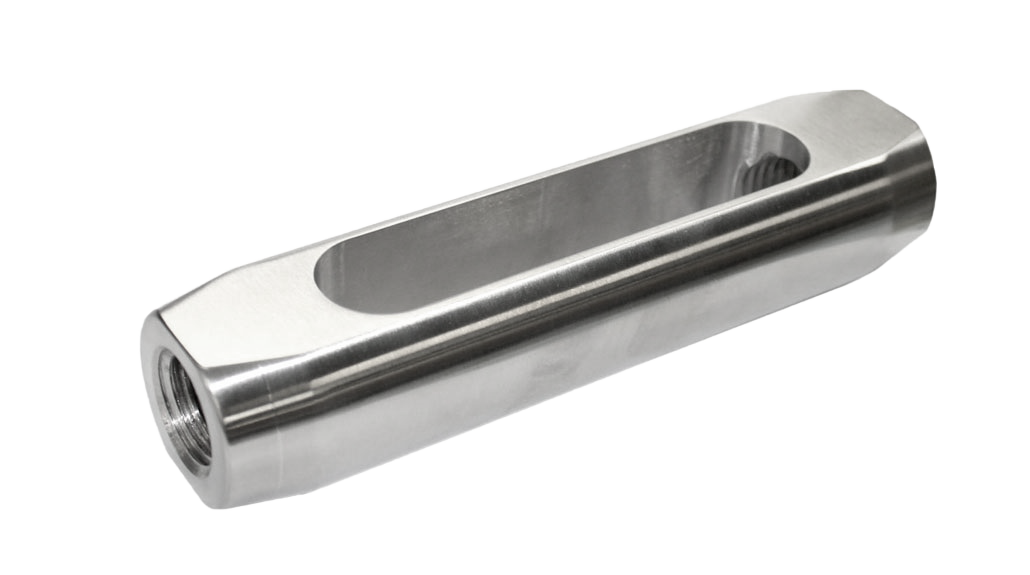

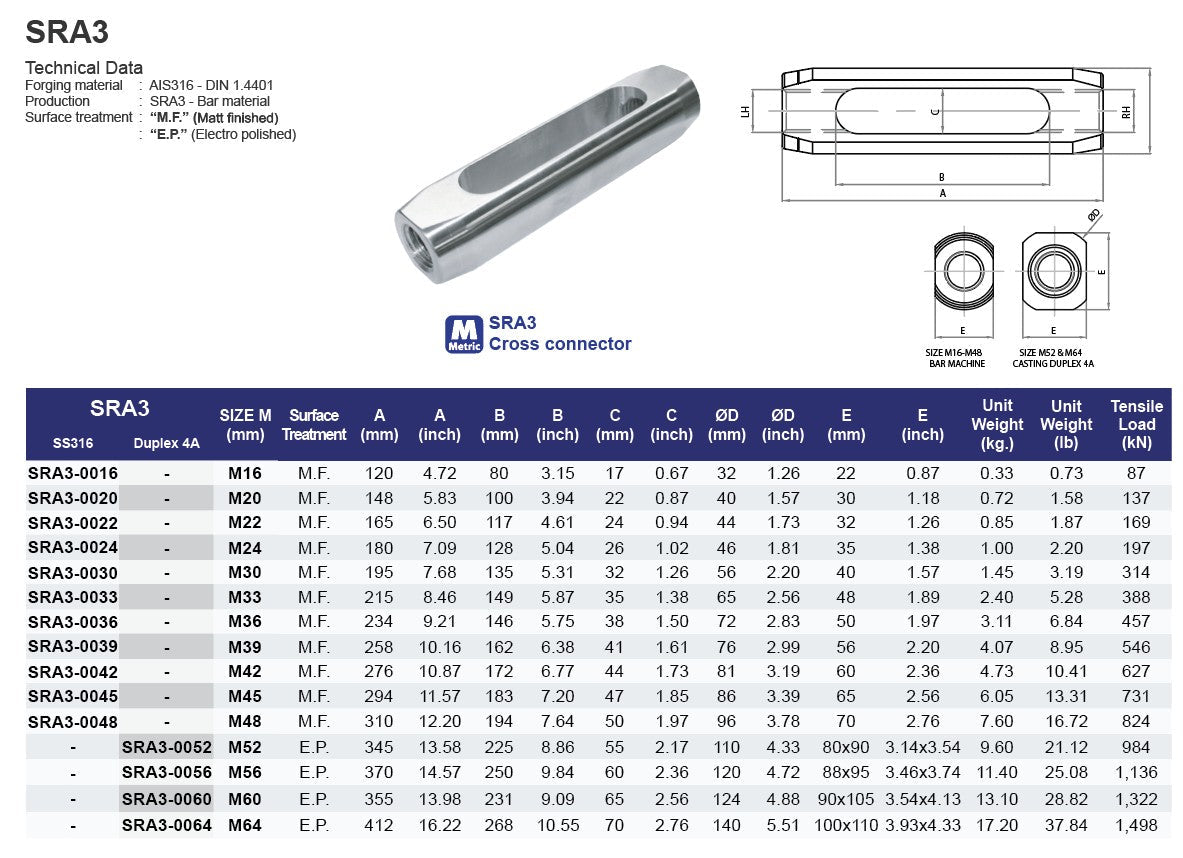

Technical Data:
Forging Material : DUPLEX (GRADE 4A)
Production: Bar material
Surface Treatment: "M.F." (Matte finished) “E.P.” (Electro polished)

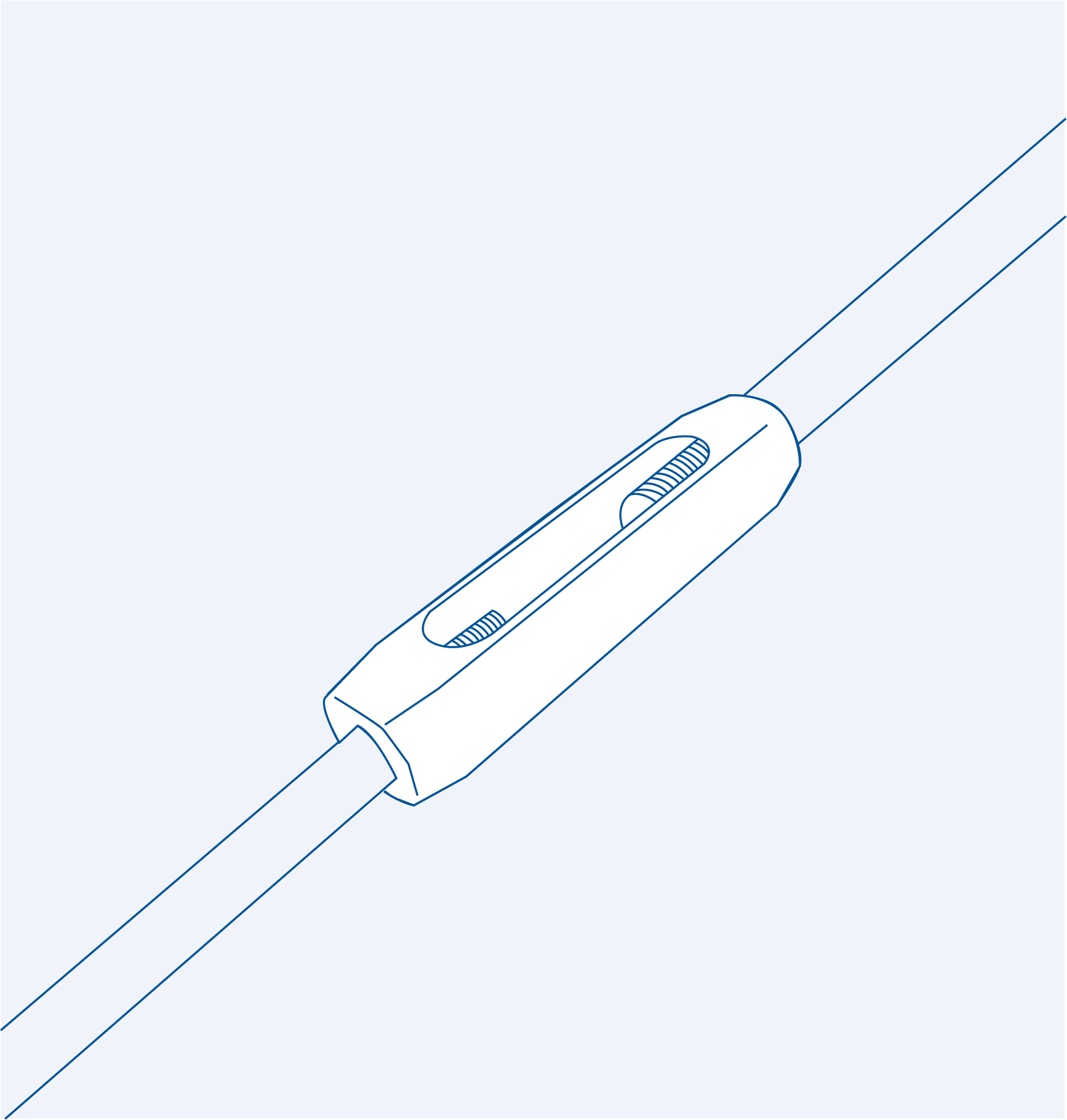

Model
SRA3
Cross connector
Duplex 4A ss
| Duplex 4A | SIZE M (mm) | Surface Treatment | A (mm) | B (mm) | C (mm) | ØD (mm) | E (mm) | Unit weight (kgs) | Tensile Load (kN) |
|---|---|---|---|---|---|---|---|---|---|
| SRA30052 | M52 | E.P. | 345 | 225 | 55 | 110 | 80x90 | 9.60 | 984 |
| SRA30056 | M56 | E.P. | 370 | 250 | 60 | 120 | 88x95 | 11.40 | 1,136 |
| SRA30060 | M60 | E.P. | 355 | 231 | 65 | 124 | 90x105 | 13.10 | 1,322 |
| SRA30064 | M64 | E.P. | 412 | 268 | 70 | 140 | 100x110 | 17.20 | 1,498 |
| Duplex 4A | SIZE M (mm) | Surface Treatment | A (inch) | B (inch) | C (inch) | ØD (inch) | E (inch) | Unit weight (lb) | Tensile Load (kN) |
|---|---|---|---|---|---|---|---|---|---|
| SRA30052 | M52 | E.P. | 13.58 | 8.86 | 2.17 | 4.33 | 3.14x3.54 | 21.12 | 984 |
| SRA30056 | M56 | E.P. | 14.57 | 9.84 | 2.36 | 4.72 | 3.46x3.74 | 25.08 | 1,136 |
| SRA30060 | M60 | E.P. | 13.98 | 9.09 | 2.56 | 4.88 | 3.54x4.13 | 28.82 | 1,322 |
| SRA30064 | M64 | E.P. | 16.22 | 10.55 | 2.76 | 5.51 | 3.93x4.33 | 37.84 | 1,498 |
