Description
Technical Data:
Casting Material : AIS316-DIN 1.4408
Production : SPE/DOUBLE/EP
Body - Cast
D-Ring - Bar
Surface Treatment: “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load
DATA SHEET DOWNLOAD

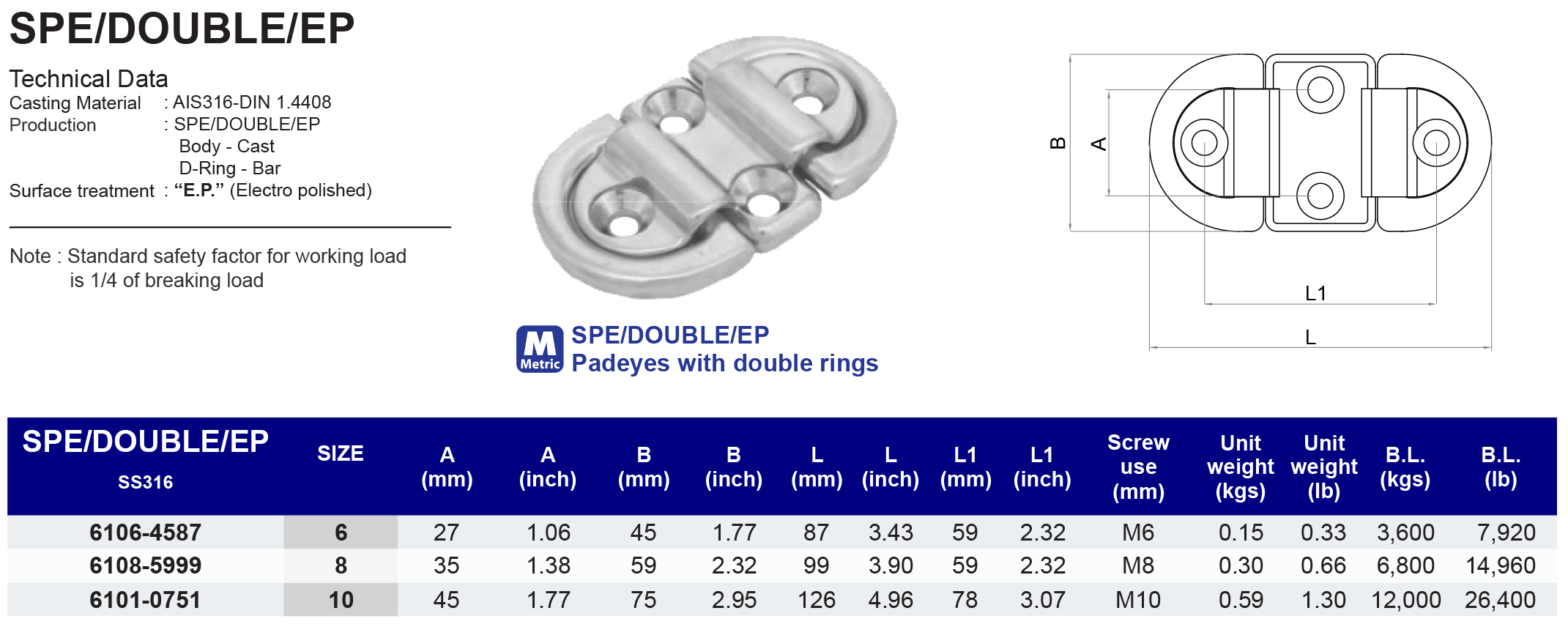

Model
SPE/DOUBLE/EP

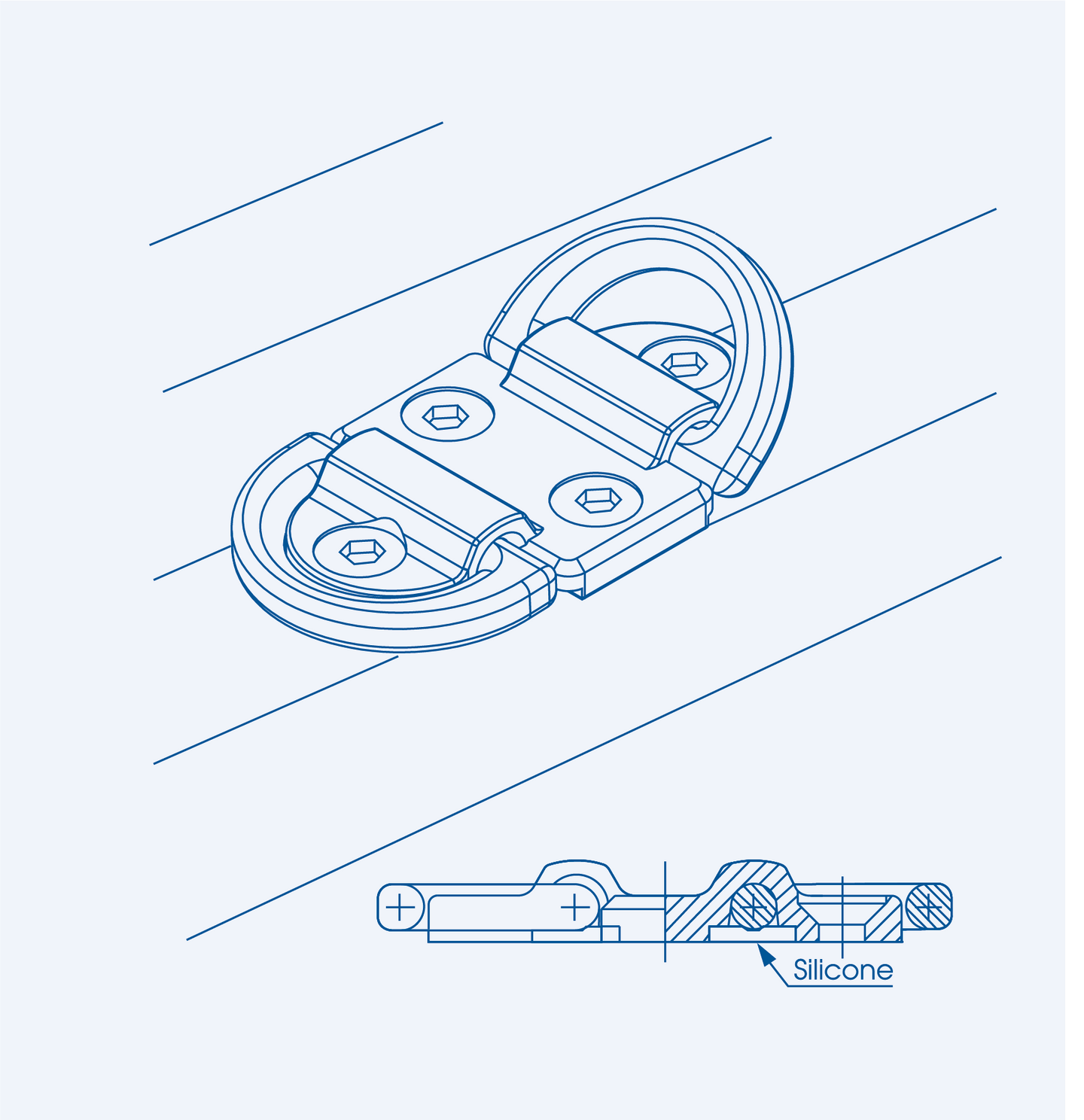

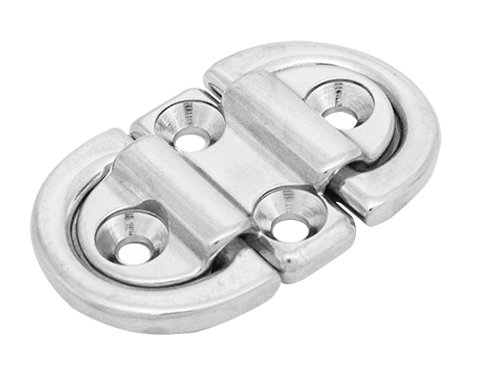

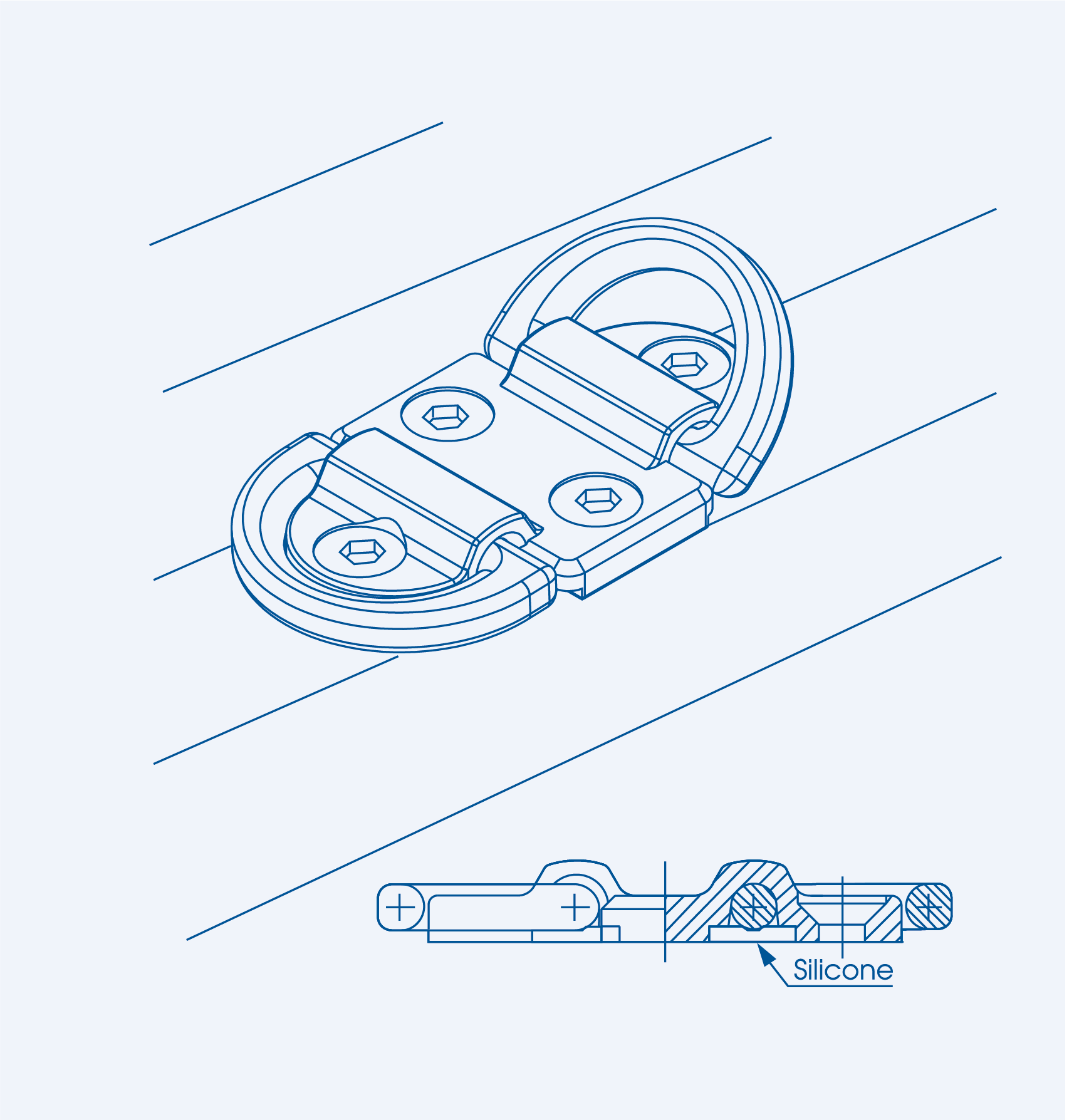

Padeyes with double rings
316 ss
| SS316 | Size | A (mm) | B (mm) | L (mm) | L1 (mm) | Screw use (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|---|
| 61064587 | 6 | 27 | 45 | 87 | 59 | M6 | 0.15 | 3,600 |
| 61085999 | 8 | 35 | 59 | 99 | 59 | M8 | 0.30 | 6,800 |
| 61010751 | 10 | 45 | 75 | 126 | 78 | M10 | 0.59 | 12,000 |
| SS316 | Size | A (inch) | B (inch) | L (inch) | L1 (inch) | Screw use (mm) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|---|
| 61064587 | 1/4" | 1.06 | 1.77 | 3.43 | 2.32 | M6 | 0.33 | 7,920 |
| 61085999 | 5/16" | 1.38 | 2.32 | 3.9 | 2.32 | M8 | 0.66 | 14,960 |
| 61010751 | 3/8" | 1.77 | 2.95 | 4.96 | 3.07 | M10 | 1.30 | 26,400 |
