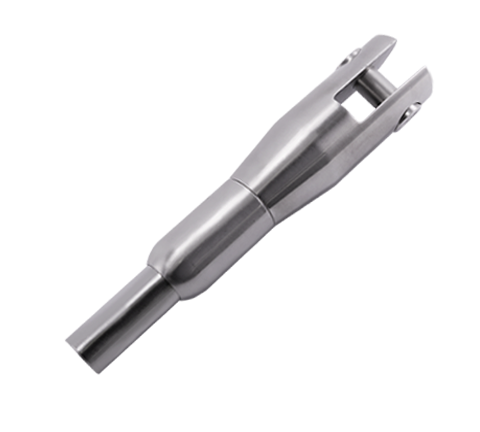

SHB/TS Hybrid terminal swage

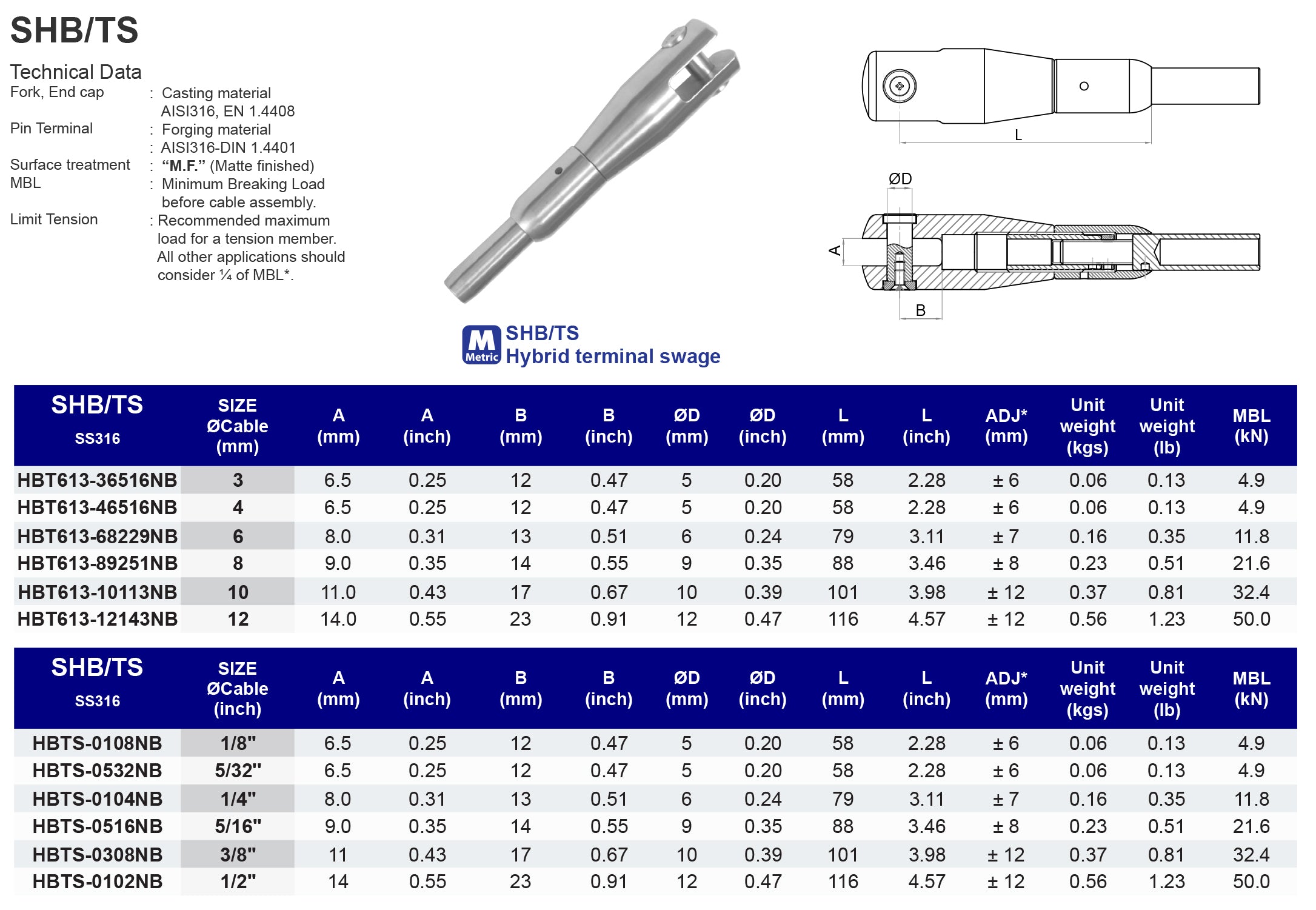

Technical Data:

Fork, End cap  : Casting material
                         AISI316, EN 1.4408
Pin Terminal :   Forging material                                                                                                                   AISI316-DIN 1.4401

Surface Treatment: "M.F." (Matte finished)

MBL   :  Minimum Breaking Load
             before cable assembly.

Limit Tension :  Recommended maximum
load for a tension member.
All other applications should
consider ¼ of MBL*.
