Description
Technical Data
Casting material : AISI316 - DIN 1.4408
Forging material : AISI316 - DIN 1.4401
Production : Shackle - Cast
Surface treatment : “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load
DATA SHEET DOWNLOAD
Model
SFP3606

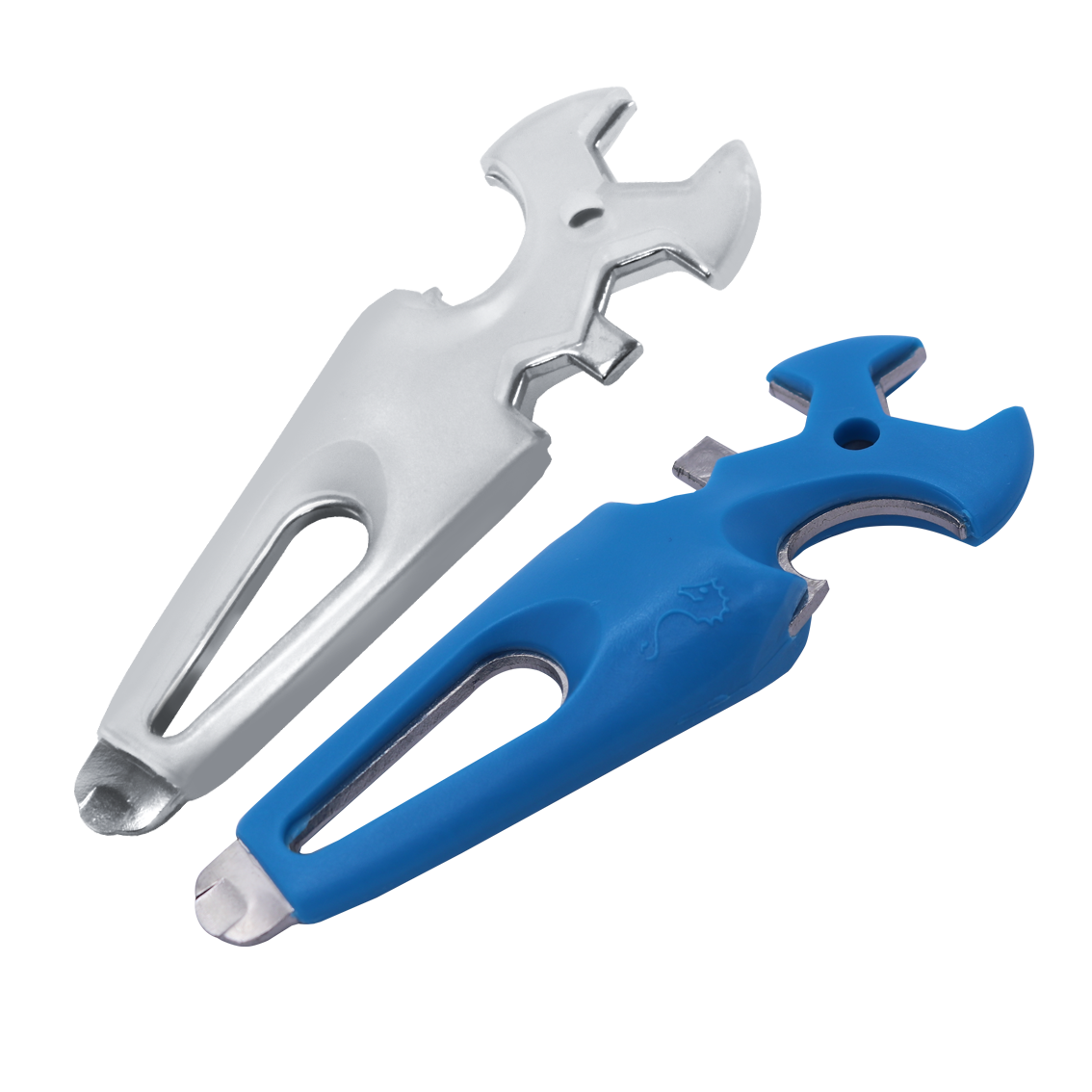

Shackle key with plastic cover (Blue,white)
316 ss

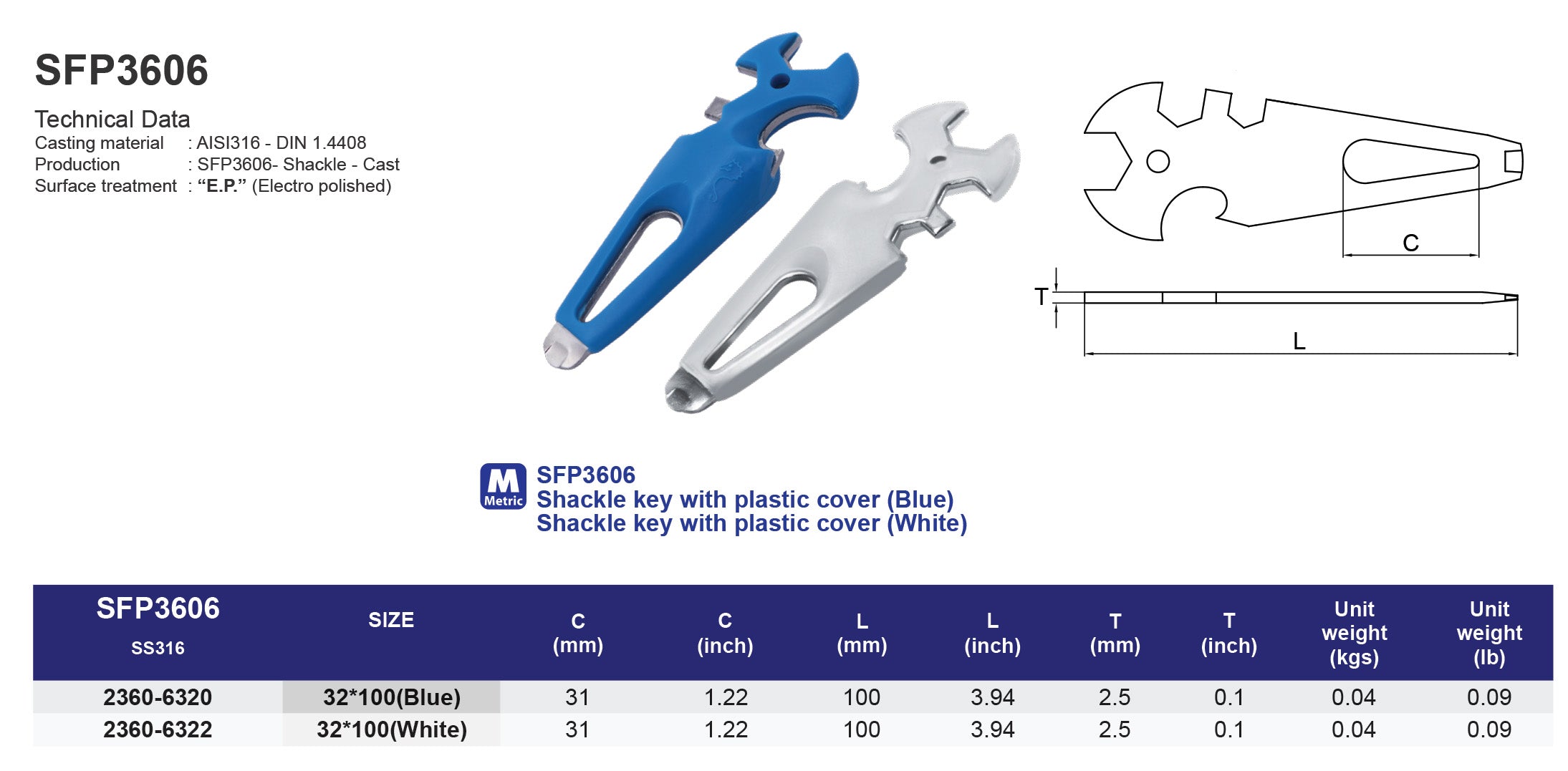

| SS316 | Size | C (mm) | L (mm) | T (mm) | Unit weight (kgs) |
|---|---|---|---|---|---|
| 2360-6320 | 32*100(Blue) | 31 | 100 | 2.5 | 0.04 |
| 2360-6322 | 32*100(White) | 31 | 100 | 2.5 | 0.04 |
| SS316 | Size | C (inch) | L (inch) | T (inch) | Unit weight (lb) |
|---|---|---|---|---|---|
| 2360-6320 | 32*100(Blue) | 1.22 | 3.94 | 0.1 | 0.09 |
| 2360-6322 | 32*100(White) | 1.22 | 3.94 | 0.1 | 0.09 |
