SFNUT934-L-R Left and Right Hand Thread

SKU: 29341400

Size (mm): M4
Price:

Login to view the price.

Stock:
Login to view stock.

Description

Technical Data:
Forging Material:
AISI 304 - DIN 1.4301
AISI 316 - DIN 1.4401
Production:
Machined
Surface Treatment:
Electro Polished / Passivated

DATA SHEET DOWNLOAD


Model

SFNUT934_R

Right Hand Thread
316 ss

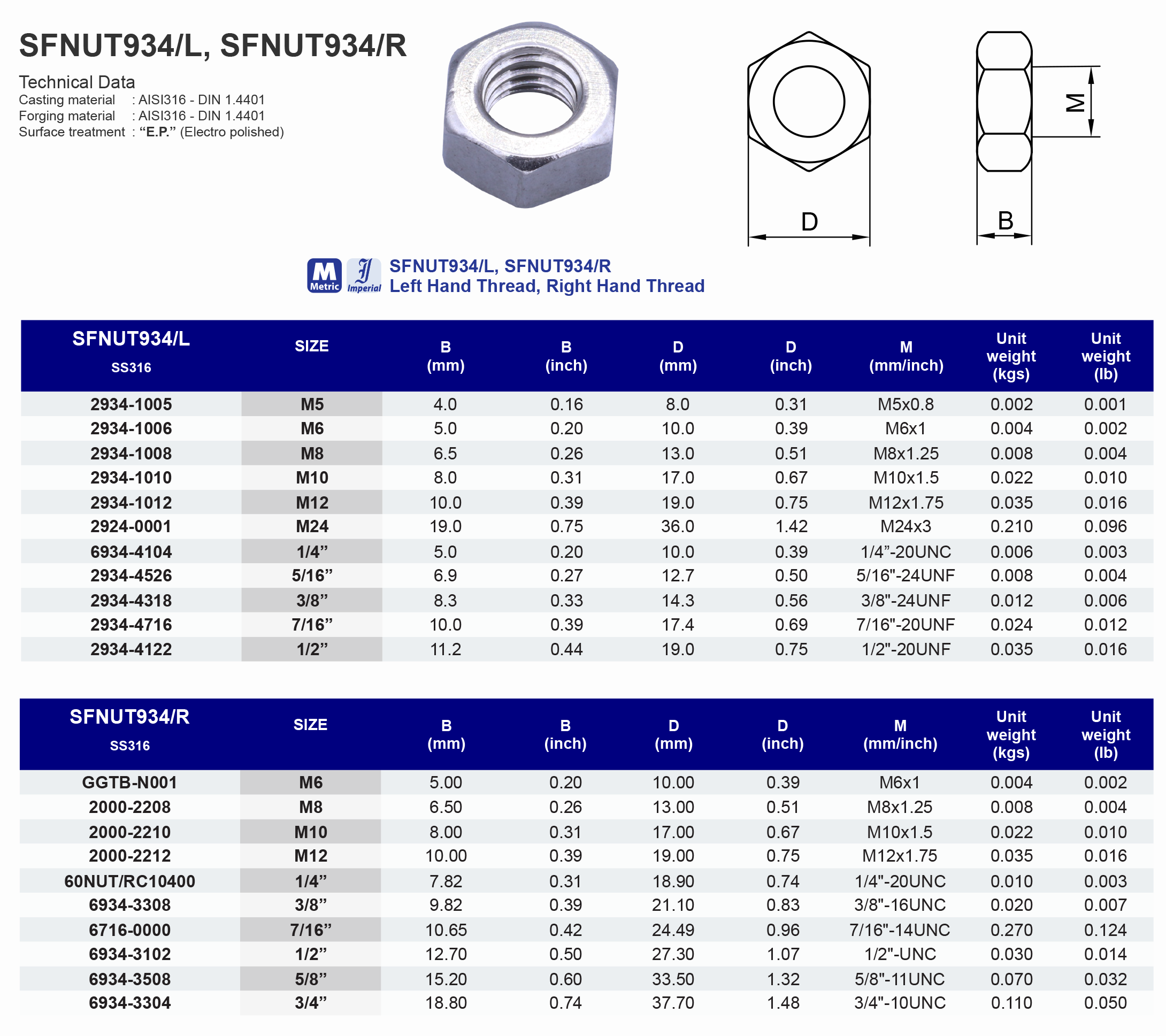

SFNUT934_R drawing

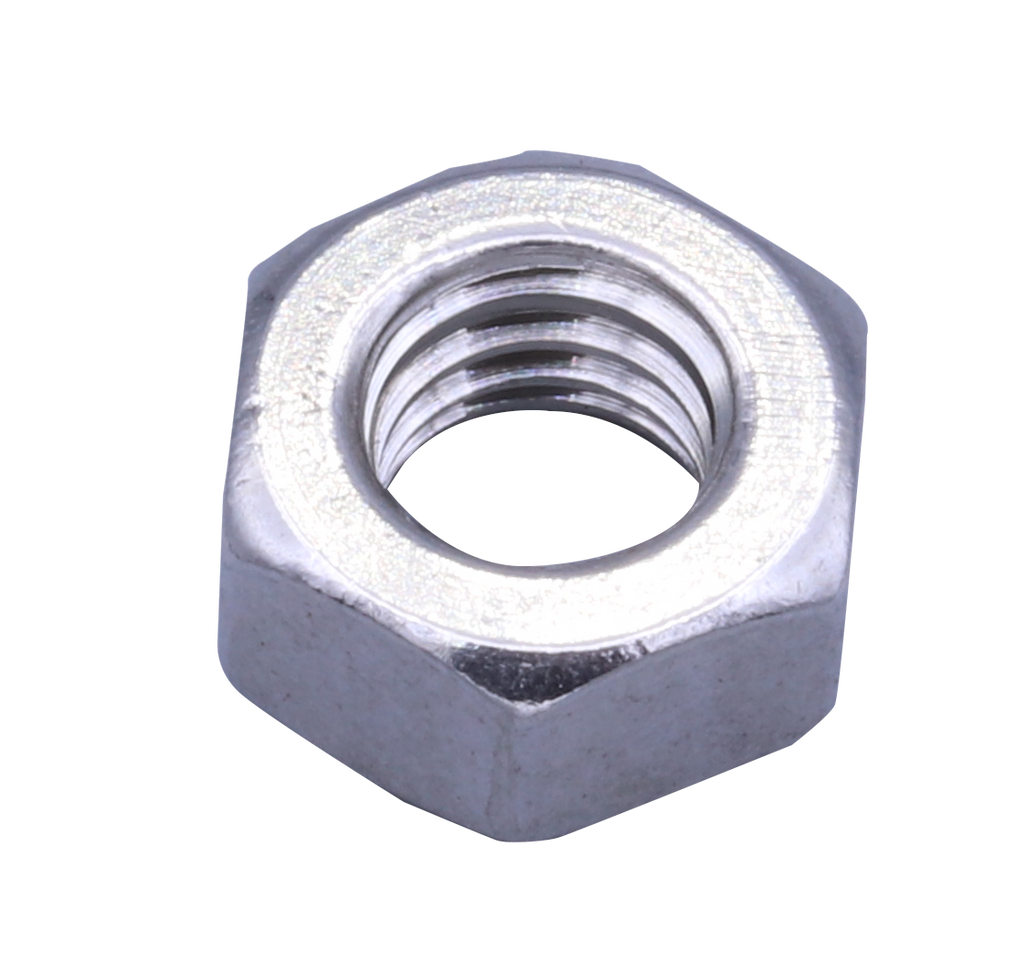

SFNUT934_R image
SS316SizeB(mm)D(mm)S.W.(mm)Unit weight (kgs)
29341400M43.057.666.890.001
29341005M53.858.797.890.001
29341006M64.8511.059.890.002
29341008M86.3214.3812.870.004
29341010M107.8218.9016.860.010
29341012M129.8221.1018.830.016
29341014M1410.6524.4921.830.020
29341016M1612.7027.3023.800.040
29341020M2015.2033.5029.400.060
69240022M2218.8037.7032.700.080
29240001M2418.4040.5035.500.096
69344034M3023.0052.0045.000.200
SS316SizeB(inch)D(inch)S.W.(inch)Unit weight (Ib)
293441041/4-20UNC5.0011.20.390.004
293445165/16-18UNC6.2013.50.460.008
293443083/8-16UNC7.8715.80.540.022
293441121/2-13UNC11.0021.40.750.035
293445085/8-11UNC14.0027.00.930.088
293443043/4-10UNC16.5031.81.090.132
693447087/8-9UNC18.8037.71.290.176
692401181.1/8-10UNC22.0045.71.610.440
