Description
Technical Data:
Casting Material:
AISI304 - DIN 1.4308
AISI316 - DIN 1.4408
Forging Material:
AISI 304 - DIN 1.4301
AISI 316 - DIN 1.4401
Production:
Frame Cast
Eye Forged
Surface Treatment:
Electro Polished / Passivated

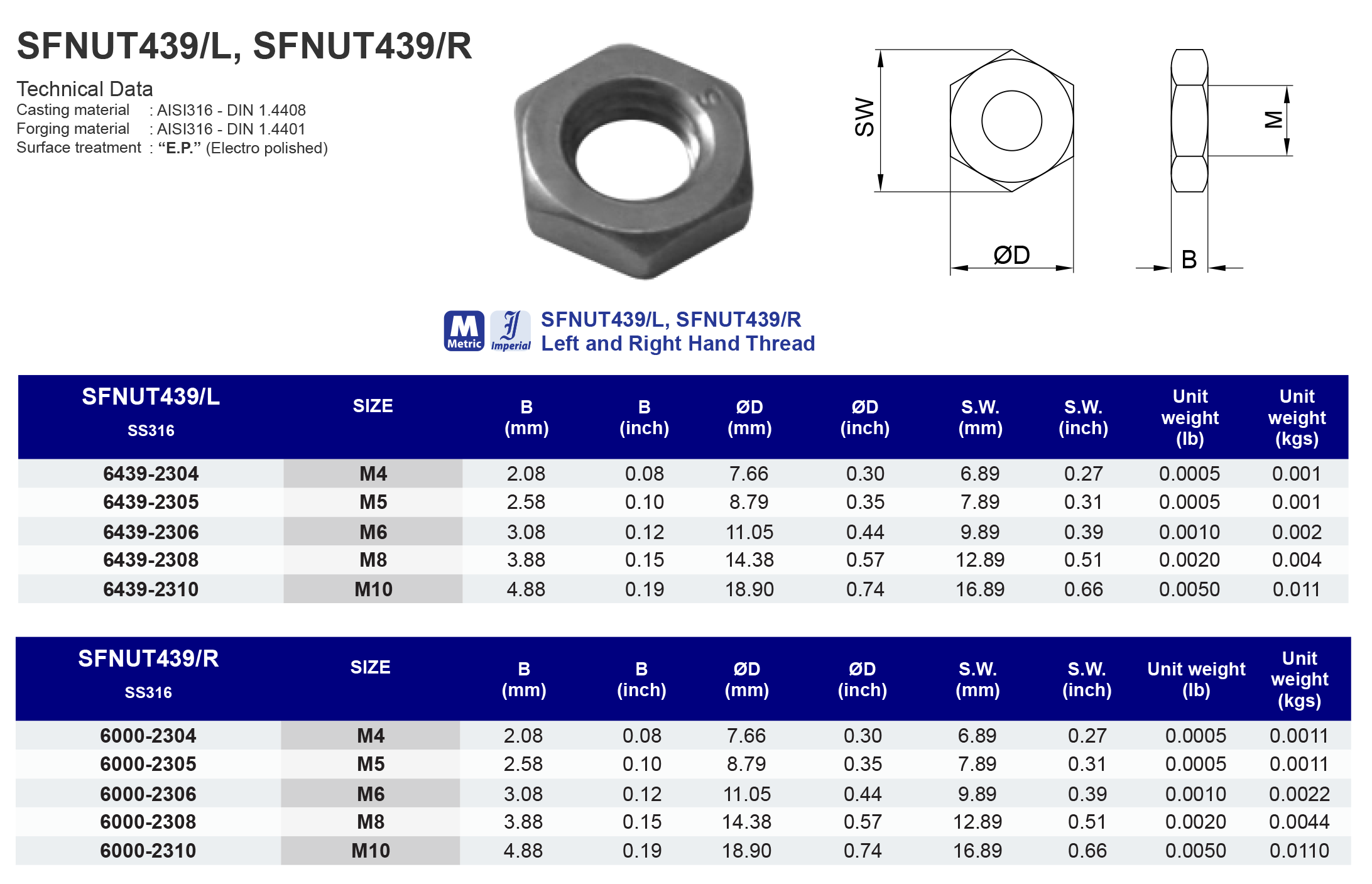

Model
SFNUT439-L-R
Left Hand Thread
316 ss
| SS316 | Size | B(mm) | ØD(mm) | S.W.(mm) | Unit weight (kgs) |
|---|---|---|---|---|---|
| 64392304 | M4(L) | 2.08 | 7.66 | 6.89 | 0.0005 |
| 64392305 | M5(L) | 2.58 | 8.79 | 7.89 | 0.0005 |
| 64392306 | M6(L) | 3.08 | 11.05 | 9.89 | 0.0010 |
| 64392308 | M8(L) | 3.88 | 14.38 | 12.89 | 0.0020 |
| 64392310 | M10(L) | 4.88 | 18.90 | 16.89 | 0.0050 |
| 60002304 | M4(R) | 2.08 | 7.66 | 6.89 | 0.0005 |
| 60002305 | M5(R) | 2.58 | 8.79 | 7.89 | 0.0005 |
| 60002306 | M6(R) | 3.08 | 11.05 | 9.89 | 0.0010 |
| 60002308 | M8(R) | 3.88 | 14.38 | 12.89 | 0.0020 |
| 60002310 | M10(R) | 4.88 | 18.9 | 16.89 | 0.0050 |
| SS316 | Size | B(inch) | ØD(inch) | S.W.(inch) | Unit weight(Ib) |
|---|---|---|---|---|---|
| 64392304 | M4(L) | 0.08 | 0.30 | 0.27 | 0.0011 |
| 64392305 | M5(L) | 0.1 | 0.35 | 0.31 | 0.0011 |
| 64392306 | M6(L) | 0.12 | 0.44 | 0.39 | 0.0022 |
| 64392308 | M8(L) | 0.15 | 0.57 | 0.51 | 0.0044 |
| 64392310 | M10(L) | 0.19 | 0.74 | 0.66 | 0.0110 |
| 60002304 | M4(R) | 0.08 | 0.30 | 0.27 | 0.0011 |
| 60002305 | M5(R) | 0.10 | 0.35 | 0.31 | 0.0011 |
| 60002306 | M6(R) | 0.12 | 0.44 | 0.39 | 0.0022 |
| 60002308 | M8(R) | 0.15 | 0.57 | 0.51 | 0.0044 |
| 60002310 | M10(R) | 0.19 | 0.74 | 0.66 | 0.0110 |
