Description
Technical Data
Forging Material : AISI304 - DIN 1.4301
Production : Hook - Forged
Surface Treatment : “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load
DATA SHEET DOWNLOAD

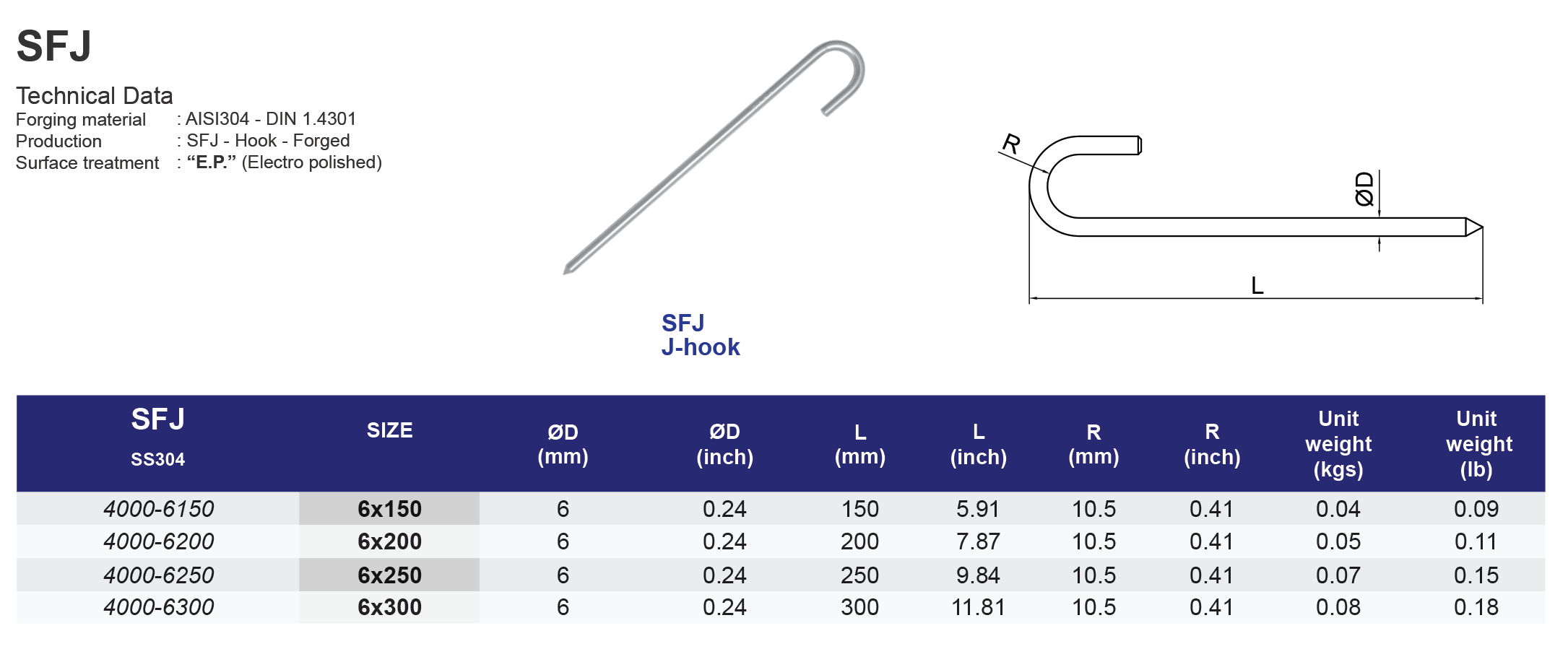

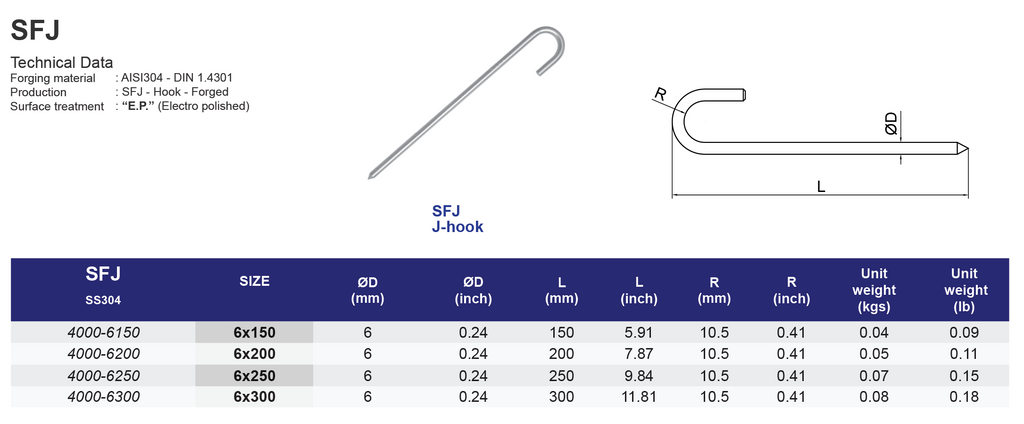

Model
SFJ

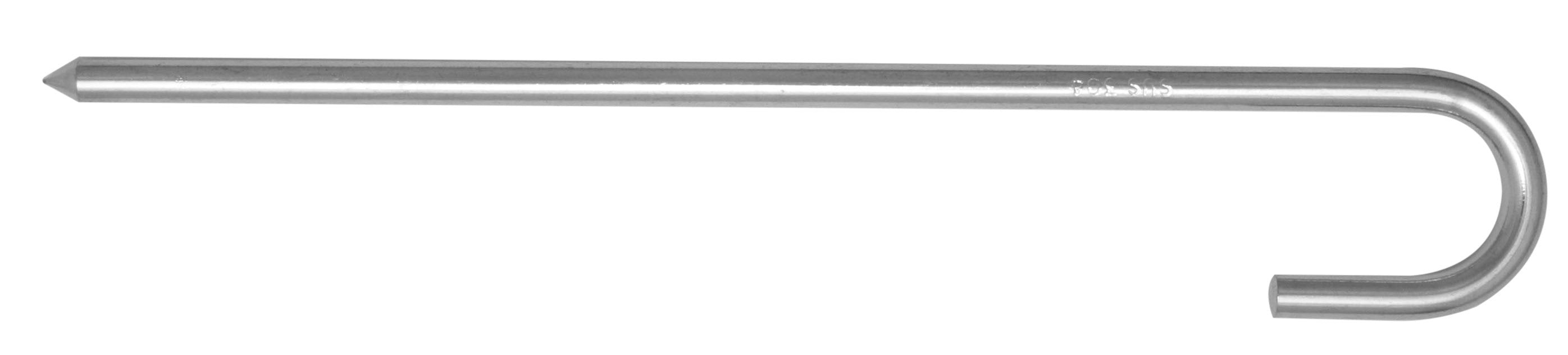

J-hook
304 ss
| SS304 | Size | ØD (mm) | L (mm) | R (mm) | Unit weight (kgs) |
|---|---|---|---|---|---|
| 4000-6150 | 6x150 | 6 | 150 | 10.5 | 0.04 |
| 4000-6200 | 6x200 | 6 | 200 | 10.5 | 0.05 |
| 4000-6250 | 6x250 | 6 | 250 | 10.5 | 0.07 |
| 4000-6300 | 6x300 | 6 | 300 | 10.5 | 0.08 |
| SS304 | Size | ØD (inch) | L (inch) | R (inch) | Unit weight (lb) |
|---|---|---|---|---|---|
| 4000-6150 | 6x150 | 0.24 | 5.91 | 0.41 | 0.09 |
| 4000-6200 | 6x200 | 0.24 | 7.87 | 0.41 | 0.11 |
| 4000-6250 | 6x250 | 0.24 | 9.84 | 0.41 | 0.15 |
| 4000-6300 | 6x300 | 0.24 | 11.81 | 0.41 | 0.18 |
