Description
Technical Data:
Forging material : AISI304 - DIN 1.4301
Production : SFHA/01 - Hook - Forged
Surface treatment : “E.P.” (Electro polished)
DATA SHEET DOWNLOAD
Model
SFHA_01

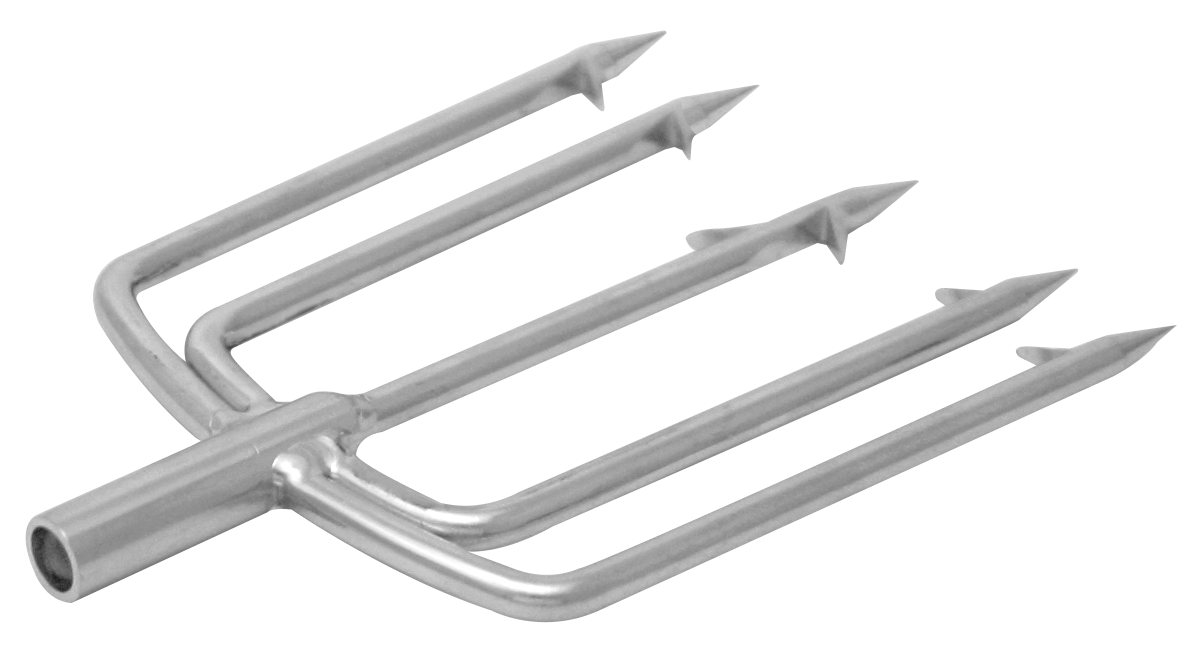

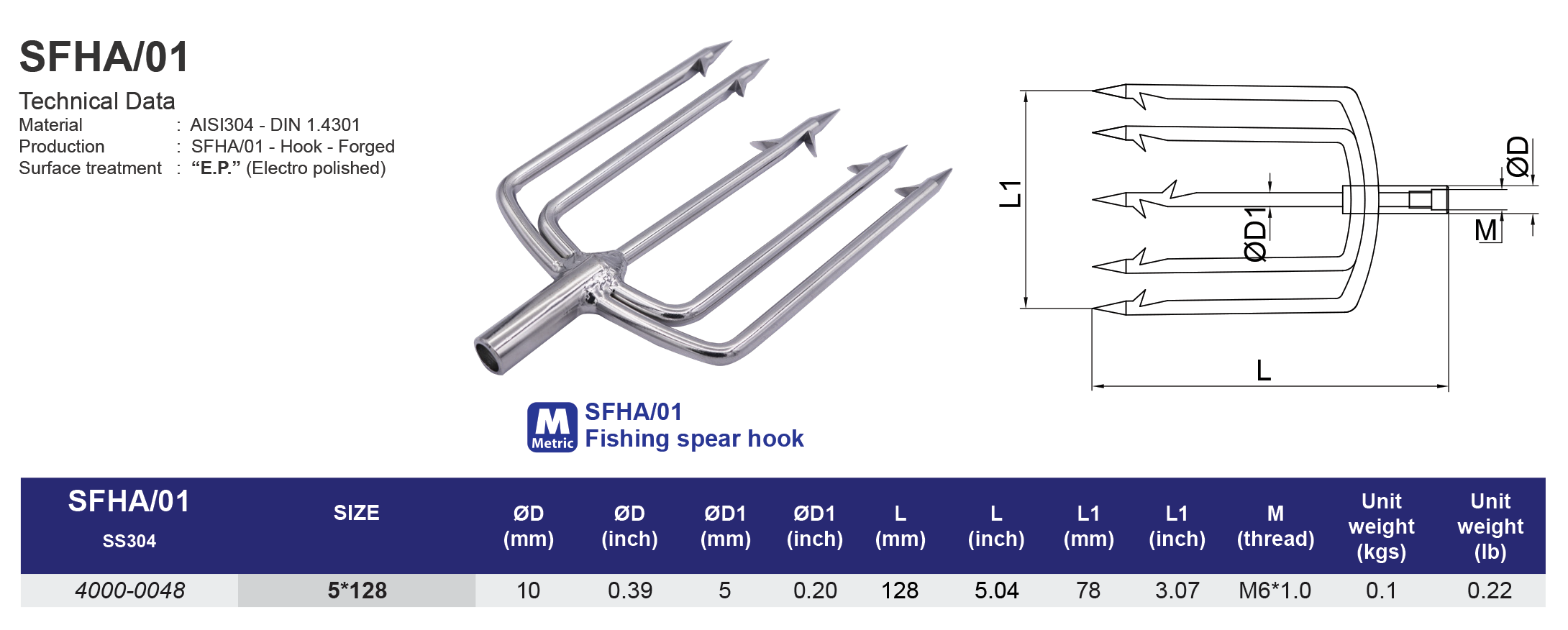

Fishing spear hook
304 ss



SS304 | Size | øD(mm) | øD1(mm) | L(mm) | L1(mm) | L1(thread) | Weight(kgs) |
---|---|---|---|---|---|---|---|
40000048 | 5*128 | 10 | 5 | 128 | 78 | M6*1.0 | 0.10 |
SS304 | Size | øD(inch) | øD1(inch) | L(inch) | L1(inch) | L1(thread) | Weight(Ib) |
---|---|---|---|---|---|---|---|
40000048 | 5*128 | 0.39 | 0.20 | 5.04 | 3.07 | M6*1.0 | 0.22 |
