Description
Technical Data
Forging Material : AISI304 - DIN 1.4301
Production : Bar - Forged
Surface Treatment : “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load
DATA SHEET DOWNLOAD

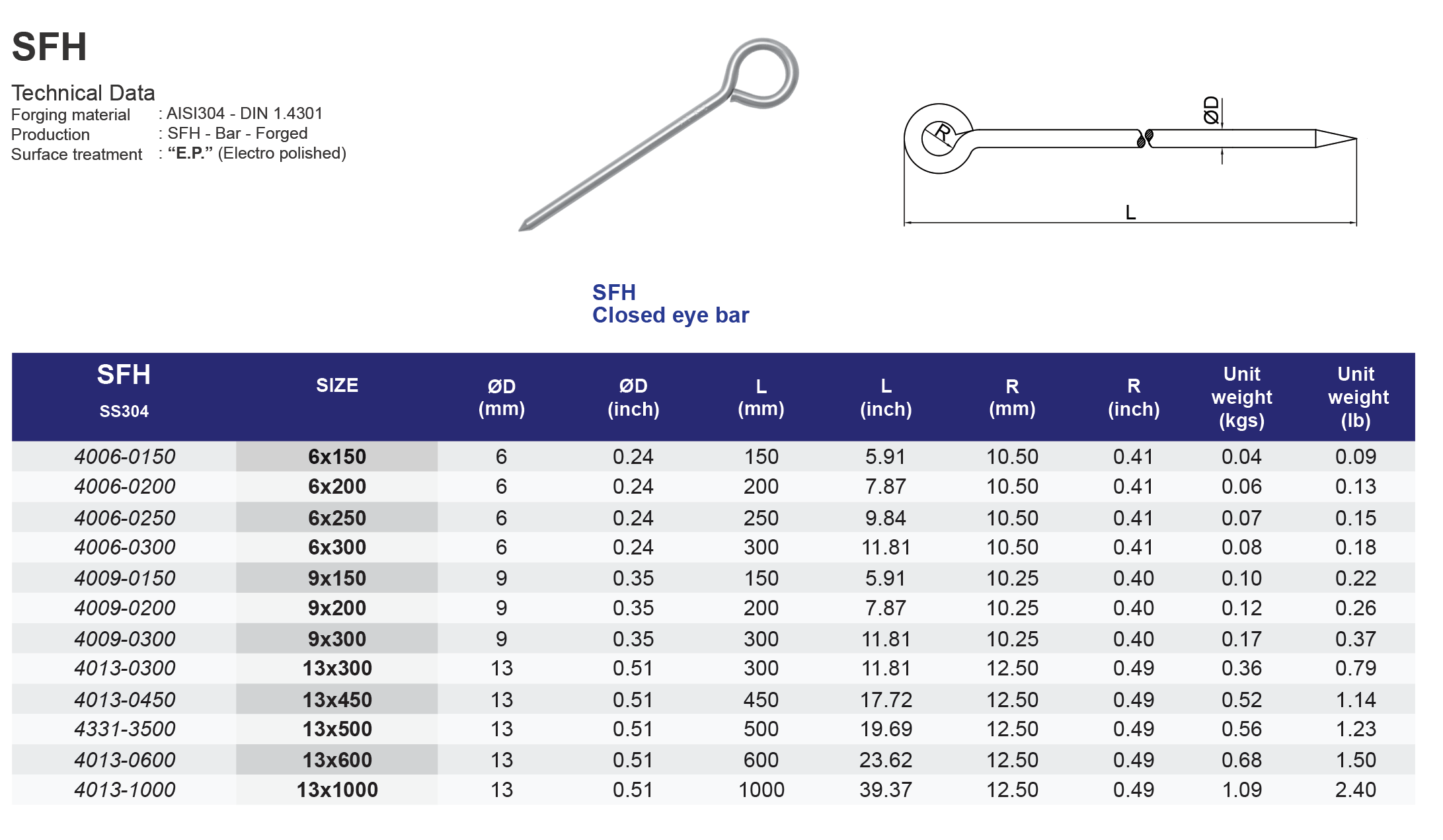

Model
SFH

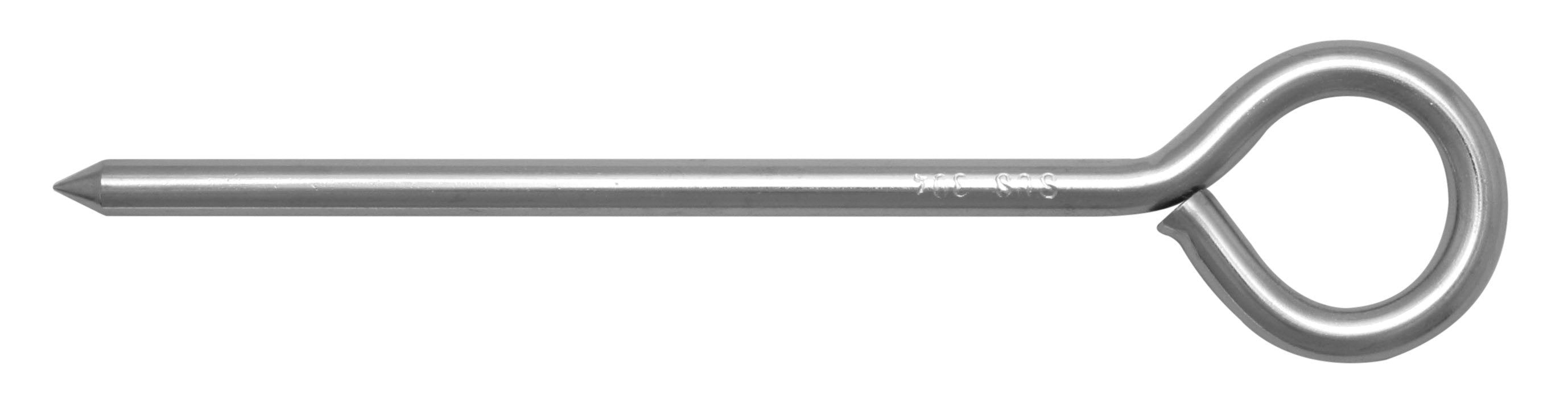

Closed Eye Bar
304 ss
| SS304 | Size | ØD(mm) | L(mm) | R(mm) | Unit weight (kgs) |
|---|---|---|---|---|---|
| 40060150 | 6150 | 6 | 150 | 10.50 | 0.04 |
| 40060200 | 6200 | 6 | 200 | 10.50 | 0.06 |
| 40060250 | 6250 | 6 | 250 | 10.50 | 0.07 |
| 40060300 | 6300 | 6 | 300 | 10.50 | 0.08 |
| 40090150 | 9150 | 9 | 150 | 10.25 | 0.10 |
| 40090200 | 9200 | 9 | 200 | 10.25 | 0.12 |
| 40090300 | 9300 | 9 | 300 | 10.25 | 0.17 |
| 40130300 | 13300 | 13 | 300 | 12.50 | 0.36 |
| 40130450 | 13450 | 13 | 450 | 12.50 | 0.52 |
| 43313500 | 13500 | 13 | 500 | 12.50 | 0.56 |
| 40130600 | 13600 | 13 | 600 | 12.50 | 0.68 |
| 40131000 | 131000 | 13 | 1000 | 12.50 | 1.09 |
| SS304 | Size | ØD(inch) | L(inch) | R(inch) | Unit weight (Ib) |
|---|---|---|---|---|---|
| 40060150 | 6150 | 0.24 | 5.91 | 0.41 | 0.09 |
| 40060200 | 6200 | 0.24 | 7.87 | 0.41 | 0.13 |
| 40060250 | 6250 | 0.24 | 9.84 | 0.41 | 0.15 |
| 40060300 | 6300 | 0.24 | 11.81 | 0.41 | 0.18 |
| 40090150 | 9150 | 0.35 | 5.91 | 0.40 | 0.22 |
| 40090200 | 9200 | 0.35 | 7.87 | 0.40 | 0.26 |
| 40090300 | 9300 | 0.35 | 11.81 | 0.40 | 0.37 |
| 40130300 | 13300 | 0.51 | 11.81 | 0.49 | 0.79 |
| 40130450 | 13450 | 0.51 | 17.72 | 0.49 | 1.14 |
| 43313500 | 13500 | 0.51 | 19.69 | 0.49 | 1.23 |
| 40130600 | 13600 | 0.51 | 23.62 | 0.49 | 1.50 |
| 40131000 | 131000 | 0.51 | 39.37 | 0.49 | 2.40 |
