Description
Technical Data:
Casting Material:
AISI304 - DIN 1.4308
Forging Material:
AISI304 - DIN 1.4301
Production:
SFG216017 - Holder - Pipe
Body - Cast
Surface Treatment:
Mirror polished / Passivated
Model
SFG216017

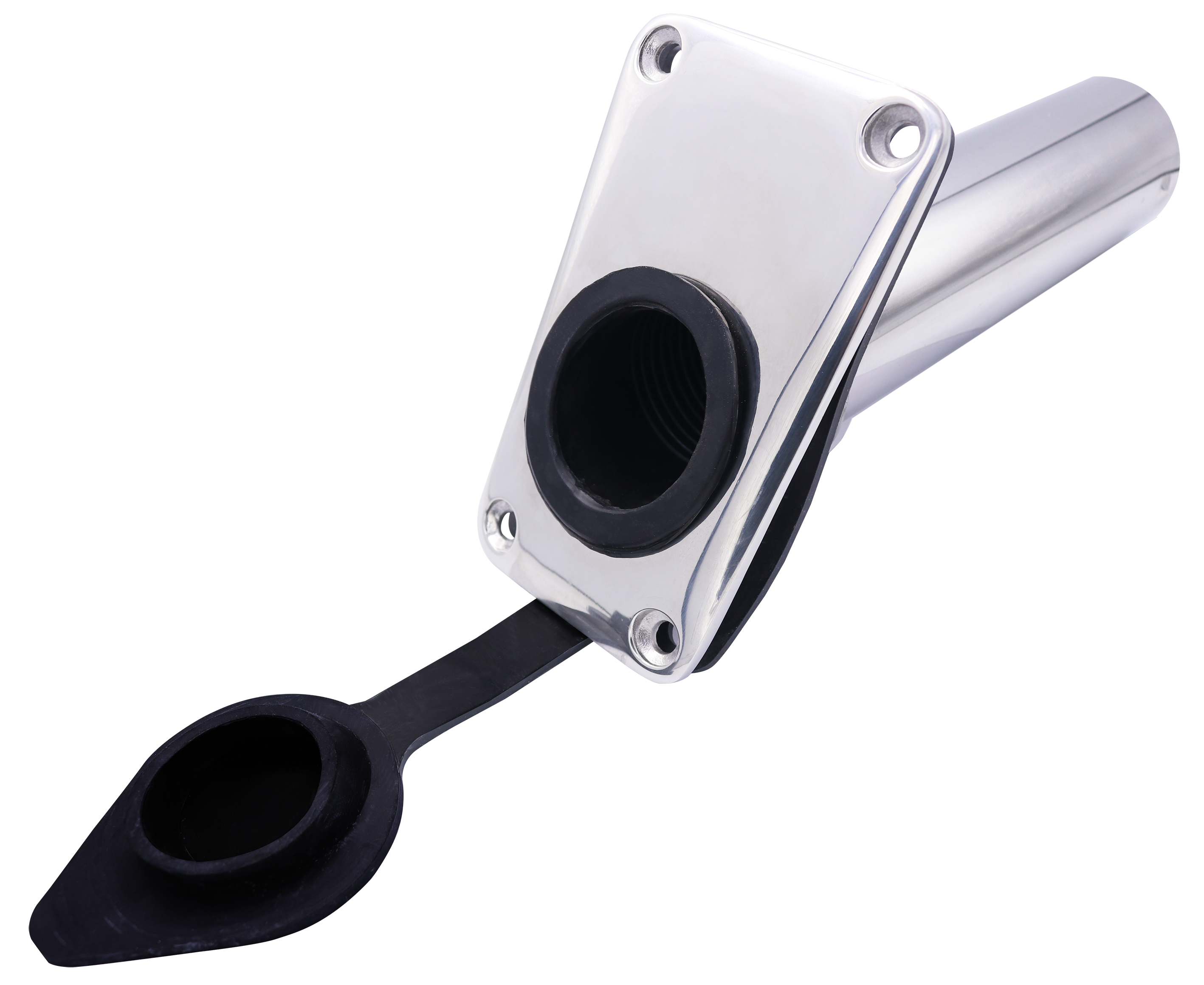

Flush Mount Rod Holder
304 ss

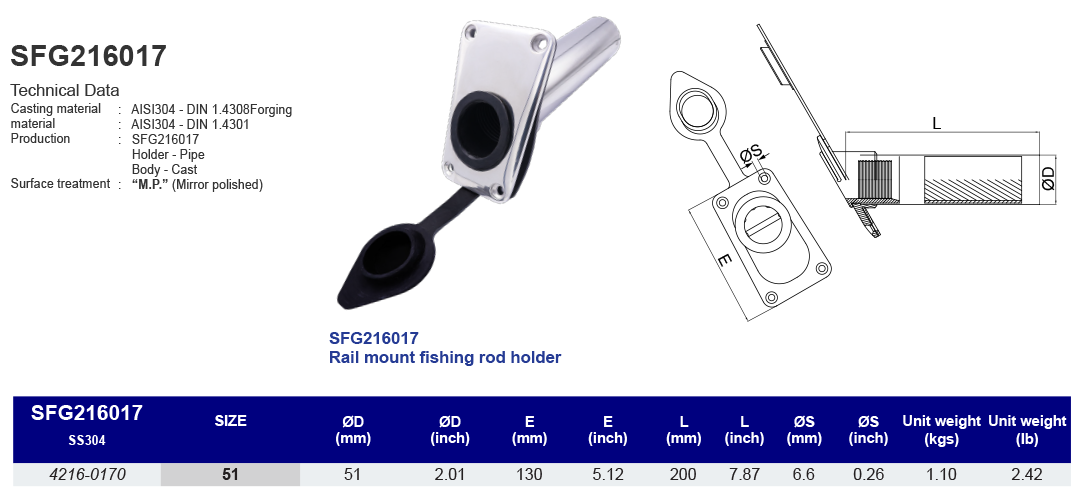

| SS304 | Size | ØD(mm) | E(mm) | L(mm) | ØS(mm) | Unit Weight(kgs) |
|---|---|---|---|---|---|---|
| 42160170 | 51 | 51 | 130 | 200 | 6.6 | 1.10 |
| SS304 | Size | ØD(inch) | E(inch) | L(inch) | ØS(inch) | Unit Weight(Ib) |
|---|---|---|---|---|---|---|
| 42160170 | 51 | 2.01 | 5.12 | 7.87 | 0.26 | 2.42 |
