Description
Technical Data:
Casting Material:
AISI304 - DIN 1.4308
Forging Material:
AISI304 - DIN 1.4301
Production:
SFG216016 - Holder - Pipe Body - Forged
Surface Treatment:
Mirror polished / Passivated
DATA SHEET DOWNLOAD

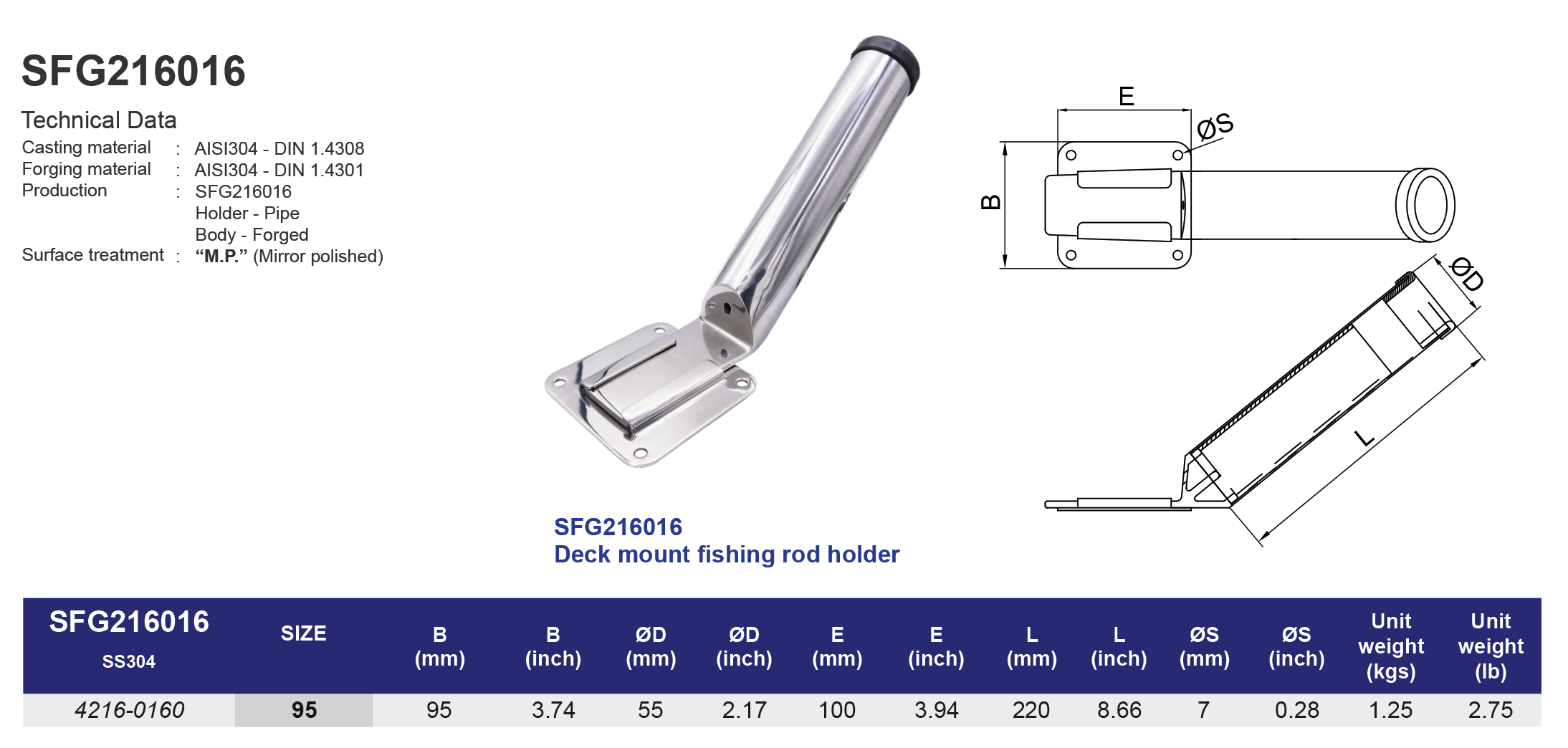

Model
SFG216016

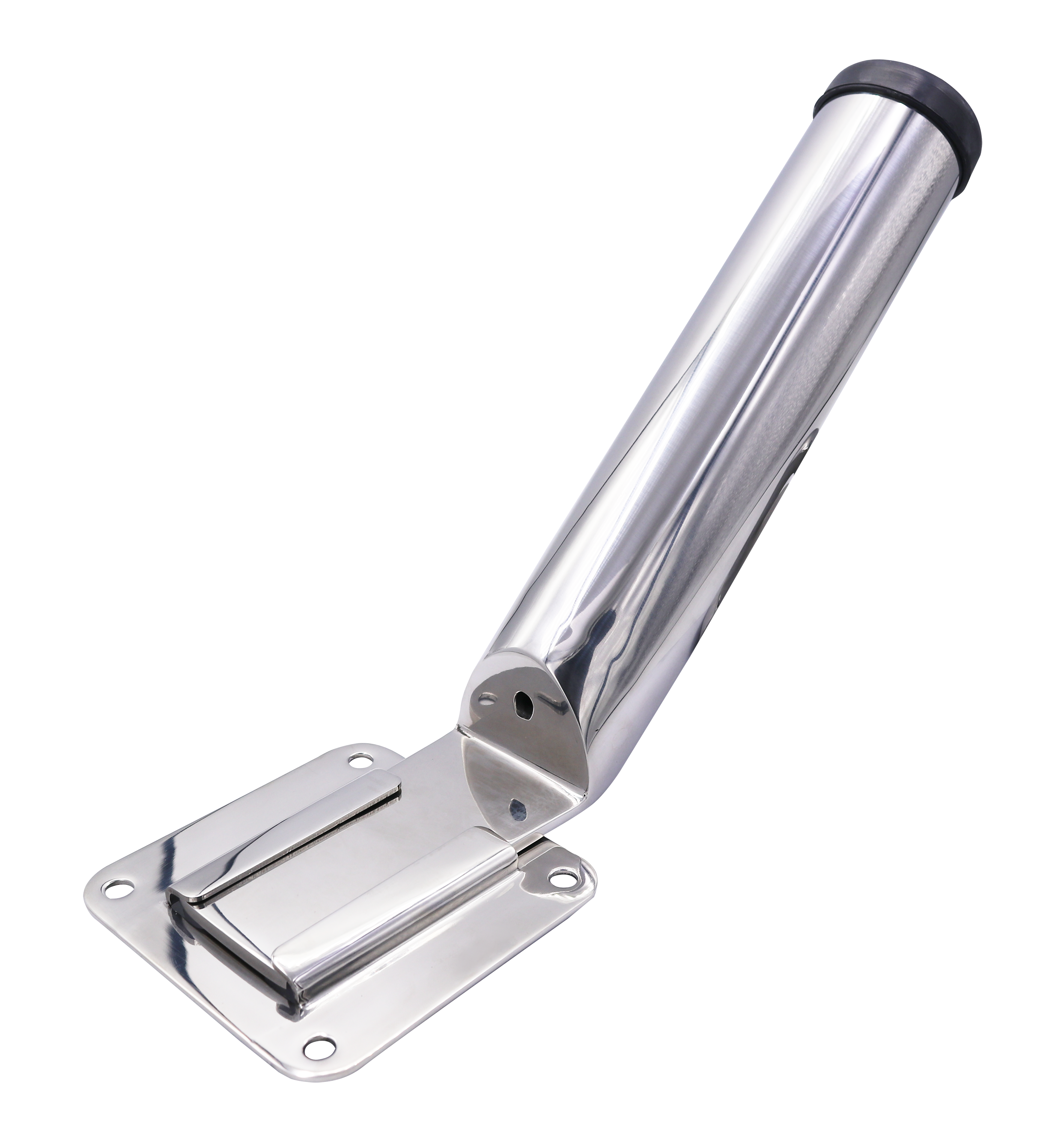

Removable rod holder
304 ss
| SS304 | Size | B(mm) | ØD(mm) | E(mm) | L(mm) | ØS(mm) | Weight(kgs) |
|---|---|---|---|---|---|---|---|
| 42160160 | 95 | 95 | 50.8 | 100 | 220 | 7 | 1.25 |
| SS304 | Size | B(inch) | ØD(inch) | E(inch) | L(inch) | ØS(inch) | Weight(Ib) |
|---|---|---|---|---|---|---|---|
| 42160160 | 95 | 3.74 | 2.00 | 3.94 | 8.66 | 0.28 | 2.75 |
