Description
Technical Data:
Casting Material: AISI316 - DIN 1.4401
Production: SFDIN444 - Bolt - Forged
Surface Treatment: “E.P.” (Electro polished)
DATA SHEET DOWNLOAD
Model
SFDIN444

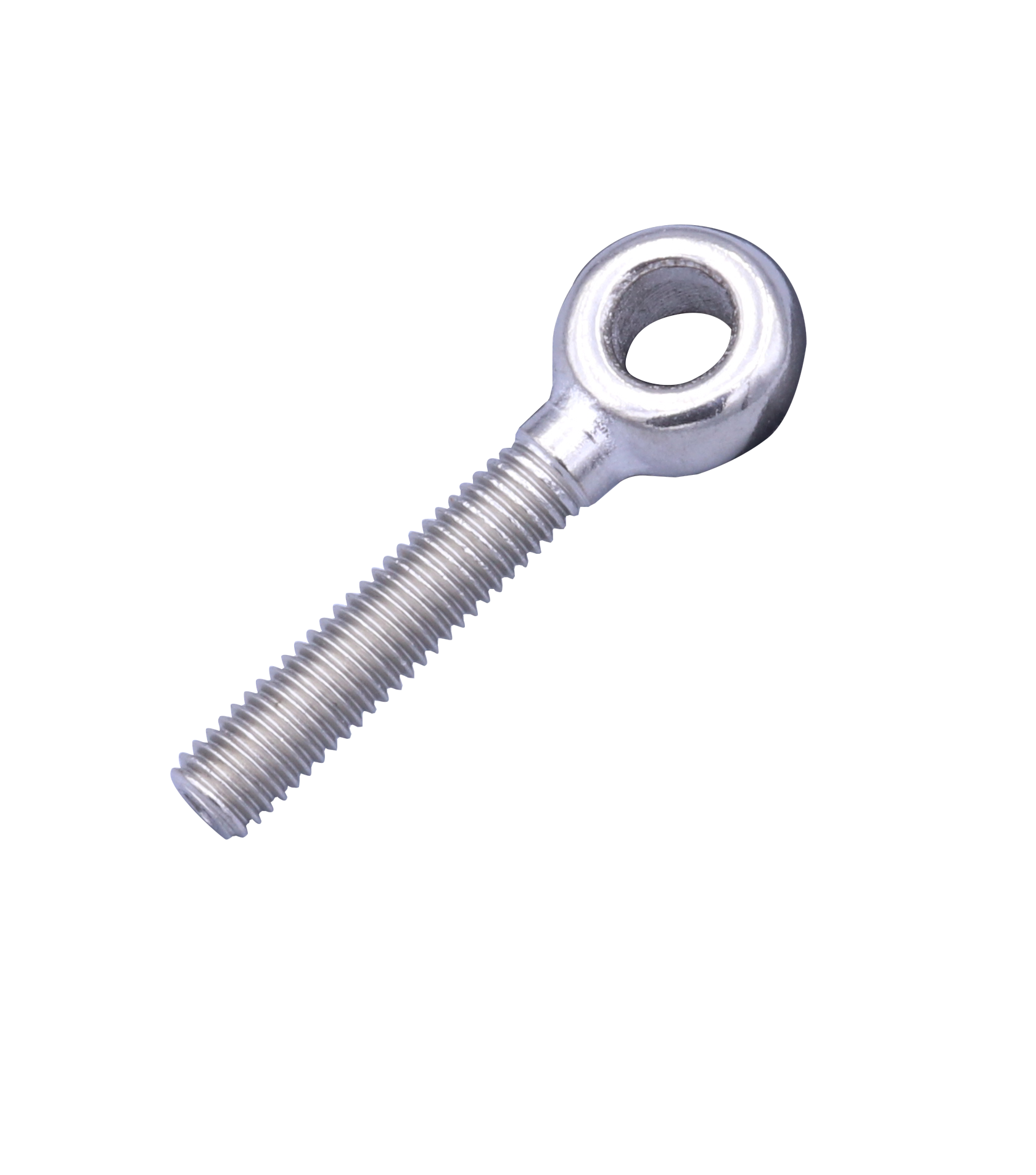

Eye bolt
316 ss

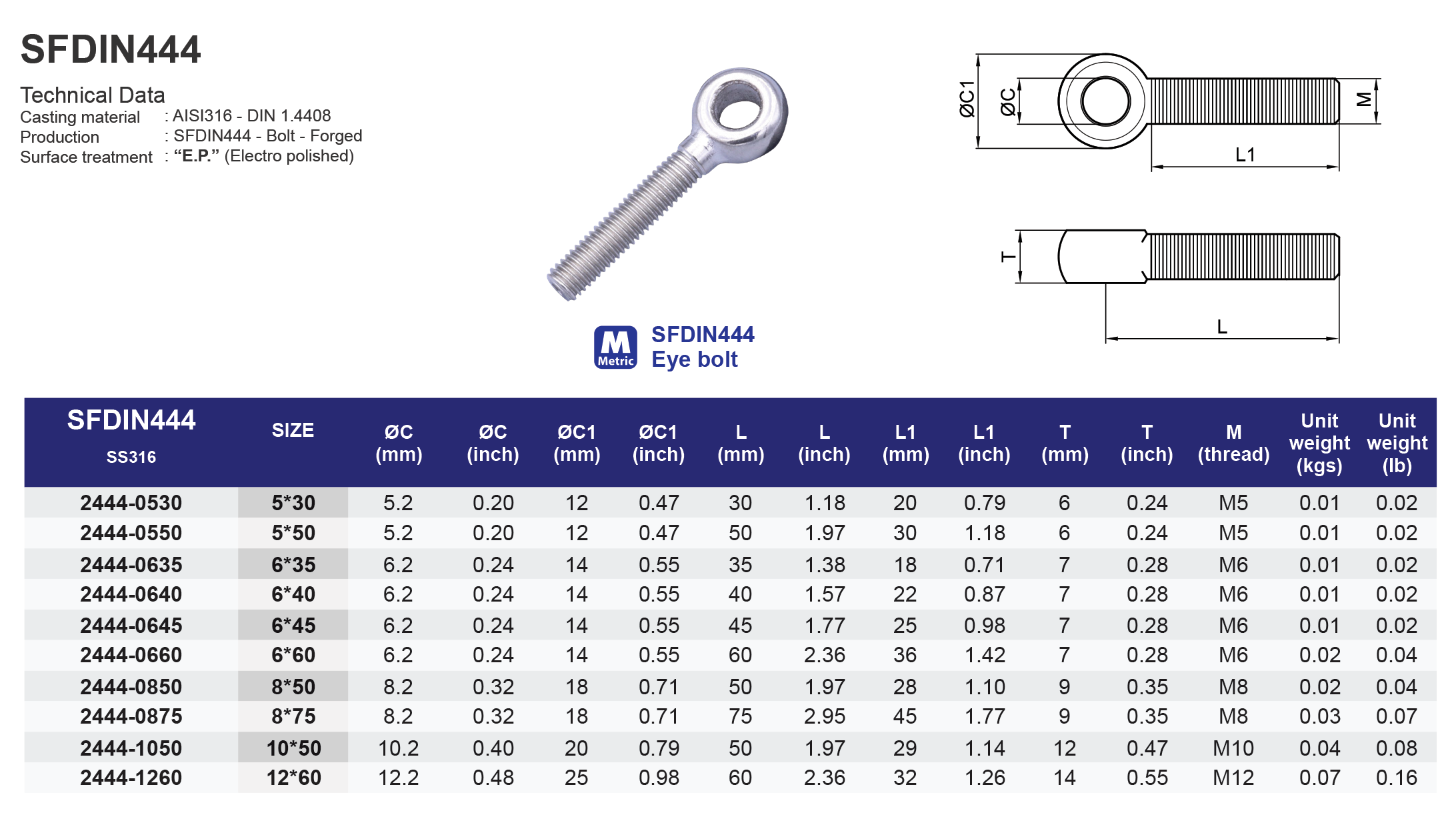

| SS316 | Size | ØC (mm) | ØC1 (mm) | L (mm) | L1 (mm) | T (mm) | M (thread) | Unit weight (kgs) |
|---|---|---|---|---|---|---|---|---|
| 24440530 | 5*30 | 5.2 | 12 | 30 | 20 | 6 | M5 | 0.01 |
| 24440550 | 5*50 | 5.2 | 12 | 50 | 30 | 6 | M5 | 0.01 |
| 24440635 | 6*35 | 6.2 | 14 | 35 | 18 | 7 | M6 | 0.01 |
| 24440640 | 6*40 | 6.2 | 14 | 40 | 22 | 7 | M6 | 0.01 |
| 24440645 | 6*45 | 6.2 | 14 | 45 | 25 | 7 | M6 | 0.01 |
| 24440660 | 6*60 | 6.2 | 14 | 60 | 36 | 7 | M6 | 0.02 |
| 24440850 | 8*50 | 8.2 | 18 | 50 | 28 | 9 | M8 | 0.02 |
| 24440875 | 8*75 | 8.2 | 18 | 75 | 45 | 9 | M8 | 0.03 |
| 24441050 | 10*50 | 10.2 | 20 | 50 | 29 | 12 | M10 | 0.04 |
| 24441260 | 12*60 | 12.2 | 25 | 60 | 32 | 14 | M12 | 0.07 |
| SS316 | Size | ØC (inch) | ØC1 (inch) | L (inch) | L1 (inch) | T (inch) | M (thread) | Unit weight (lb) |
|---|---|---|---|---|---|---|---|---|
| 24440530 | 5*30 | 0.20 | 0.47 | 1.18 | 0.79 | 0.24 | M5 | 0.02 |
| 24440550 | 5*50 | 0.20 | 0.47 | 1.97 | 1.18 | 0.24 | M5 | 0.02 |
| 24440635 | 6*35 | 0.24 | 0.55 | 1.38 | 0.71 | 0.28 | M6 | 0.02 |
| 24440640 | 6*40 | 0.24 | 0.55 | 1.57 | 0.87 | 0.28 | M6 | 0.02 |
| 24440645 | 6*45 | 0.24 | 0.55 | 1.77 | 0.98 | 0.28 | M6 | 0.02 |
| 24440660 | 6*60 | 0.24 | 0.55 | 2.36 | 1.42 | 0.28 | M6 | 0.04 |
| 24440850 | 8*50 | 0.32 | 0.71 | 1.97 | 1.10 | 0.35 | M8 | 0.04 |
| 24440875 | 8*75 | 0.32 | 0.71 | 2.95 | 1.77 | 0.35 | M8 | 0.07 |
| 24441050 | 10*50 | 0.40 | 0.79 | 1.97 | 1.14 | 0.47 | M10 | 0.08 |
| 24441260 | 12*60 | 0.48 | 0.98 | 2.36 | 1.26 | 0.55 | M12 | 0.16 |
