Description
Technical Data:
Casting material : AISI316 - DIN 1.4408
Production : SFC/FUEL - Fuel cover - Cast
Surface treatment : “M.P.” (Mirror polished)
DATA SHEET DOWNLOAD
Model
SFC_FUEL

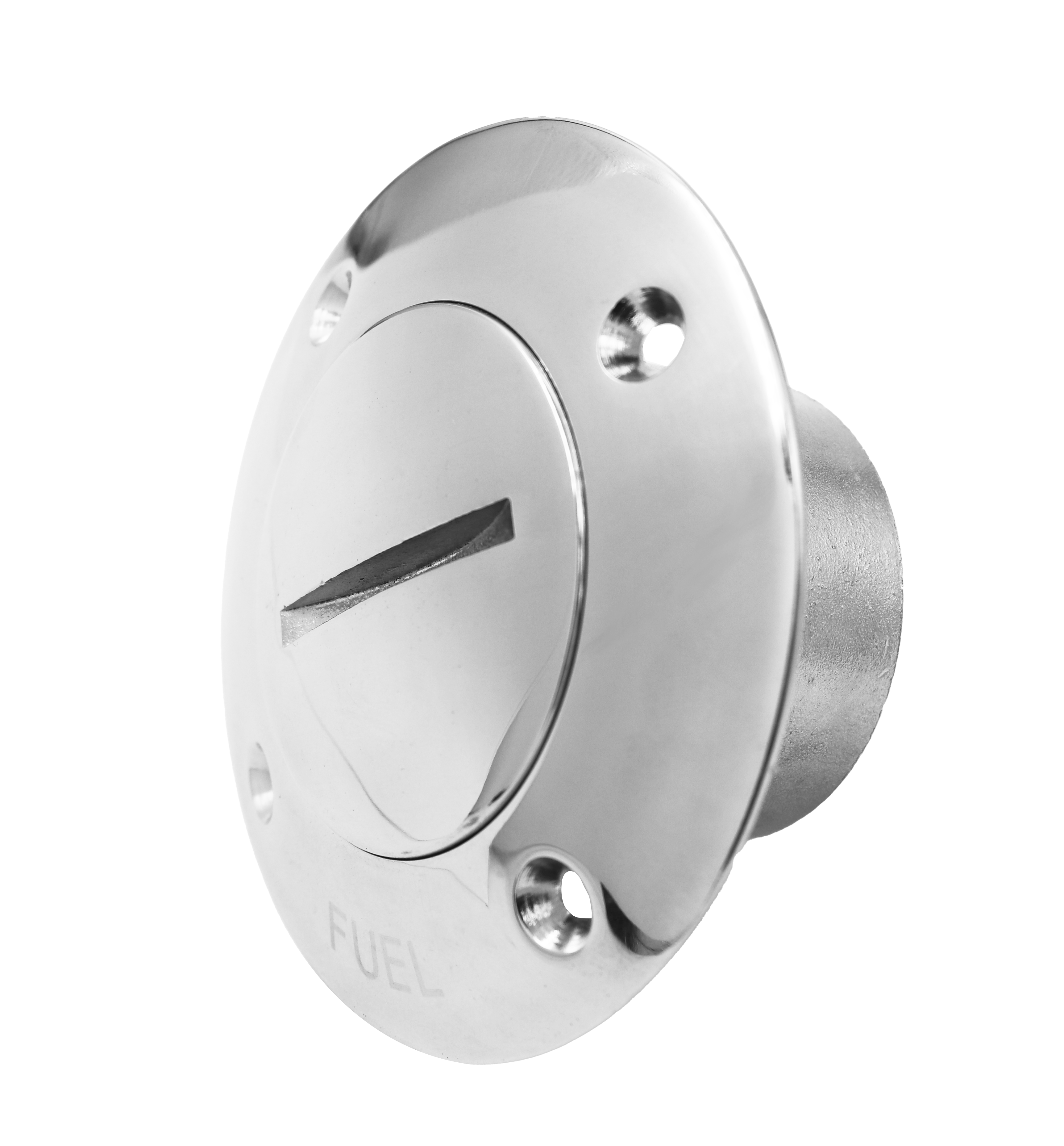

Fuel cover
316 ss

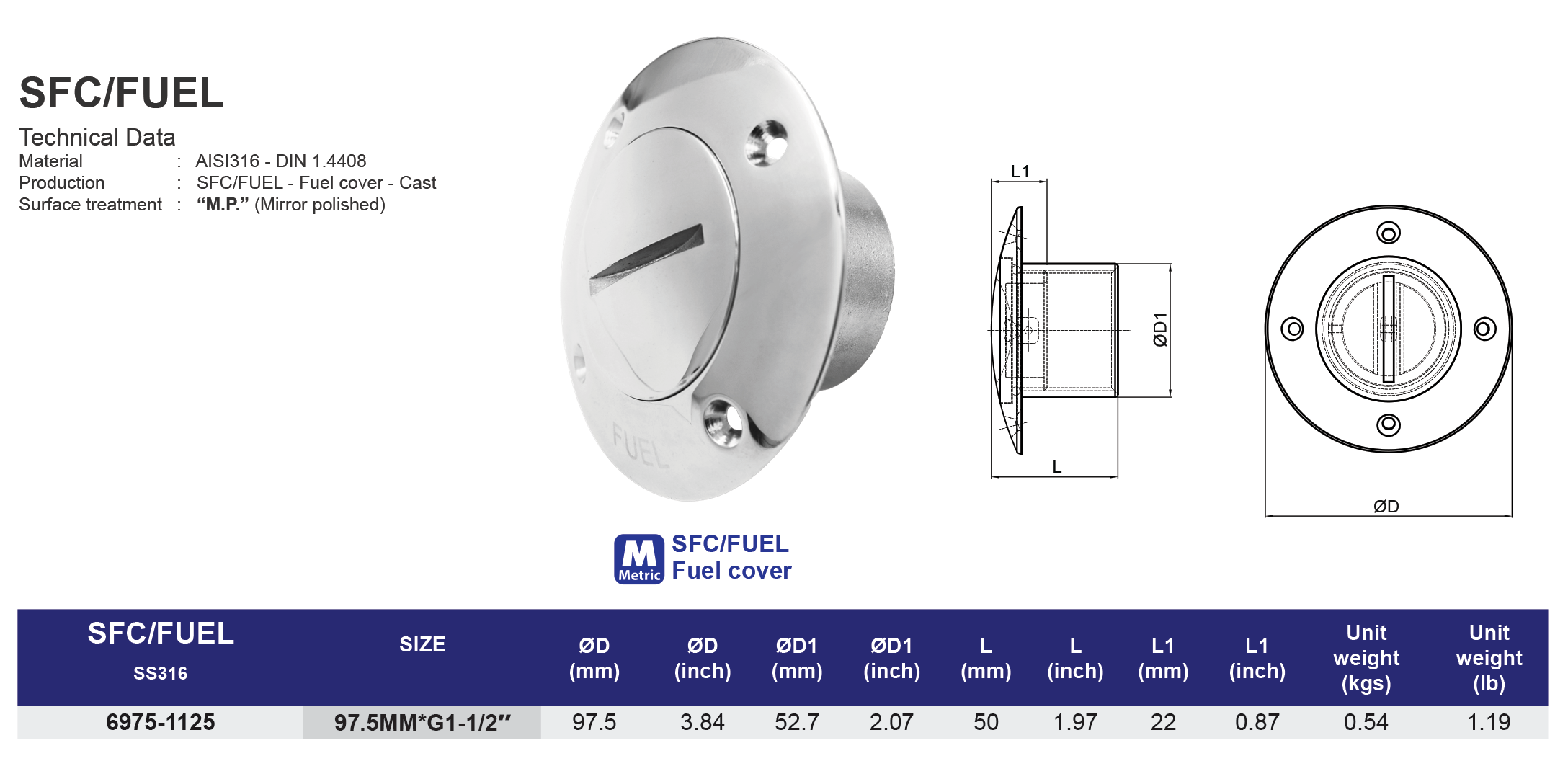

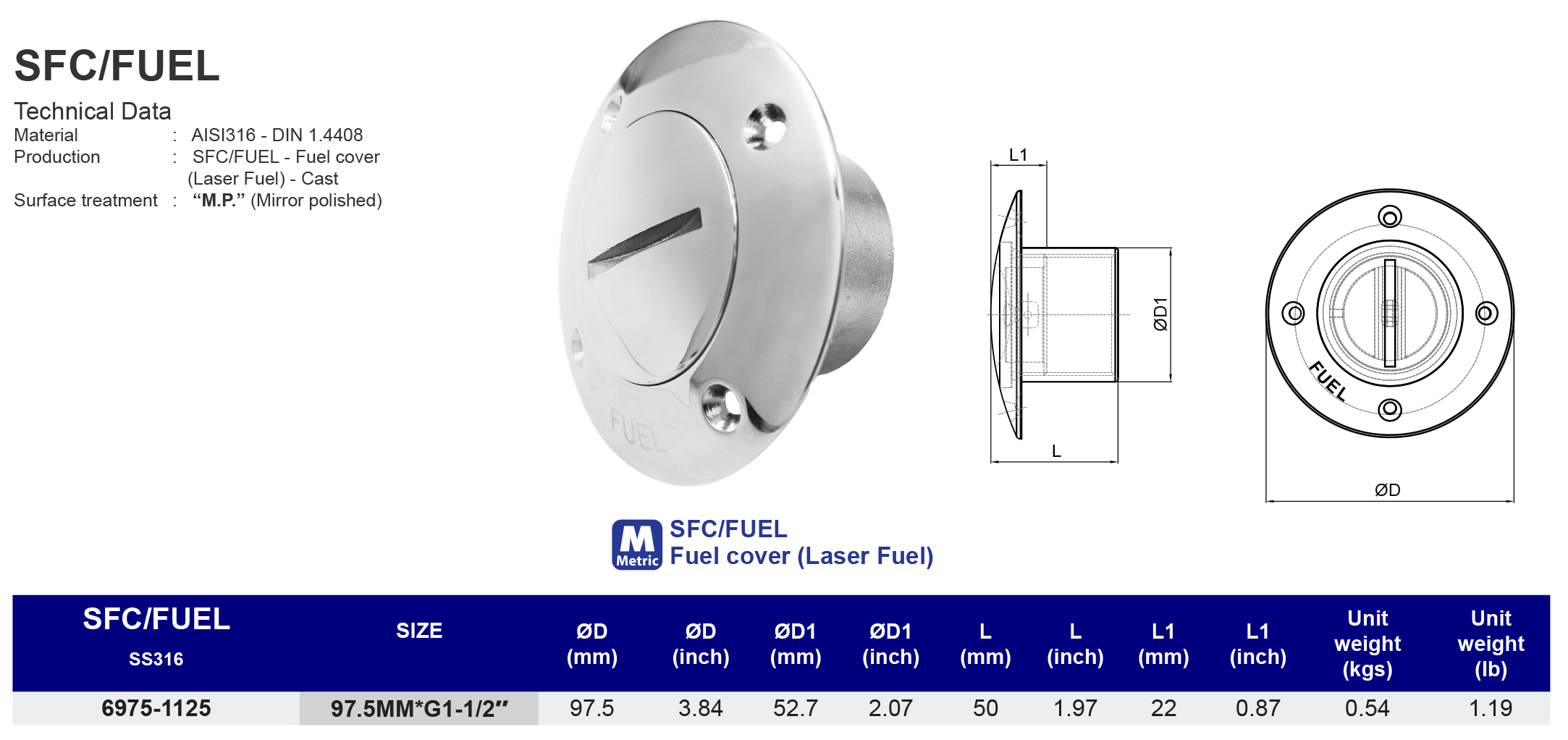

| SS316 | SIZE | ØD (mm) | ØD1 (mm) | L (mm) | L1 (mm) | Unit weight (kgs) |
|---|---|---|---|---|---|---|
| 69751125 | 97.5MM*G1-1/2"*11BSPP | 97.5 | 52.7 | 50 | 22 | 0.54 |
| SS316 | SIZE | ØD (inch) | ØD1 (inch) | L (inch) | L1 (inch) | Unit weight (lb) |
|---|---|---|---|---|---|---|
| 69751125 | 3.84" x G1-1/2" x 11BSPP | 3.84 | 2.07 | 1.97 | 0.87 | 1.19 |
