Description
Technical Data
Forging Material : AISI304 - DIN 1.4401
Casting Material : AISI304 - DIN 1.4301
Production : Snap - Forged
Surface Treatment : “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load
DATA SHEET DOWNLOAD
Model
SF878

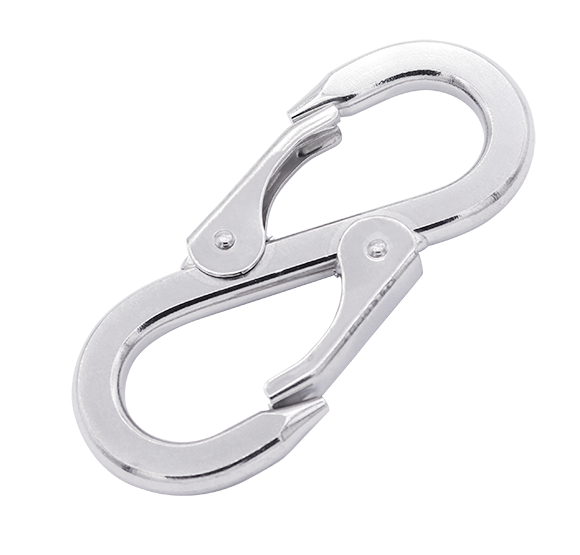

Chain snaps (double hook end)
304 ss

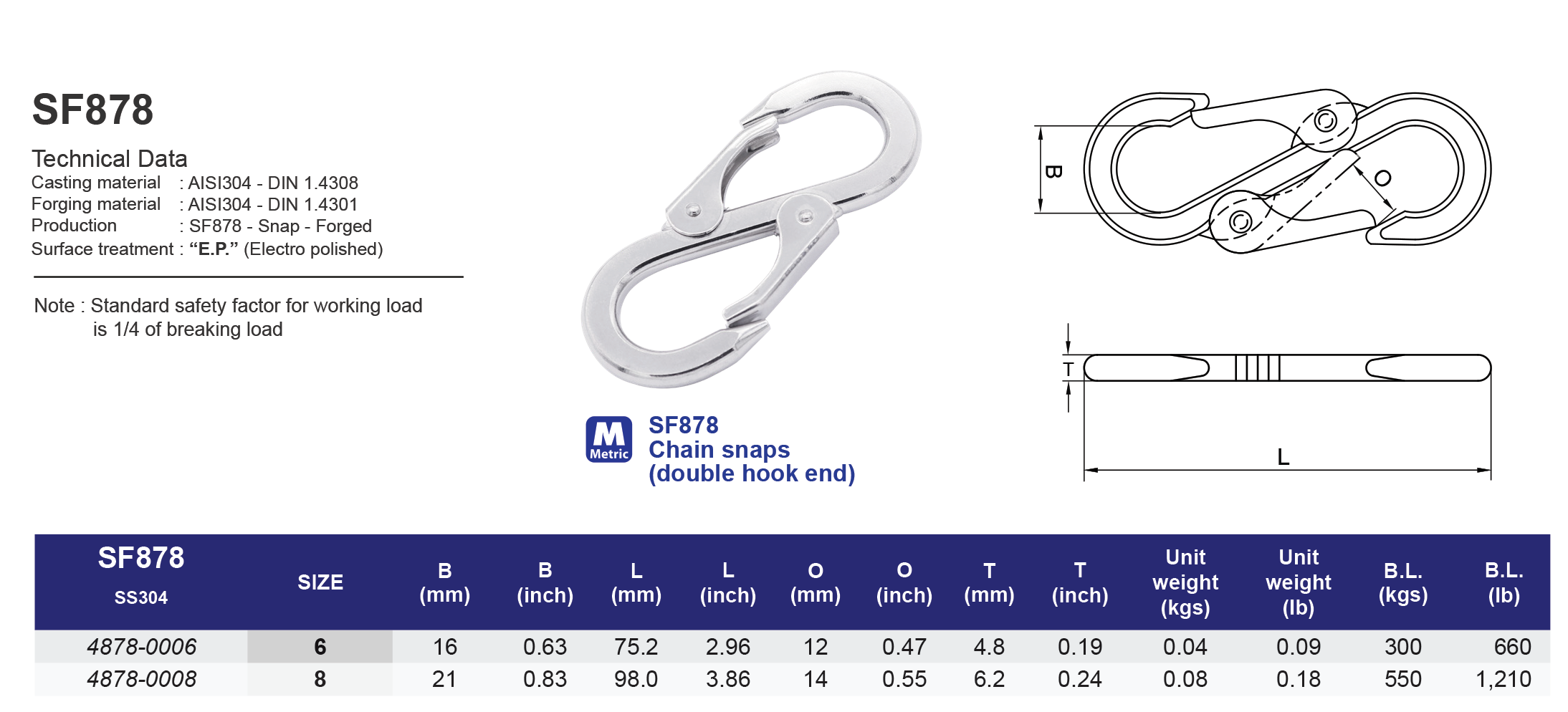

| SS304 | Size | D (mm) | L (mm) | O (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 48780006 | 6 | 6.8 | 75.2 | 12 | 0.04 | 300 |
| 48780008 | 8 | 9.4 | 98.0 | 14 | 0.08 | 550 |
| SS304 | Size | D (inch) | L (inch) | O (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 48780006 | 1/4" | 0.27 | 2.96 | 0.47 | 0.09 | 660 |
| 48780008 | 5/16" | 0.37 | 3.86 | 0.55 | 0.18 | 1,210 |
