SF8671H Steering Cable Pulley

SKU: 48672065

Size (mm): 65mm
Price:

Login to view the price.

Stock:
Login to view stock.

Description

Technical Data:
Stamping Material:
AISI304 - DIN 1.4301
Production:
SF8671H - Eye / Hook - Cast
Sheave - Nylon
Block (frame) - Stamped
Surface Treatment:
Matte finished / Passivated

DATA SHEET DOWNLOAD

Model

SF8671H

Steering Cable Pulley
304 ss

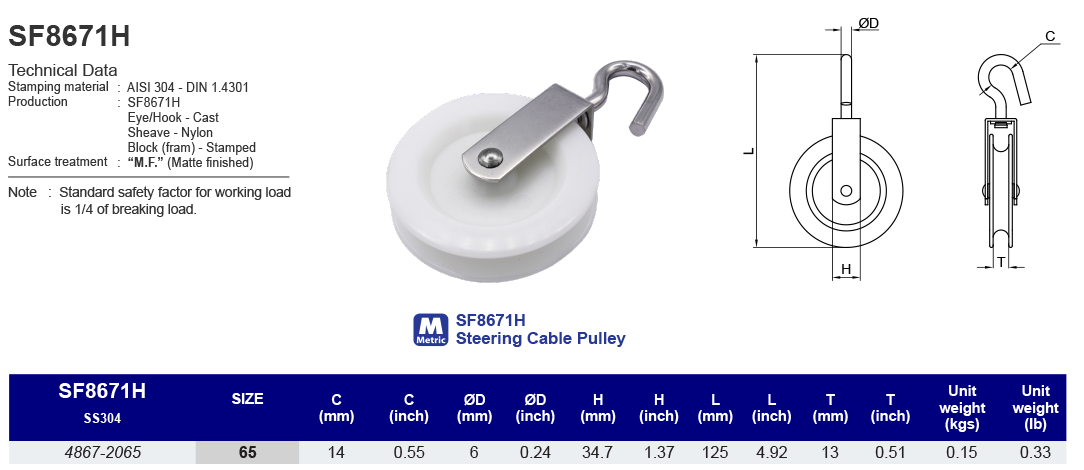

SF8671H drawing

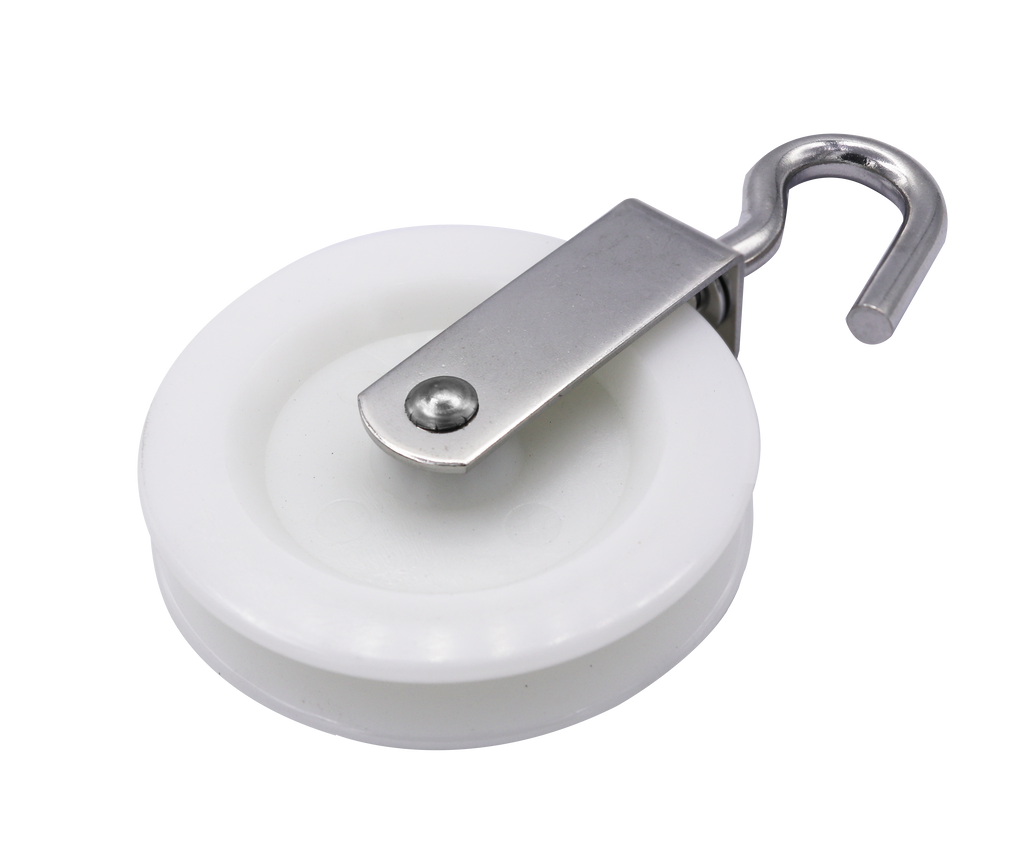

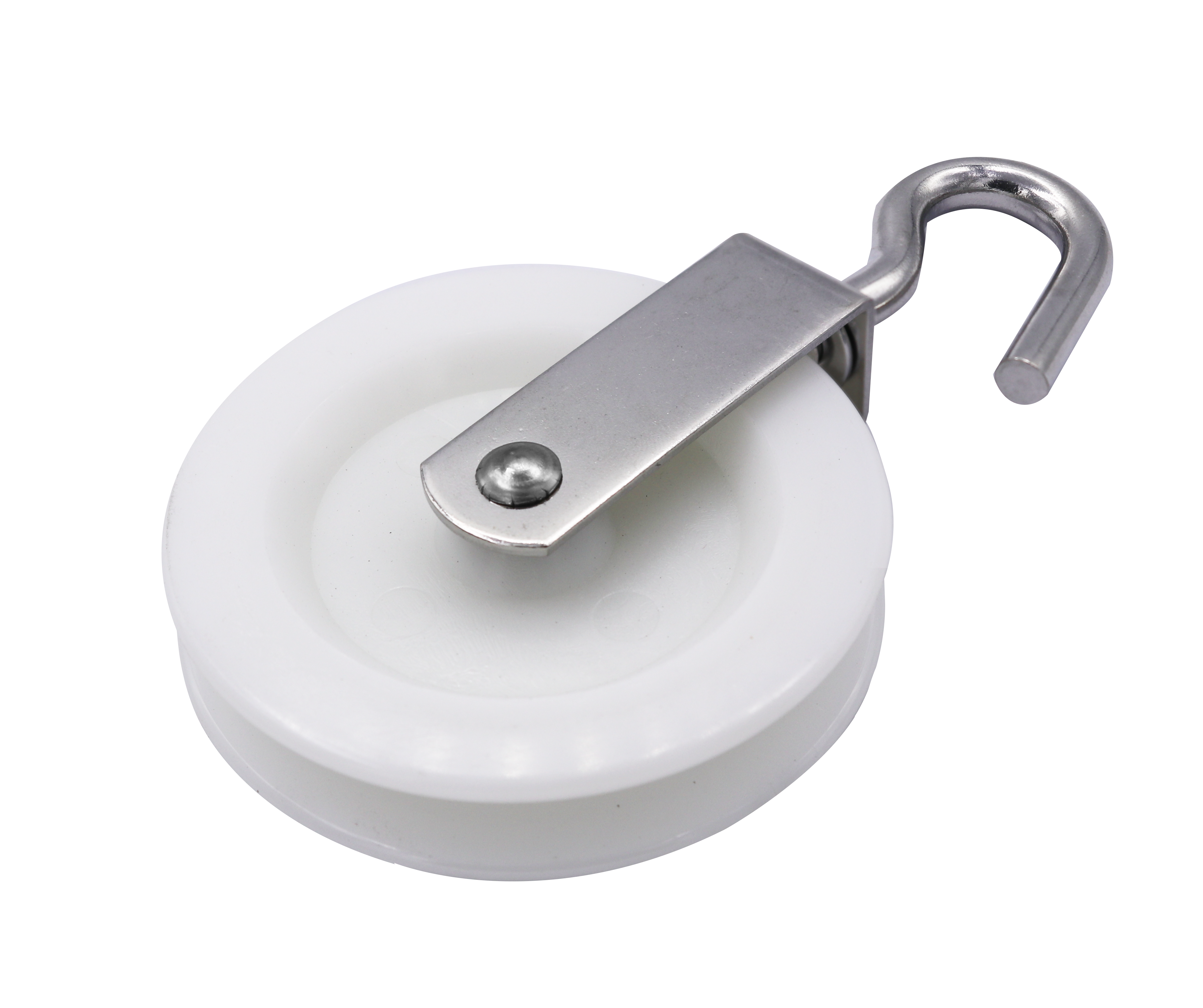

SF8671H image
SS304SizeC(mm)ØD(mm)H(mm)L(mm)T(mm)Unit Weight(kgs)
486720656514634.7125130.15
SS304SizeC(inch)ØD(inch)H(inch)L(inch)T(inch)Unit Weight(Ib)
48672065650.550.241.374.920.510.33
