Description

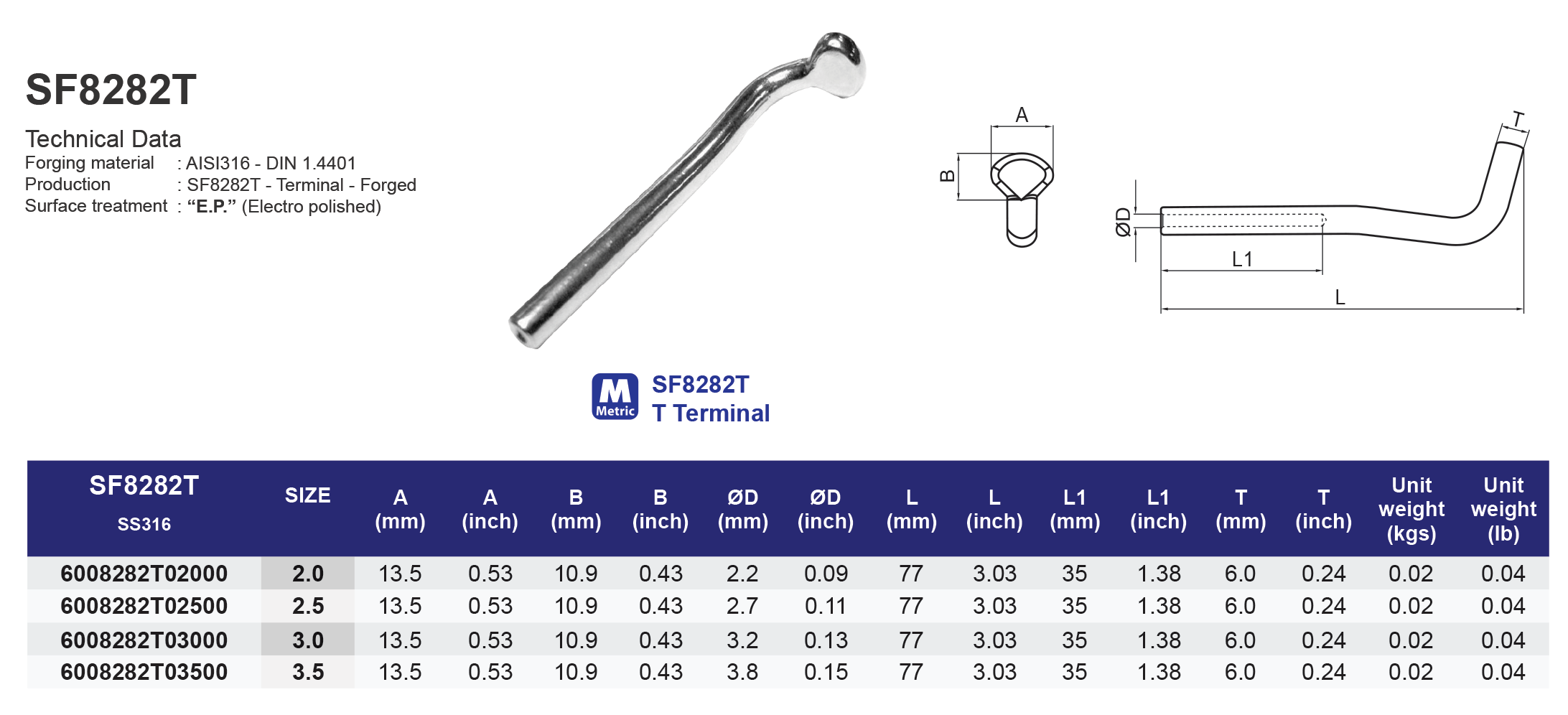

Technical Data:
Forging Material: AISI316 - DIN 1.4401
Production: SF8282T - Terminal - Forged
Surface Treatment: “E.P.” (Electro polished)

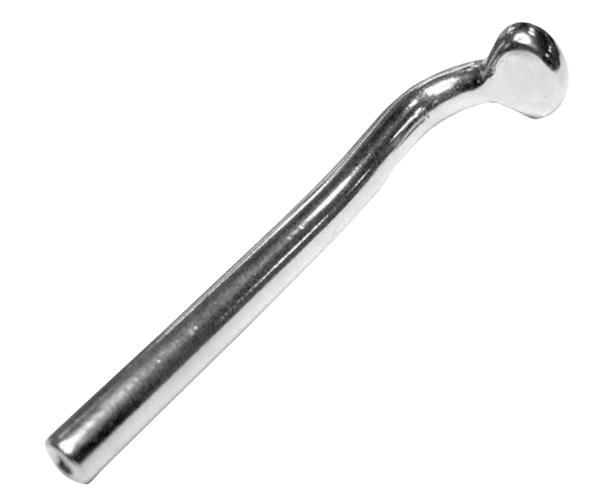

Model
SF8282T
T Terminal
316 ss

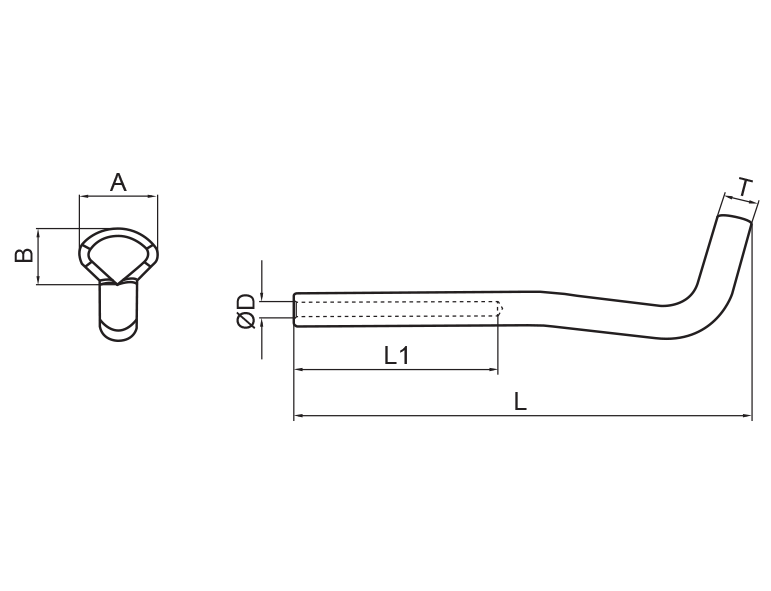

| SS316 | Size | A (mm) | B (mm) | ØD (mm) | L (mm) | L1 (mm) | T (mm) | Unit weight (kgs) |
|---|---|---|---|---|---|---|---|---|
| 6008282T02000 | 2.0 | 13.5 | 10.9 | 2.2 | 77 | 35 | 6.0 | 0.02 |
| 6008282T02500 | 2.5 | 13.5 | 10.9 | 2.7 | 77 | 35 | 6.0 | 0.02 |
| 6008282T03000 | 3.0 | 13.5 | 10.9 | 3.2 | 77 | 35 | 6.0 | 0.02 |
| 6008282T03500 | 3.5 | 13.5 | 10.9 | 3.8 | 77 | 35 | 6.0 | 0.02 |
| SS316 | Size | A (inch) | B (inch) | ØD (inch) | L (inch) | L1 (inch) | T (inch) | Unit weight (lb) |
|---|---|---|---|---|---|---|---|---|
| 6008282T02000 | 2.0 | 0.53 | 0.43 | 0.09 | 3.03 | 1.38 | 0.24 | 0.04 |
| 6008282T02500 | 2.5 | 0.53 | 0.43 | 0.11 | 3.03 | 1.38 | 0.24 | 0.04 |
| 6008282T03000 | 3.0 | 0.53 | 0.43 | 0.13 | 3.03 | 1.38 | 0.24 | 0.04 |
| 6008282T03500 | 3.5 | 0.53 | 0.43 | 0.15 | 3.03 | 1.38 | 0.24 | 0.04 |
