SF8256P Pulley block (type O) - 304
SF8256P Pulley block (type O) - 304
SF8256P Pulley block (type O) - 304
Roll over image to zoom in Click on image to zoom
SF8256P Pulley block (type O) - 304SF8256P Pulley block (type O) - 304SF8256P Pulley block (type O) - 304

SF8256P Pulley block (type O) - 304

SKU: 48256125
Size: 25mm
Price:
$4.94

Looking for B2B pricing? Apply for a B2B account

Stock:
Sold out (Available to manufacture)
Log in to Add to Cart

Description

Technical Data:
Stamping Material:
AISI304 - DIN 1.4301
Production:
SF8256P - Sheave - Nylon
Block - Sheet
Rivet - Pipe
Surface Treatment:
“M.F.” (Matte finished)

DATA SHEET DOWNLOAD

Model

SF8256P

Pulley block (type O)
304 ss

SF8256Pdrawing

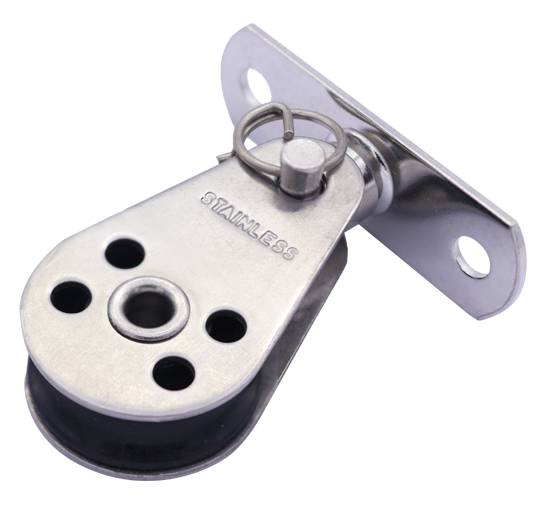

SF8256P image
SS304SIZEØD (mm)E (mm)H (mm)L (mm)T (mm)Unit weight (kgs)B.L. (kgs)
4825612525252610576.50.03350
SS304SIZEØD (inch)E (inch)H (inch)L (inch)T (inch)Unit weight (lb)B.L. (lb)
482561251"0.981.020.392.240.260.06770
