Description
Technical Data:
Stamping Material:
AISI304 - DIN 1.4301

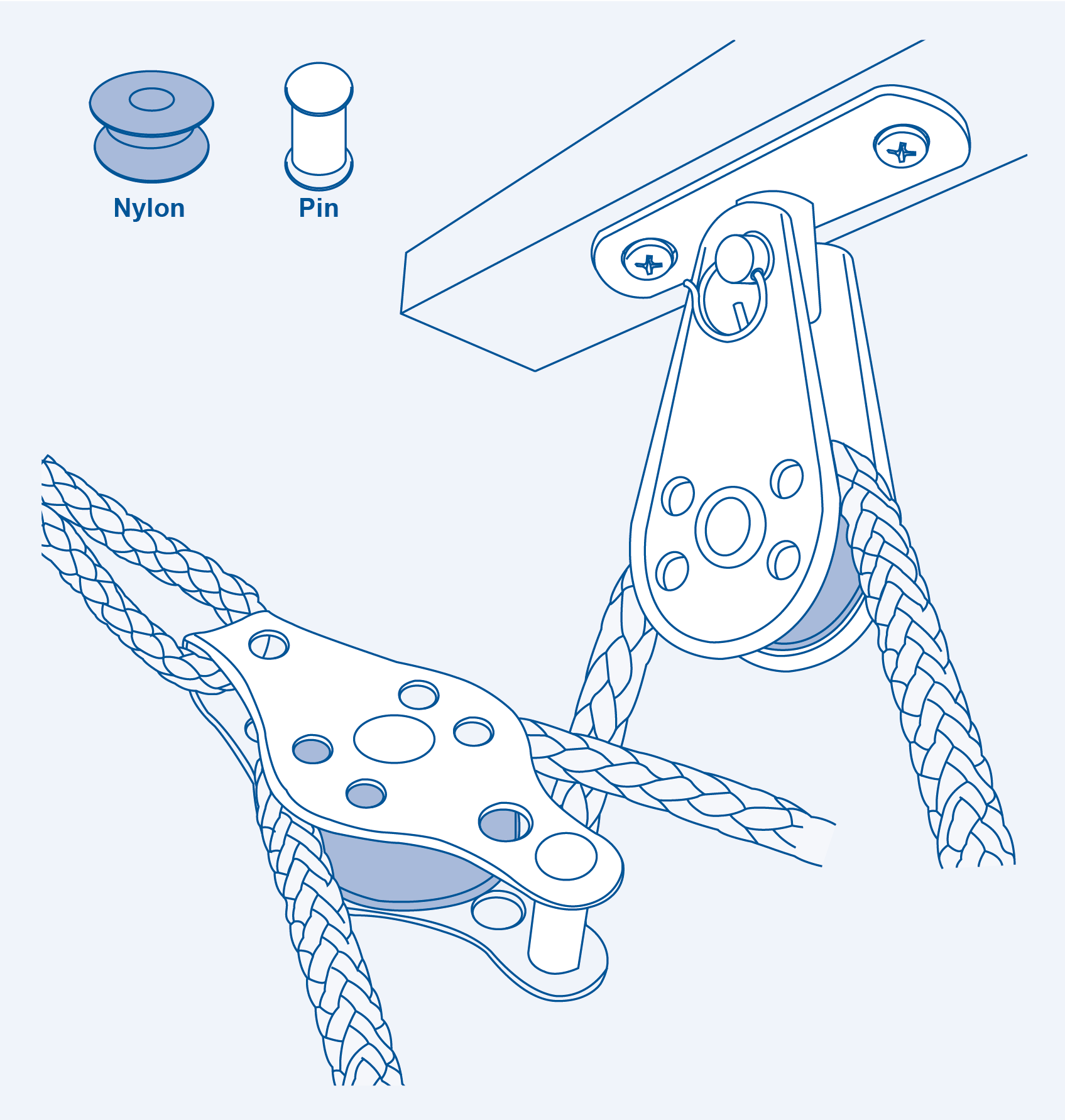

Production:
SF8253P - Sheave - Nylon
Block - Sheet
Rivet - Pipe
Surface Treatment:
“M.F.” (Matte finished)

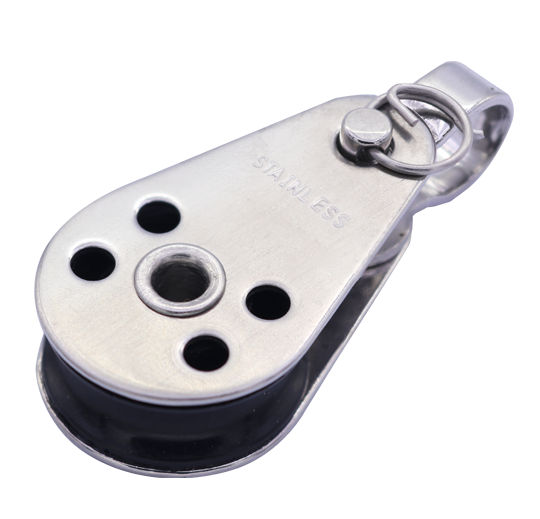

Model
SF8253P
Pulley block (type M)
304 ss

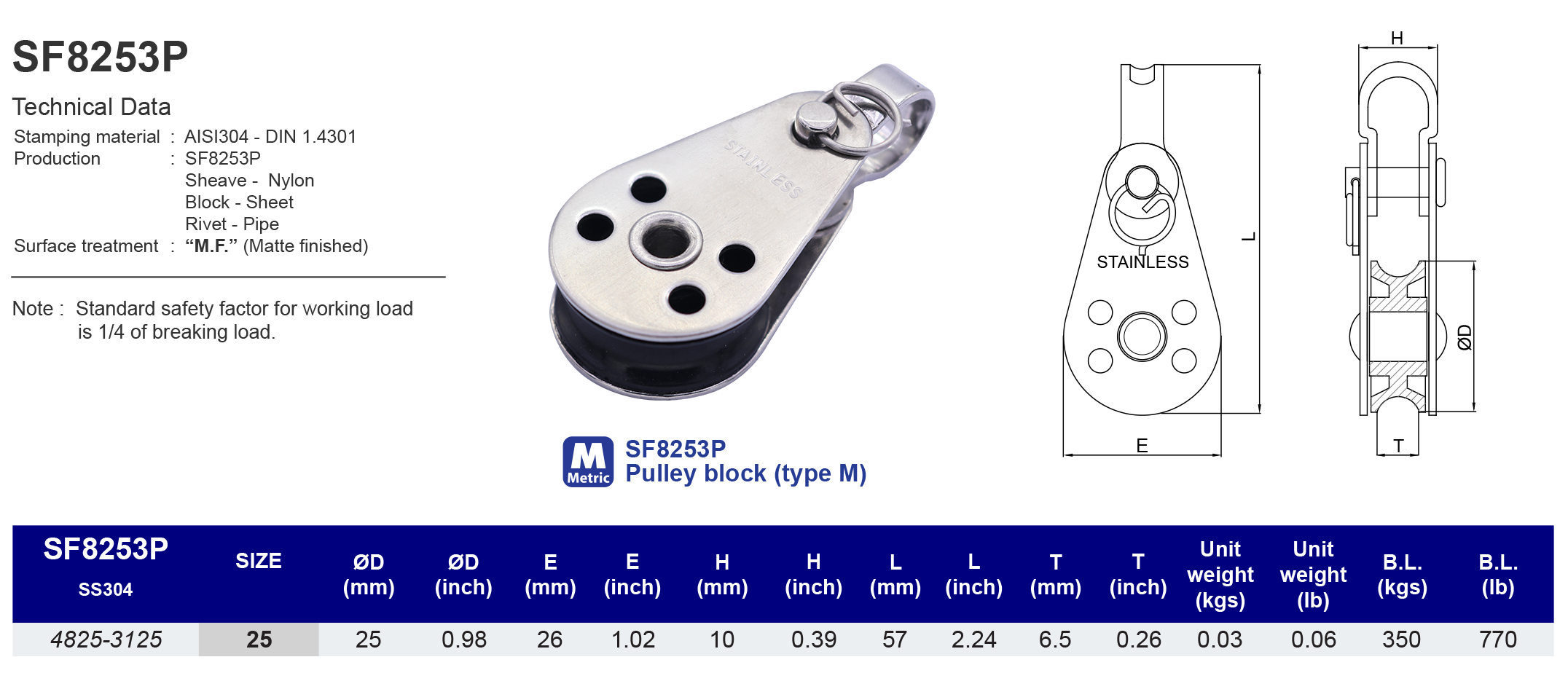

| SS304 | SIZE | ØD (mm) | E (mm) | H (mm) | L (mm) | T (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|---|
| 48253125 | 25 | 25 | 26 | 10 | 57 | 6.5 | 0.03 | 350 |
| SS304 | SIZE | ØD (inch) | E (inch) | H (inch) | L (inch) | T (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|---|
| 48253125 | 1" | 0.98 | 1.02 | 0.39 | 2.24 | 0.26 | 0.06 | 770 |
