Description

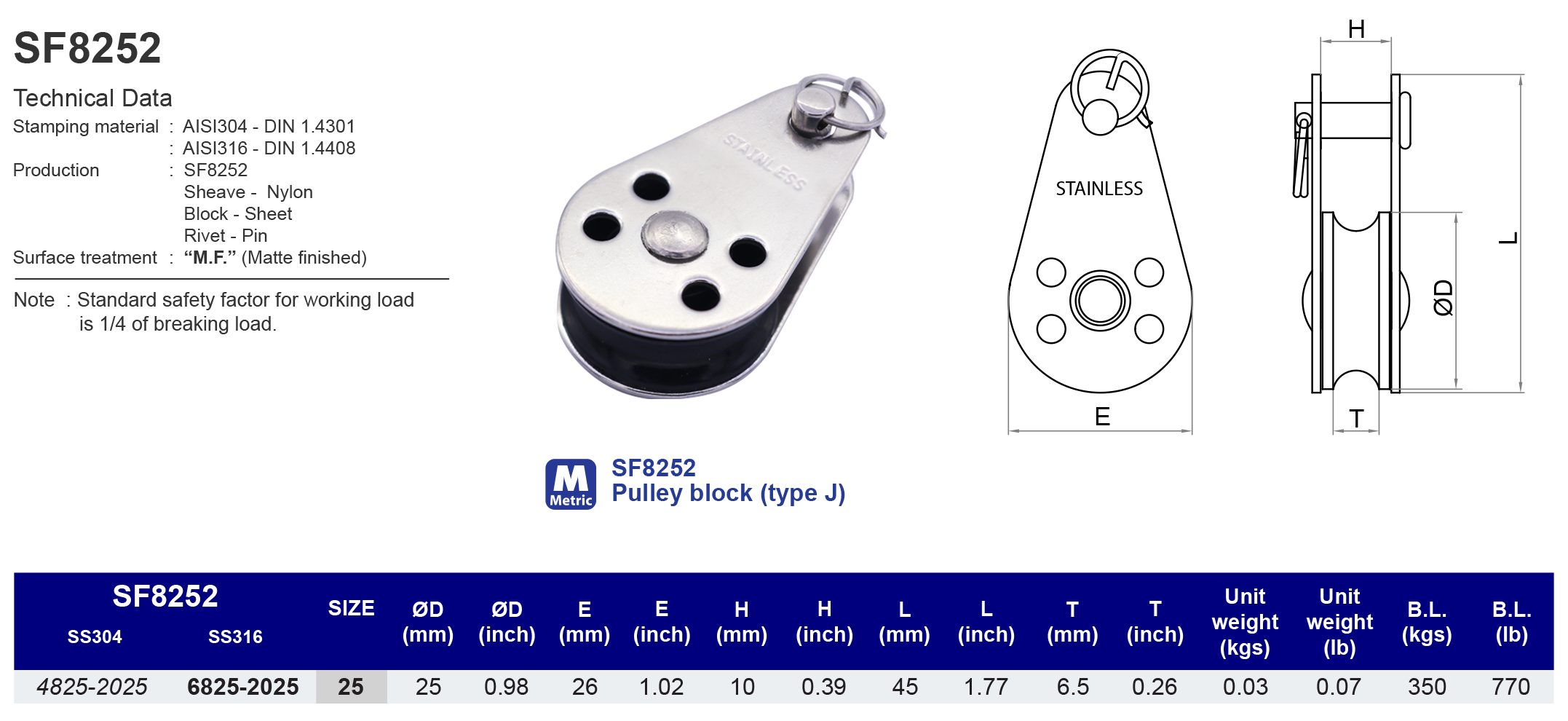

Technical Data:
Stamping Material:
AISI304 - DIN 1.4301
Production:
SF8252 - Sheave - Nylon
Block - Sheet
Rivet - Pin
Surface Treatment:“M.F.” (Matte finished)
Model
SF8252

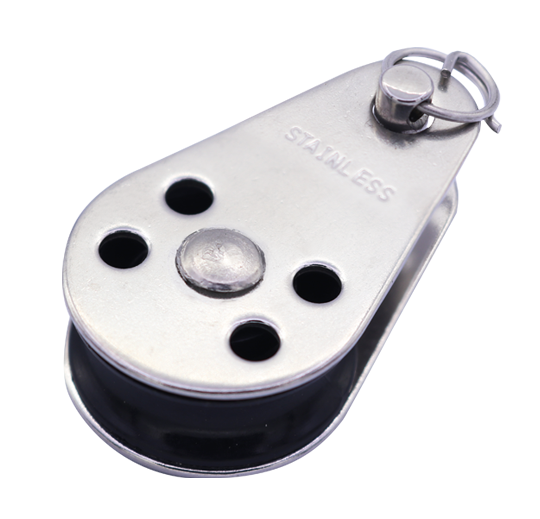

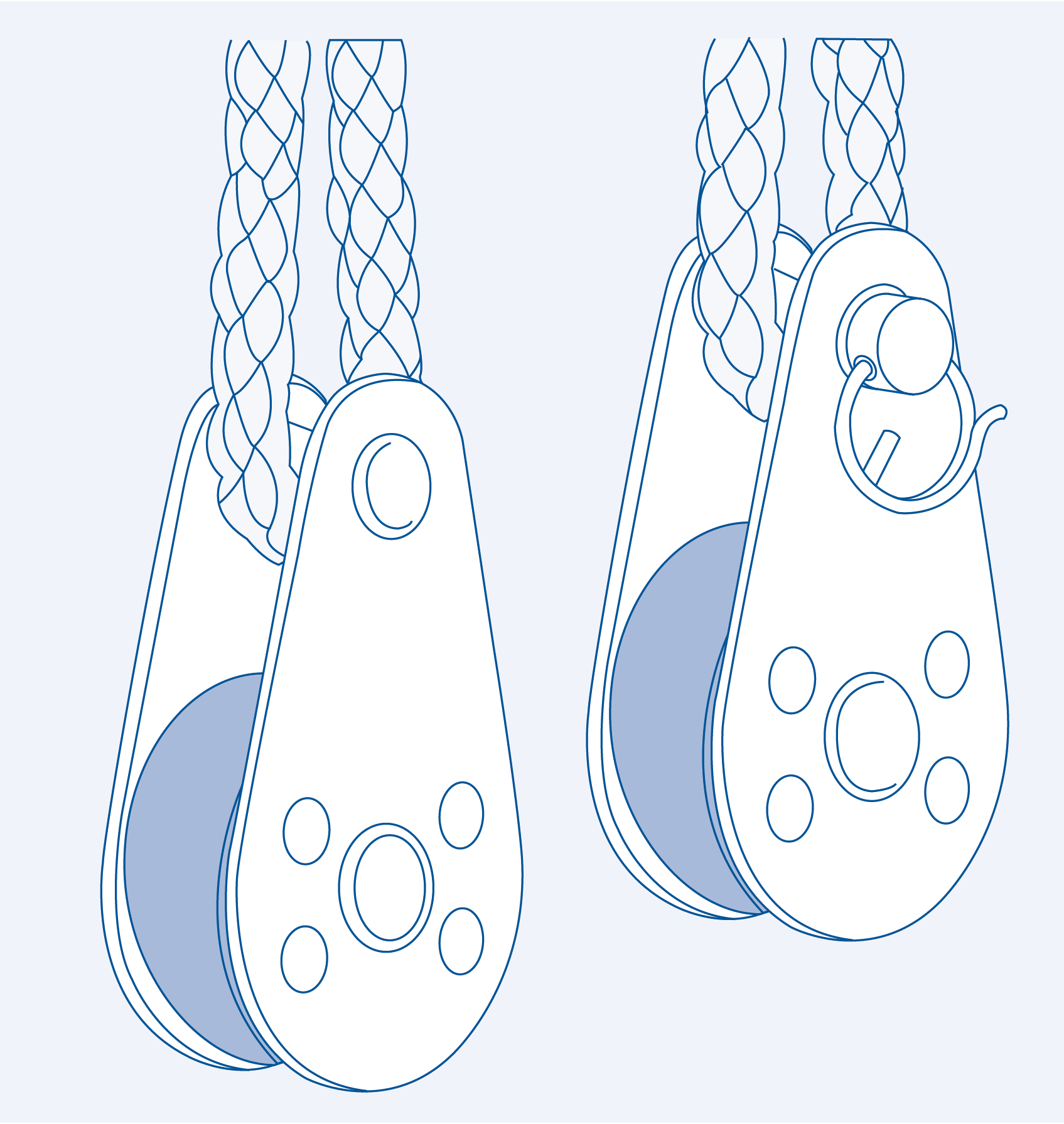

Pulley block (type J)
316 ss
SS316 | SIZE | ØD (mm) | E (mm) | H (mm) | L (mm) | T (mm) | Unit weight (kgs) | B.L. (kgs) |
---|---|---|---|---|---|---|---|---|
68252025 | 25 | 25 | 26 | 10 | 45 | 6.5 | 0.03 | 350 |
SS316 | SIZE | ØD (inch) | E (inch) | H (inch) | L (inch) | T (inch) | Unit weight (lb) | B.L. (lb) |
---|---|---|---|---|---|---|---|---|
68252025 | 1" | 0.98 | 1.02 | 0.39 | 1.77 | 0.26 | 0.07 | 770 |
