Description
Technical Data:
Stamping Material:
AISI304 - DIN 1.4301
Production:
SF8250P - Sheave - Nylon
Block - Sheet
Rivet - Pipe
Surface Treatment:
“M.F.” (Matte finished)

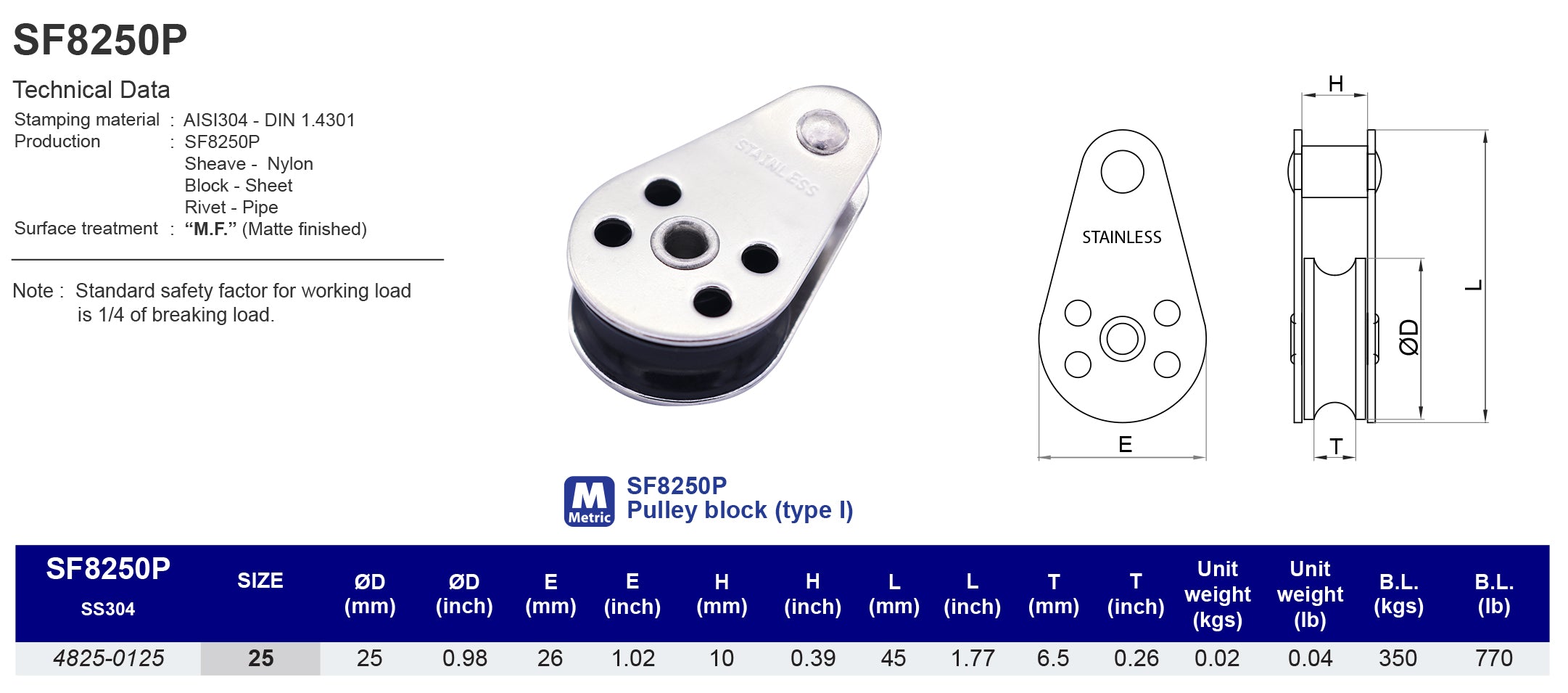

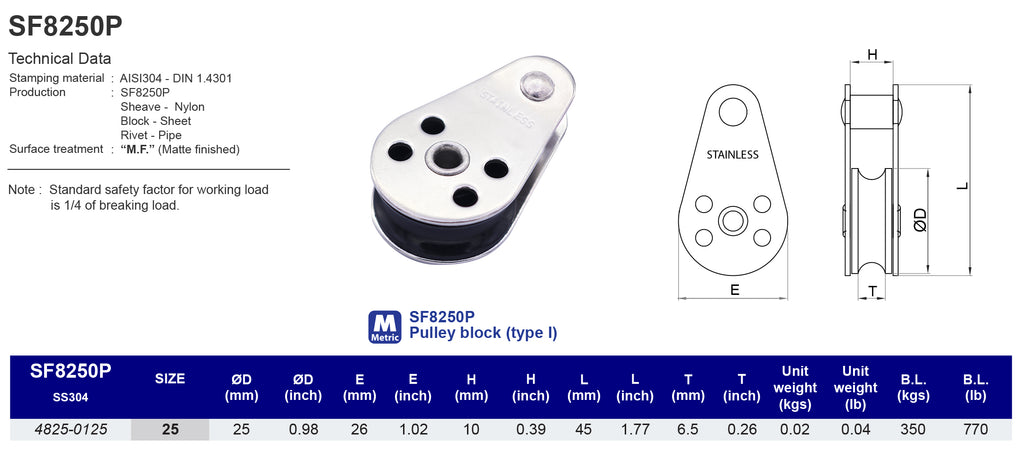

Model
SF8250P

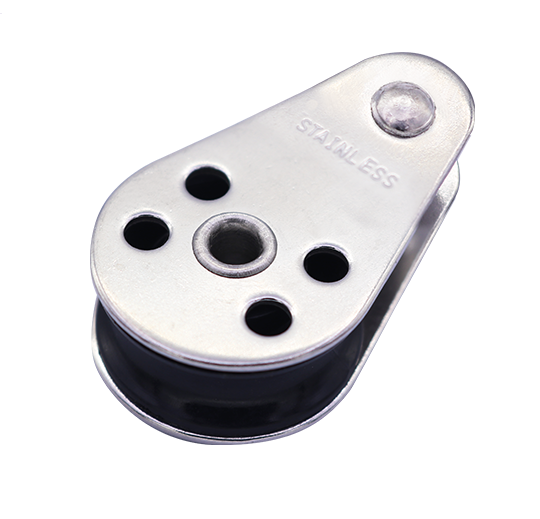

Pulley block (type I)
304 ss
| SS304 | SIZE | ØD (mm) | E (mm) | H (mm) | L (mm) | T (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|---|
| 48250125 | 25 | 25 | 26 | 10 | 45 | 6.5 | 0.02 | 350 |
| SS304 | SIZE | ØD (inch) | E (inch) | H (inch) | L (inch) | T (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|---|
| 48250125 | 1" | 0.98 | 1.02 | 0.39 | 1.77 | 0.26 | 0.04 | 770 |
