SF8250P Pulley block (type I) - 304

SKU: 48250125

Size: 25mm
Price:

Login to view the price.

Stock:
Login to view stock.

Description

Technical Data:
Stamping Material:
AISI304 - DIN 1.4301
Production:
SF8250P - Sheave - Nylon
Block - Sheet
Rivet - Pipe
Surface Treatment:
“M.F.” (Matte finished)

DATA SHEET DOWNLOAD

Model

SF8250P

Pulley block (type I)
304 ss

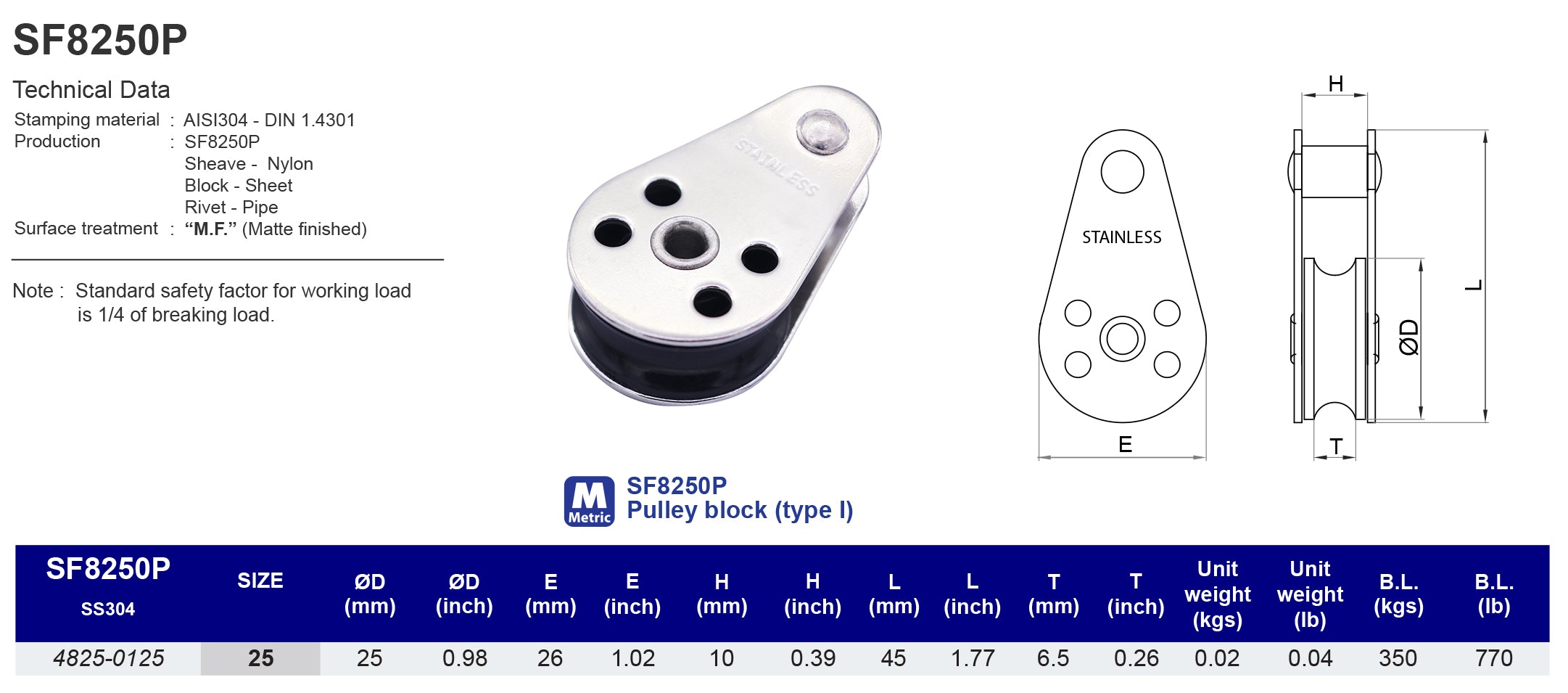

SF8250Pdrawing

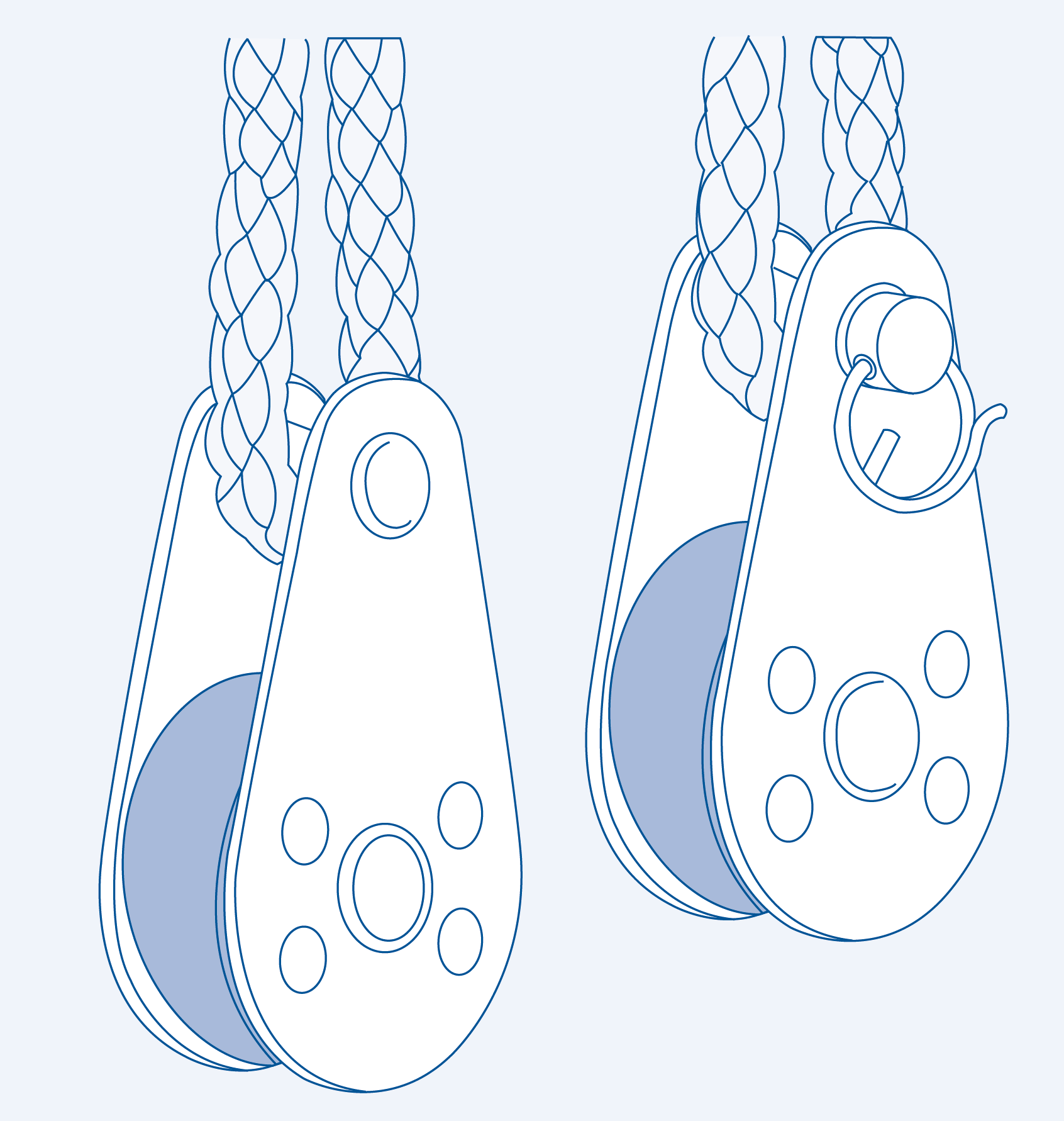

SF8250P image
SS304SIZEØD (mm)E (mm)H (mm)L (mm)T (mm)Unit weight (kgs)B.L. (kgs)
4825012525252610456.50.02350
SS304SIZEØD (inch)E (inch)H (inch)L (inch)T (inch)Unit weight (lb)B.L. (lb)
482501251"0.981.020.391.770.260.04770
