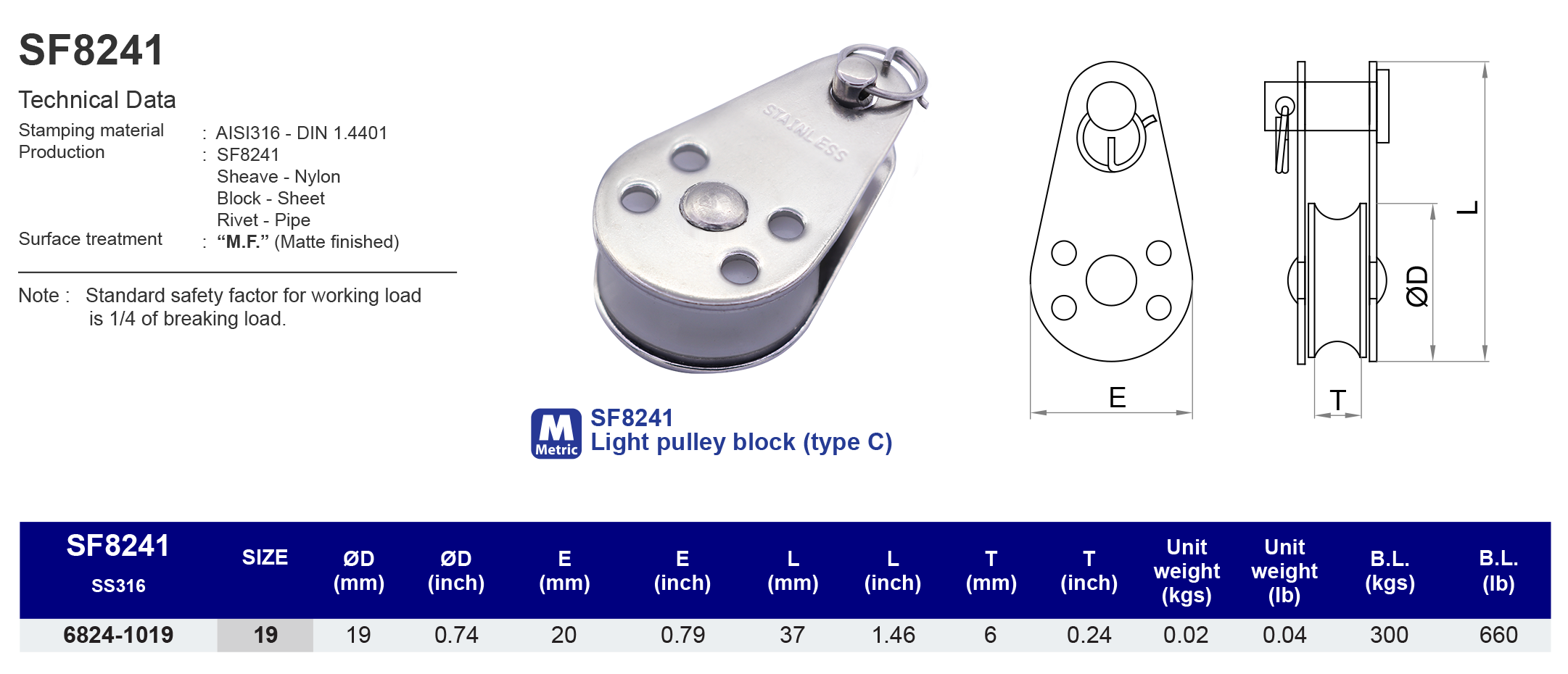

Description
Technical Data:
Stamping Material : AISI316 - DIN 1.4401
Production: SF8241 - Sheave - Nylon
Block - Sheet
Rivet - Pipe
Surface Treatment:“M.F.” (Matte finished) Note : Standard safety factor for working load
is 1/4 of breaking load.
Model
SF8241

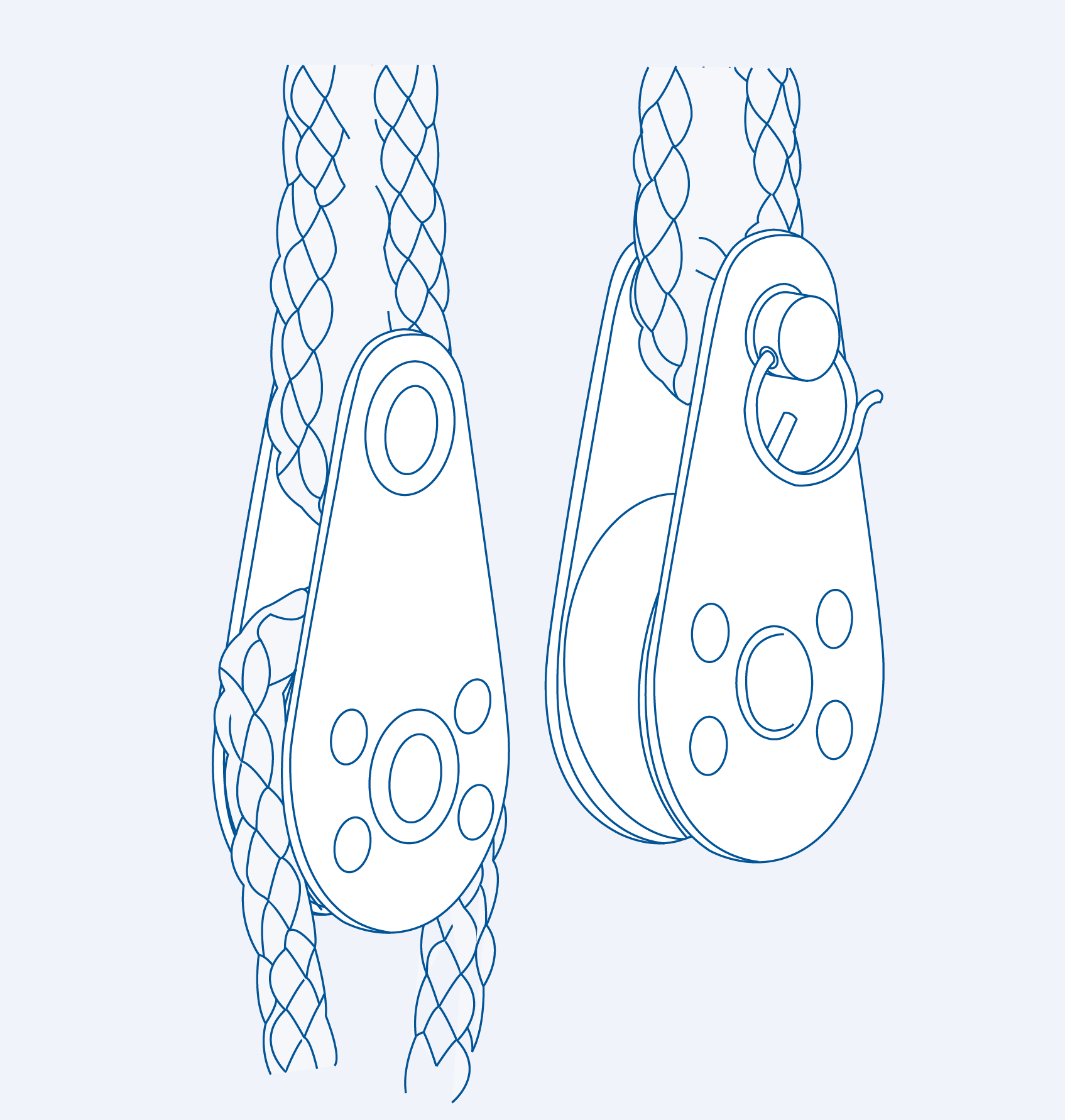

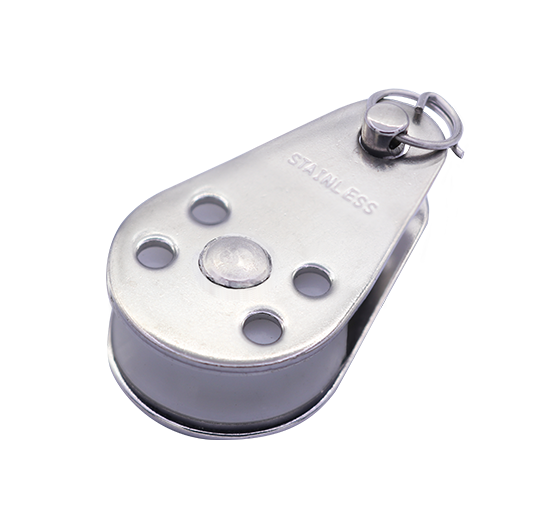

Light pulley block (type C)
316 ss
| SS316 | SIZE | ØD (mm) | E (mm) | L (mm) | T (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|
| 68241019 | 19 | 19 | 20 | 37 | 6 | 0.02 | 300 |
| SS316 | SIZE | ØD (inch) | E (inch) | L (inch) | T (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|
| 68241019 | 3/4" | 0.74 | 0.79 | 1.46 | 0.24 | 0.04 | 660 |
