SF7807 Swage stemball

SKU: 67807108

Size (Cable) Inch: 1/8"
Price:

Login to view the price.

Stock:
Login to view stock.

Description

Technical Data:
Forging Material: AISI316 - DIN 1.4401
Surface Treatment: Electro polished

DATA SHEET DOWNLOAD

Model

SF7807

Swage stemball
316 ss

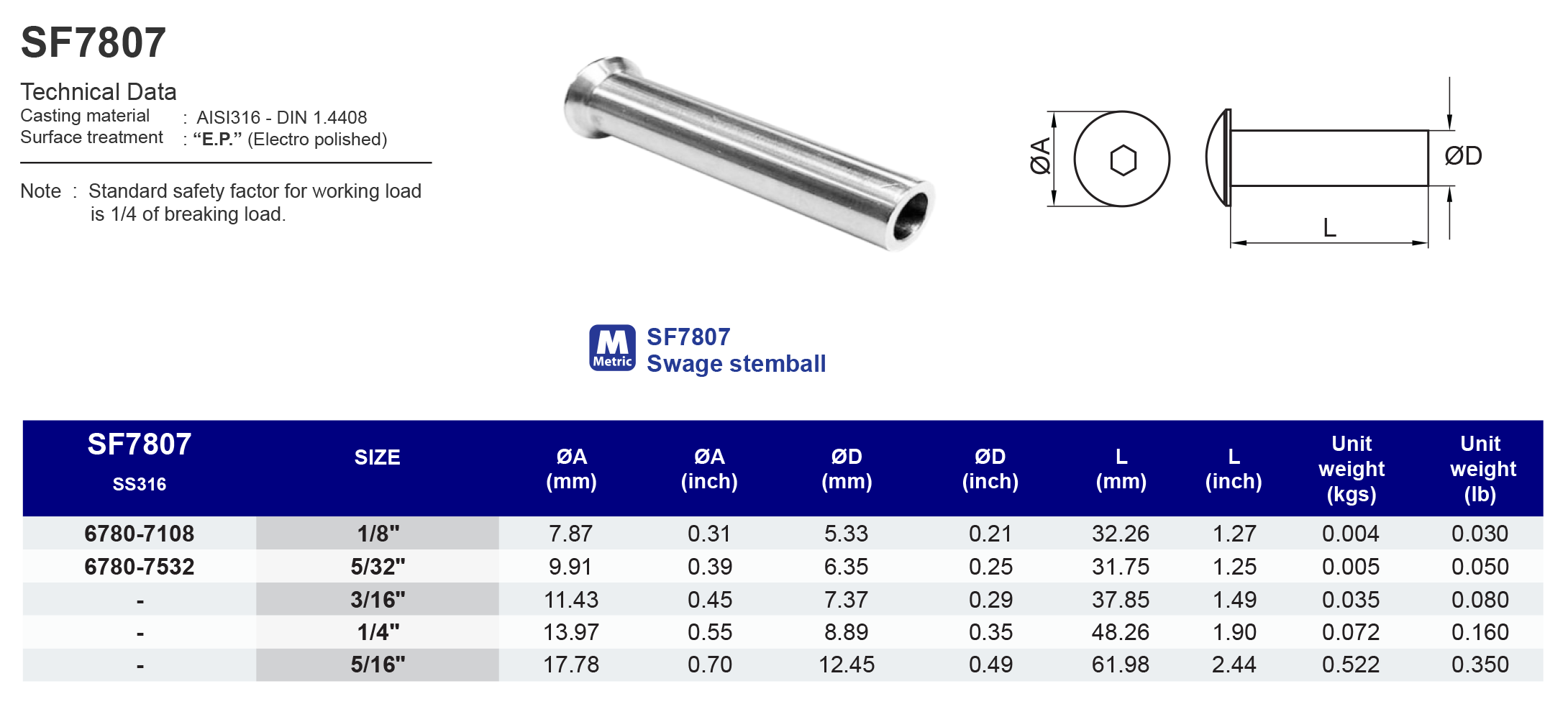

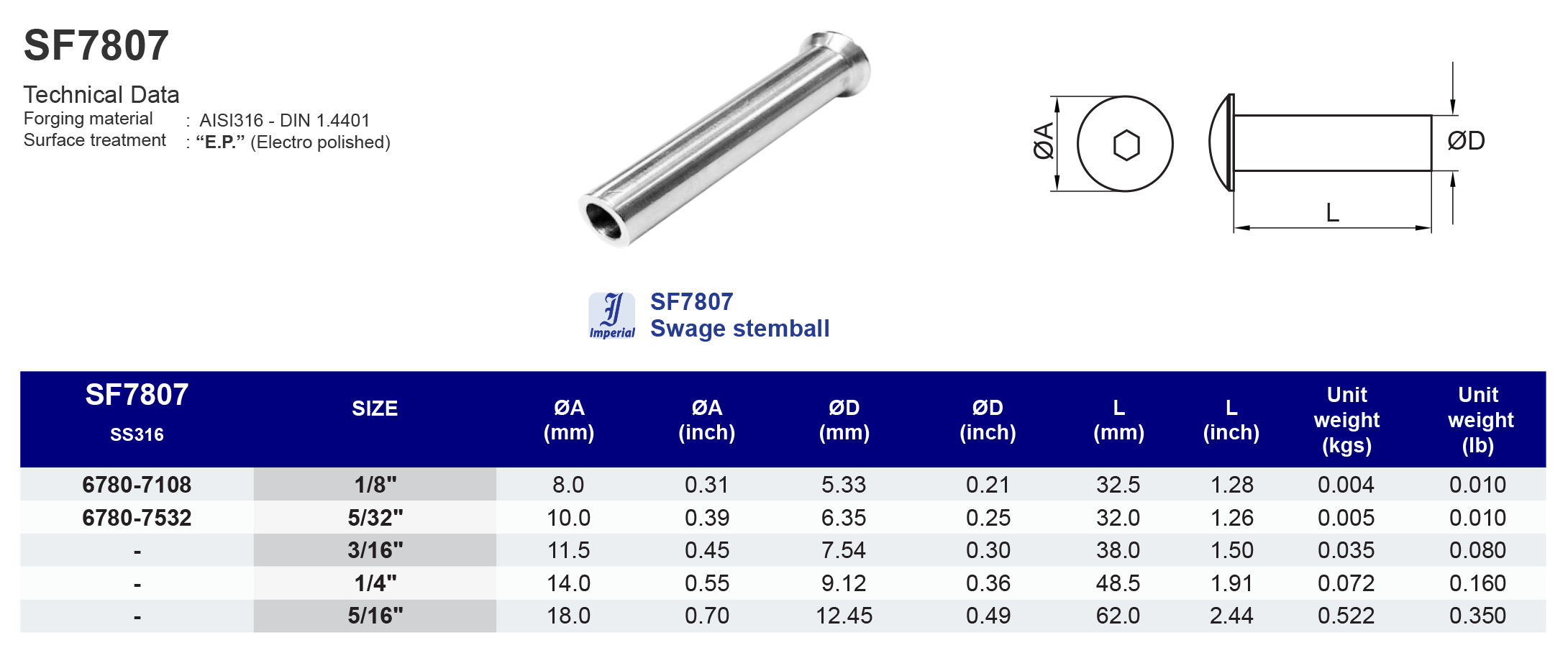

SF7807 drawing

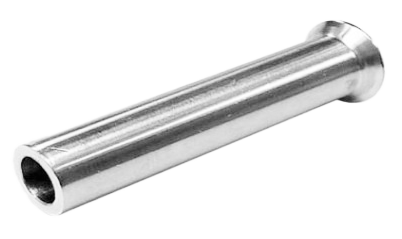

SF7807 image
SS316SizeØA(mm)ØD(mm)L(mm)Weight(kgs)
678071081/8"7.875.3332.260.004
678075325/32"9.916.3531.750.005
678073163/16"11.437.3737.850.035
678071041/4"13.978.8948.260.072
678075165/16"17.7812.4561.980.522
SS316SizeØA(inch)ØD(inch)L(inch)Weight(lb)
678071081/8"0.310.211.270.030
678075325/32"0.390.251.250.050
678073163/16"0.450.291.490.080
678071041/4"0.550.351.900.160
678075165/16"0.700.492.440.350
