Description
Technical Data:
Casting material : AISI316 - DIN 1.4401
Surface treatment : “E.P.” (Electro polished)
Note : Standard safety factor for working load
is 1/4 of breaking load.

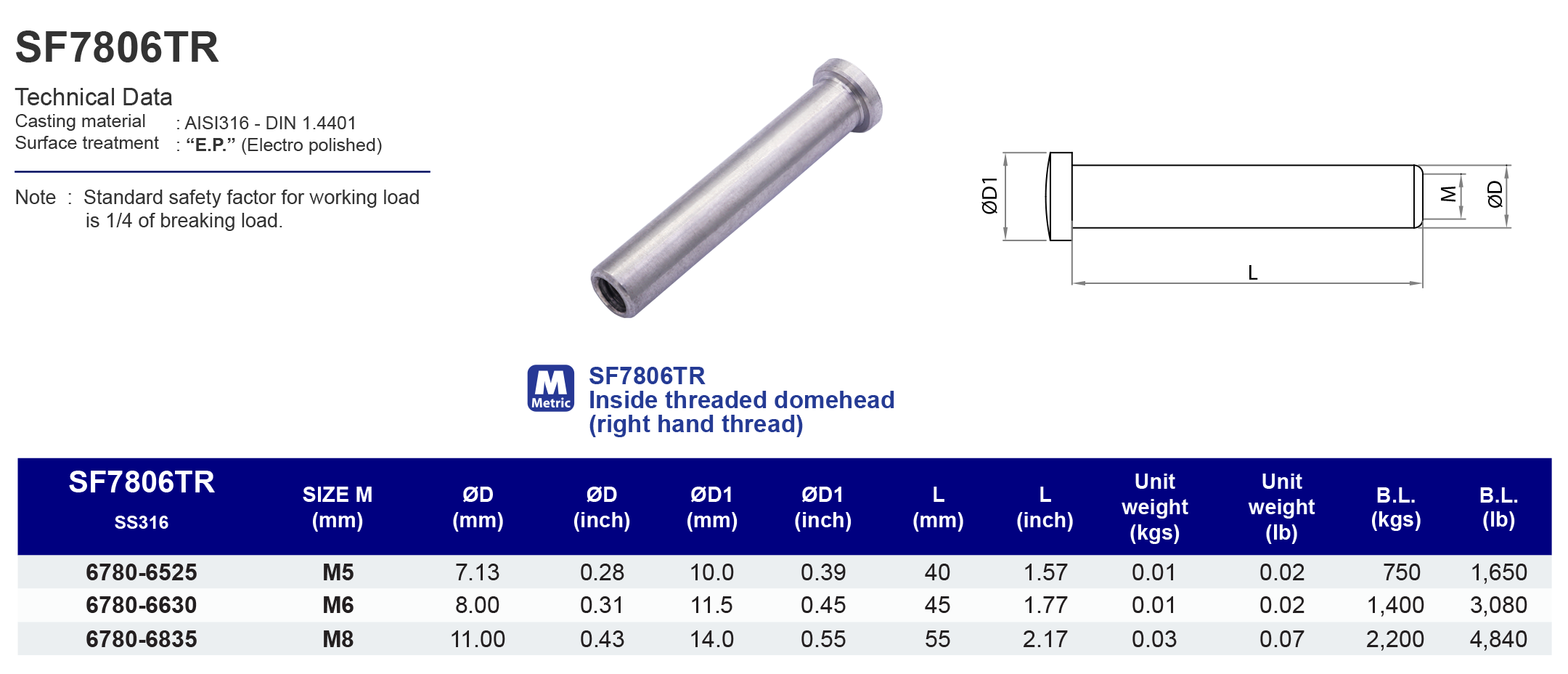

Model
SF7806TR

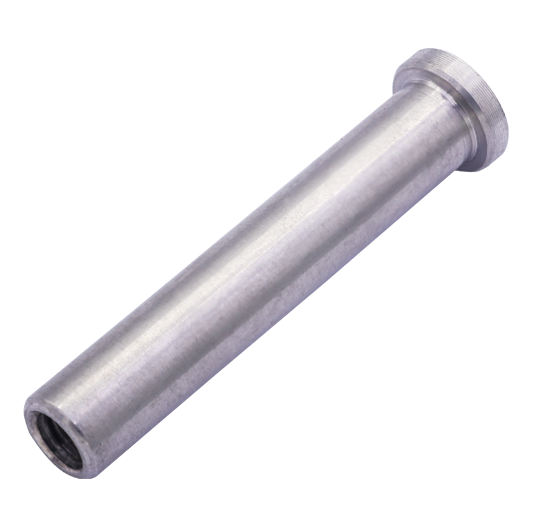

Inside threaded domehead (right hand thread)
316 ss
| SS316 | SIZE M (mm) | ØD (mm) | ØD1 (mm) | L (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 67806525 | M5 | 7.13 | 10.0 | 40 | 0.01 | 750 |
| 67806630 | M6 | 8.00 | 11.5 | 45 | 0.01 | 1,400 |
| 67806835 | M8 | 11.00 | 14.0 | 55 | 0.03 | 2,200 |
| SS316 | SIZE M (mm) | ØD (inch) | ØD1 (inch) | L (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 67806525 | M5 | 0.28 | 0.39 | 1.57 | 0.02 | 1,650 |
| 67806630 | M6 | 0.31 | 0.45 | 1.77 | 0.02 | 3,080 |
| 67806835 | M8 | 0.43 | 0.55 | 2.17 | 0.07 | 4,840 |
