Description
Technical Data:
Forging Material : AISI 316 - DIN 1.4401
Production : SF7805
Terminal/Toggle - Forged
Accessory - E-Ring
Surface Treatment : "M.F." (Matte finished)

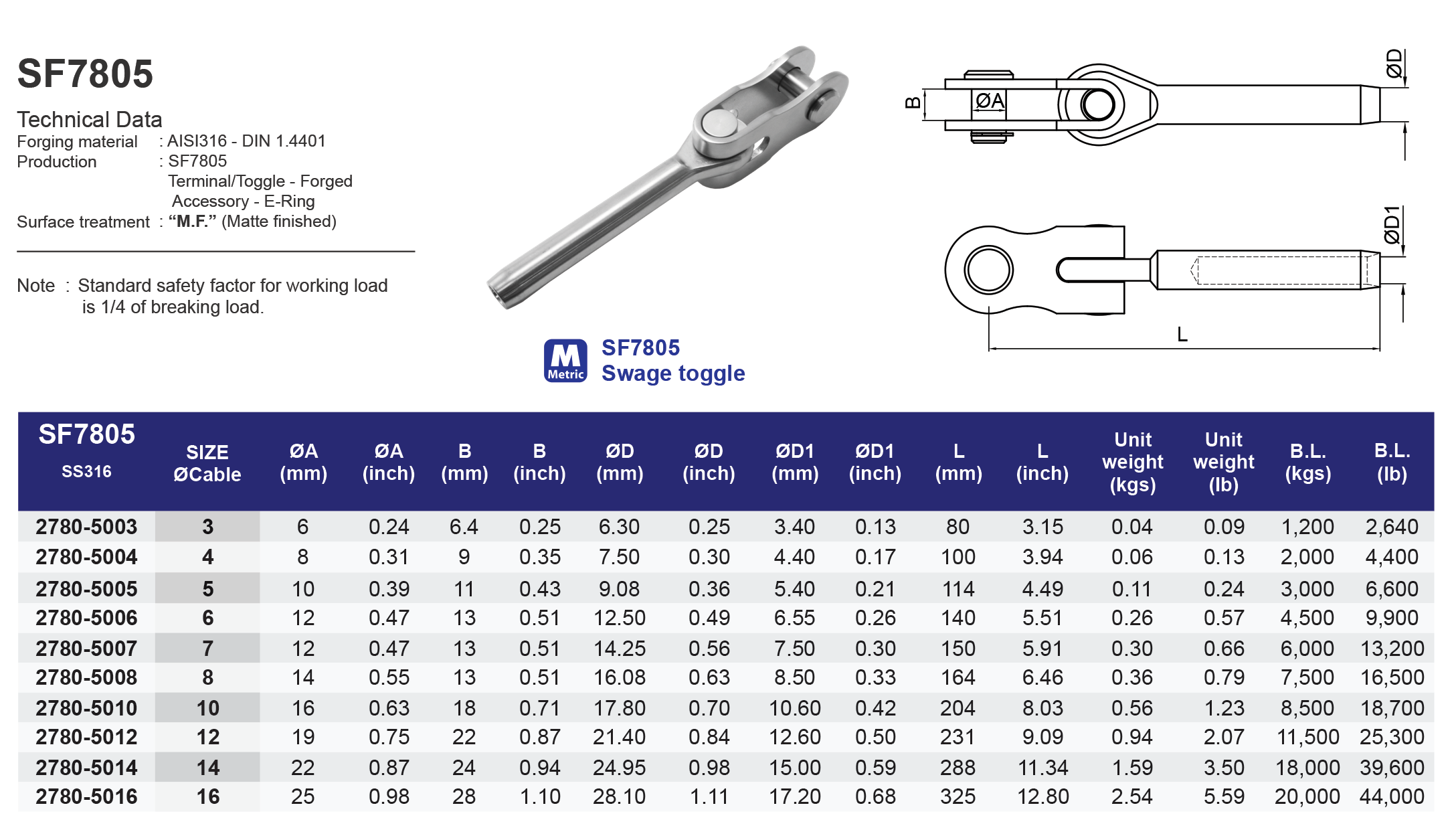

Model
SF7805
Swage Toggle
316 ss
| SS316 | Size | ØA(mm) | B(mm) | ØD(mm) | ØF(mm) | L(mm) | Weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|---|
| 27805003 | 3 | 6 | 6.4 | 6.30 | 3.30 | 80 | 0.04 | 1,200 |
| 27805004 | 4 | 8 | 9 | 7.50 | 4.30 | 100 | 0.06 | 2,000 |
| 27805005 | 5 | 10 | 11 | 9.08 | 5.30 | 114 | 0.11 | 3,000 |
| 27805006 | 6 | 12 | 13 | 12.50 | 6.30 | 140 | 0.26 | 4,500 |
| 27805007 | 7 | 12 | 13 | 14.25 | 7.40 | 150 | 0.30 | 6,000 |
| 27805008 | 8 | 14 | 13 | 16.08 | 8.40 | 164 | 0.36 | 7,500 |
| 27805010 | 10 | 16 | 18 | 17.80 | 10.50 | 204 | 0.56 | 8,500 |
| 27805012 | 12 | 19 | 22 | 21.40 | 12.50 | 231 | 0.94 | 11,500 |
| 27805014 | 14 | 22 | 24 | 24.95 | 14.90 | 288 | 1.59 | 18,000 |
| 27805016 | 16 | 25 | 28 | 28.10 | 17.10 | 325 | 2.54 | 20,000 |
| SS316 | Size | ØA(inch) | B(inch) | ØD(inch) | ØF(inch) | L(inch) | Weight (Ib) | B.L. (Ib) |
|---|---|---|---|---|---|---|---|---|
| 27805003 | 3 | 0.24 | 0.25 | 0.25 | 0.13 | 3.15 | 0.09 | 2,640 |
| 27805004 | 4 | 0.31 | 0.35 | 0.30 | 0.17 | 3.94 | 0.13 | 4,400 |
| 27805005 | 5 | 0.39 | 0.43 | 0.36 | 0.21 | 4.49 | 0.24 | 6,600 |
| 27805006 | 6 | 0.47 | 0.51 | 0.49 | 0.25 | 5.51 | 0.57 | 9,900 |
| 27805007 | 7 | 0.47 | 0.51 | 0.56 | 0.29 | 5.91 | 0.66 | 13,200 |
| 27805008 | 8 | 0.55 | 0.51 | 0.63 | 0.33 | 6.46 | 0.79 | 16,500 |
| 27805010 | 10 | 0.63 | 0.71 | 0.70 | 0.41 | 8.03 | 1.23 | 18,700 |
| 27805012 | 12 | 0.75 | 0.87 | 0.84 | 0.49 | 9.09 | 2.07 | 25,300 |
| 27805014 | 14 | 0.87 | 0.94 | 0.98 | 0.59 | 11.34 | 3.50 | 39,600 |
| 27805016 | 16 | 0.98 | 1.10 | 1.11 | 0.67 | 12.80 | 5.59 | 44,000 |
