Description
Technical Data:
Casting Material: AISI316 - DIN 1.4408
Production: SF7803 - Jaw - Cast Pin-Forged
Surface Treatment :“E.P.” (Electro polished)
Model
SF7803

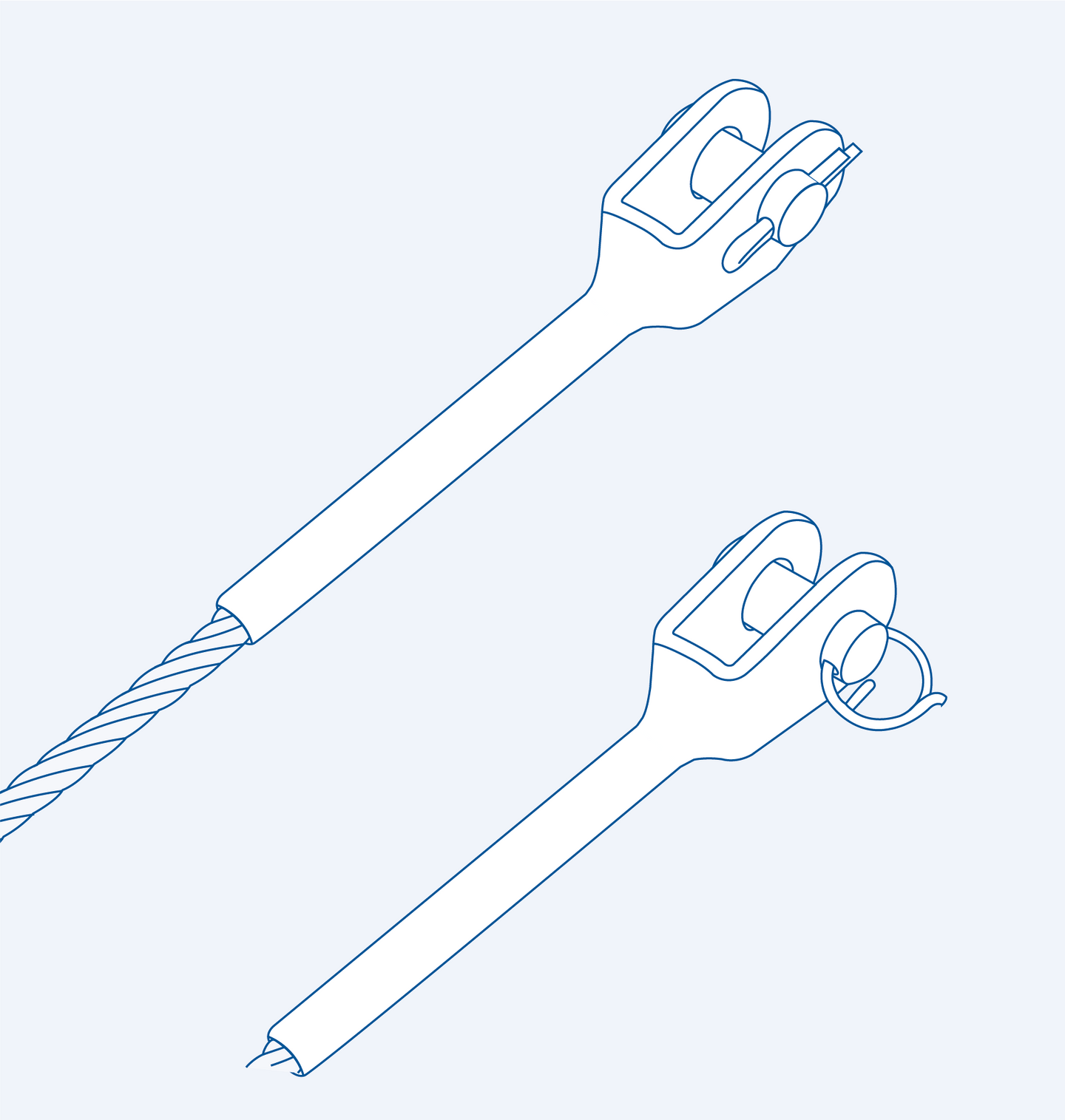

Swage Forks
316 ss
| SS316 | Size ØCable (mm) | ØA (mm) | B (mm) | ØD (mm) | ØF (mm) | L (mm) | L1 (mm) | Accessory | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|---|---|---|
| 67803002 | 2 | 5.00 | 7 | 5.53 | 2.2 | 53.5 | 32 | Ring | 0.01 | 700 |
| 67803025 | 2.5 | 5.00 | 7 | 5.53 | 2.7 | 62 | 35 | Ring | 0.02 | 700 |
| 67803003 | 3 | 6.00 | 8 | 6.35 | 3.3 | 68 | 38 | Ring | 0.02 | 1,250 |
| 67803004 | 4 | 8.00 | 11 | 7.54 | 4.3 | 77 | 45 | Ring | 0.05 | 1,800 |
| 67803005 | 5 | 9.00 | 12 | 9.12 | 5.3 | 87 | 51 | Ring | 0.07 | 2,650 |
| 67803006 | 6 | 12.00 | 14.5 | 12.54 | 6.35 | 109 | 64 | Ring | 0.15 | 4,000 |
| 67803007 | 7 | 12.00 | 14.5 | 14.3 | 7.3 | 116 | 70 | Ring | 0.17 | 5,800 |
| 67803008 | 8 | 14.28 | 15 | 16.13 | 8.4 | 148 | 80 | Cotter pin | 0.29 | 6,500 |
| 67803010 | 10 | 16.00 | 17 | 17.85 | 10.5 | 154 | 90 | Cotter pin | 0.36 | 9,000 |
| 67803012 | 12 | 19.00 | 20 | 21.44 | 12.5 | 176 | 105 | Cotter pin | 0.60 | 11,000 |
| 67803114 | 14 | 25.00 | 30 | 25.00 | 14.9 | 257 | 140 | Cotter pin | 1.36 | 15,000 |
| 67803116 | 16 | 25.00 | 30 | 28.17 | 17.1 | 281 | 160 | Cotter pin | 1.57 | 18,000 |
| SS316 | Size ØCable (inch) | ØA (inch) | B (inch) | ØD (inch) | ØF (inch) | L (inch) | L1 (inch) | Accessory | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|---|---|---|
| 67803332 | 3/32" | 0.20 | 0.28 | 0.22 | 0.11 | 2.44 | 1.38 | Ring | 0.04 | 1,540 |
| 67803718 | 1/8" | 0.24 | 0.31 | 0.25 | 0.14 | 2.68 | 1.50 | Ring | 0.04 | 2,750 |
| 67803532 | 5/32" | 0.31 | 0.43 | 0.30 | 0.17 | 3.03 | 1.77 | Ring | 0.09 | 3,960 |
| 67803316 | 3/16" | 0.35 | 0.47 | 0.36 | 0.20 | 3.43 | 2.01 | Ring | 0.15 | 5,830 |
| 67803732 | 7/32" | 0.35 | 0.47 | 0.43 | 0.23 | 3.66 | 2.24 | Ring | 0.29 | 6,600 |
| 67803714 | 1/4" | 0.47 | 0.57 | 0.49 | 0.26 | 4.29 | 2.52 | Ring | 0.33 | 8,800 |
| 67803615 | 5/16" | 0.56 | 0.59 | 0.64 | 0.33 | 5.83 | 3.15 | Cotter pin | 0.64 | 15,950 |
| 67803318 | 3/8" | 0.63 | 0.67 | 0.70 | 0.39 | 6.06 | 3.54 | Cotter pin | 0.81 | 18,480 |
