Description
Technical Data:
Forging Material:
AISI316 - DIN 1.4401
Production:
SF78021N - Eye - Forged
Surface Treatment:
Matte finished / Passivated

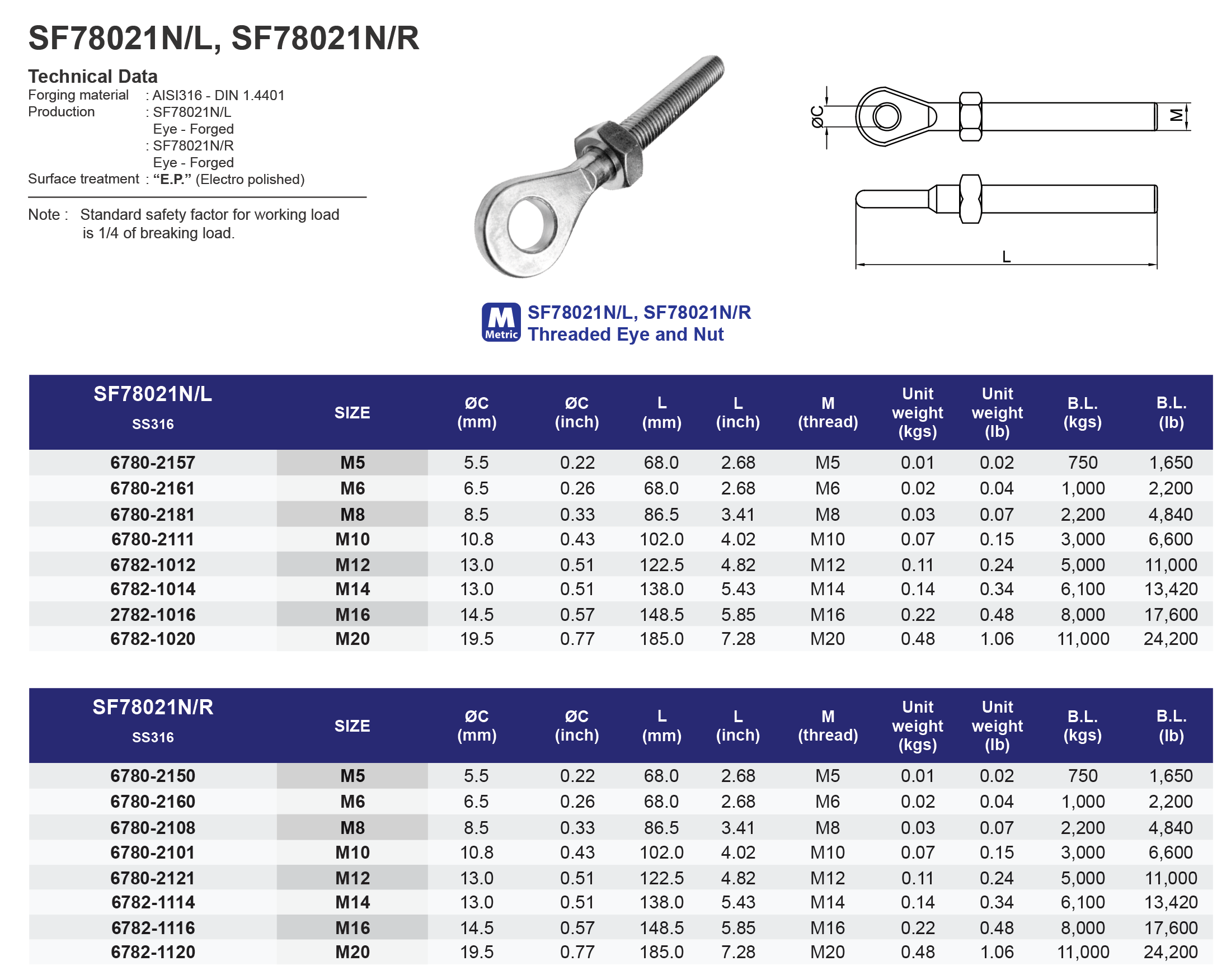

Model
SF78021N/L ,SF78021N/R
Threaded Eye and Nut
316 ss
| SS316 | Size | ØC(mm) | L(mm) | M(thread) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 67802157 | M5 | 5.5 | 68.0 | M5 (LH) | 0.01 | 750 |
| 67802161 | M6 | 6.5 | 68.0 | M6 (LH) | 0.02 | 1,000 |
| 67802181 | M8 | 8.5 | 86.5 | M8 (LH) | 0.03 | 2,200 |
| 67802111 | M10 | 10.8 | 102.0 | M10 (LH) | 0.07 | 3,000 |
| 67821012 | M12 | 13.0 | 122.5 | M12 (LH) | 0.11 | 5,000 |
| 67821014 | M14 | 13.0 | 138.0 | M14 (LH) | 0.14 | 6,100 |
| 27821016 | M16 | 14.5 | 148.5 | M16 (LH) | 0.22 | 8,000 |
| 67821020 | M20 | 19.5 | 185.0 | M20 (LH) | 0.48 | 11,000 |
| 67802150 | M5 | 5.5 | 68 | M5 (RH) | 0.01 | 750 |
| 67802160 | M6 | 6.5 | 68 | M6 (RH) | 0.02 | 1,000 |
| 67802108 | M8 | 8.5 | 86.5 | M8 (RH) | 0.03 | 2,200 |
| 67802101 | M10 | 10.8 | 102 | M10 (RH) | 0.07 | 3,000 |
| 67802121 | M12 | 13.0 | 122.5 | M12 (RH) | 0.11 | 5,000 |
| 67821114 | M14 | 13.0 | 138 | M14 (RH) | 0.14 | 6,100 |
| 67821116 | M16 | 14.5 | 148.5 | M16 (RH) | 0.22 | 8,000 |
| 67821120 | M20 | 19.5 | 185 | M20 (RH) | 0.48 | 11,000 |
| SS316 | Size | ØC(inch) | L(inch) | M(thread) | Unit weight (Ib) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 67802157 | M5 | 0.22 | 2.68 | M5 (LH) | 0.02 | 413 |
| 67802161 | M6 | 0.26 | 2.68 | M6 (LH) | 0.04 | 550 |
| 67802181 | M8 | 0.33 | 3.41 | M8 (LH) | 0.07 | 1,210 |
| 67802111 | M10 | 0.43 | 4.02 | M10 (LH) | 0.15 | 1,650 |
| 67821012 | M12 | 0.51 | 4.82 | M12 (LH) | 0.24 | 2,750 |
| 67821014 | M14 | 0.51 | 5.43 | M14 (LH) | 0.34 | 3,355 |
| 27821016 | M16 | 0.57 | 5.85 | M16 (LH) | 0.48 | 4,400 |
| 67821020 | M20 | 0.77 | 7.28 | M20 (LH) | 1.06 | 6,050 |
| 67802150 | M5 | 0.22 | 68 | M5 (RH) | 0.01 | 750 |
| 67802160 | M6 | 0.26 | 68 | M6 (RH) | 0.02 | 1,000 |
| 67802108 | M8 | 0.33 | 86.5 | M8 (RH) | 0.03 | 2,200 |
| 67802101 | M10 | 0.43 | 102 | M10 (RH) | 0.07 | 3,000 |
| 67802121 | M12 | 0.51 | 122.5 | M12 (RH) | 0.11 | 5,000 |
| 67821114 | M14 | 0.51 | 138 | M14 (RH) | 0.14 | 6,100 |
| 67821116 | M16 | 0.57 | 148.5 | M16 (RH) | 0.22 | 8,000 |
| 67821120 | M20 | 0.77 | 185 | M20 (RH) | 0.48 | 11,000 |
