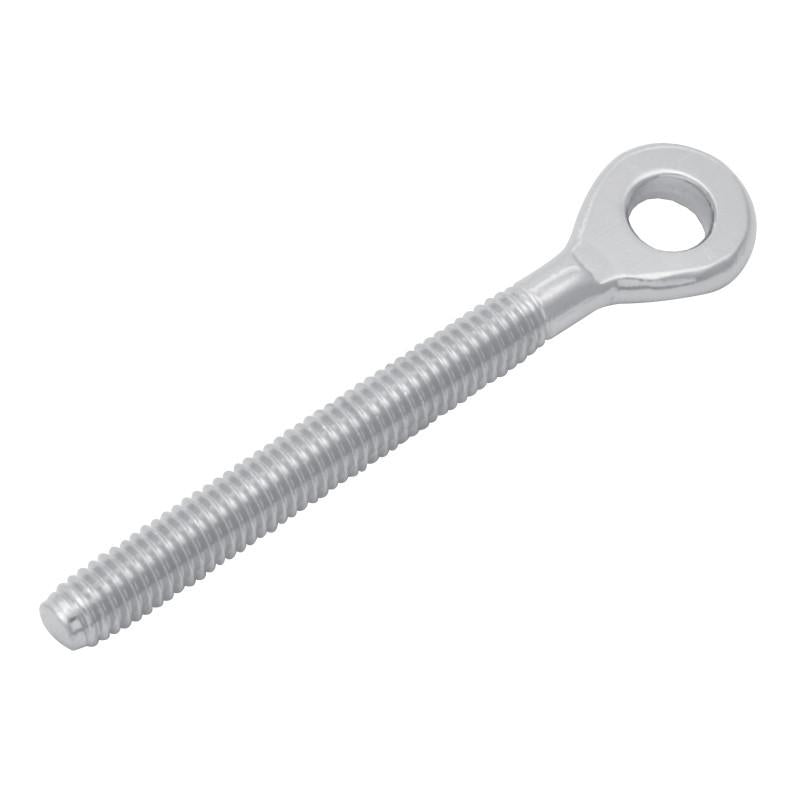

SF78021L , SF78021R Threaded Eye
SF78021L , SF78021R Threaded Eye
Roll over image to zoom in Click on image to zoom
SF78021L , SF78021R Threaded EyeSF78021L , SF78021R Threaded Eye

SF78021L , SF78021R Threaded Eye

SKU: 67802256
Size (mm): M5 (LH)
Price:

Login to view the price.

Stock:
Login to view stock.
Log in to Add to Cart

Description

Technical Data:
Forging Material:
AISI316 - DIN 1.4401
Production:
SF78021 - Eye - Forged
Surface Treatment:
Electro polished / Passivated

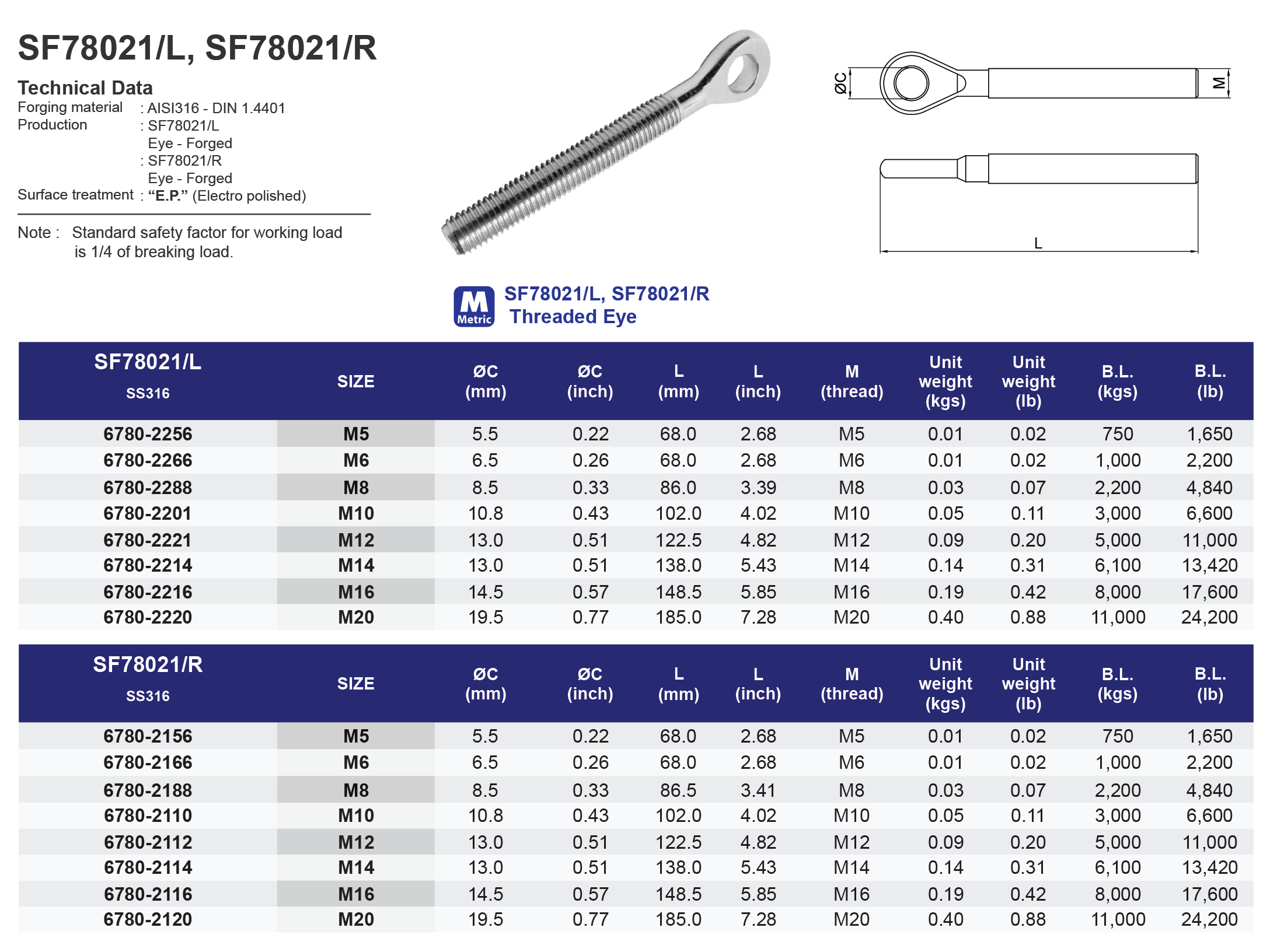

DATA SHEET DOWNLOAD


Model

SF78021/L ,SF78021/R

Threaded Eye
316 ss

SF78021_L drawing

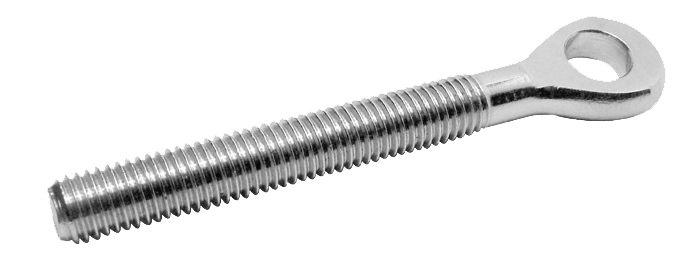

SF78021_L image
SS316SizeØC(mm)L(mm)m(thread)Unit weight (kgs)B.L. (kgs)
67802256M5 5.568.0M5 (LH)0.01750
67802266M66.568.0M6 (LH)0.011,000
67802288M88.586.5M8 (LH)0.032,200
67802201M1010.8102.0M10 (LH)0.053,000
67802221M1213.0122.5M12 (LH)0.095,000
67802214M1413.0138.0M14 (LH)0.146,100
67802216M1614.5148.5M16 (LH)0.198,000
67802220M2019.5185.0M20 (LH)0.4011,000
67802156M55.568.0M5 (RH)0.01750
67802166M66.568.0M6 (RH)0.011,000
67802188M88.586.5M8 (RH)0.032,200
67802110M1010.8102.0M10 (RH)0.053,000
67802112M1213.0122.5M12 (RH)0.095,000
67802114M1413.0138.0M14 (RH)0.146,100
67802116M1614.5148.5M16 (RH)0.198,000
67802120M2019.5185.0M20 (RH)0.4011,000
SS316SizeØC(inch)L(inch)m(thread)Unit weight (Ib)B.L. (lb)
67802256M50.222.68M5 (LH)0.021,650
67802266M60.262.68M6 (LH)0.022,200
67802288M80.333.41M8 (LH)0.074,840
67802201M100.434.02M10 (LH)0.116,600
67802221M120.514.82M12 (LH)0.2011,000
67802214M140.515.43M14 (LH)0.3113,420
67802216M160.575.85M16 (LH)0.4217,600
67802220M200.777.28M20 (LH)0.8824,200
67802156M50.222.68M5 (RH)0.021,650
67802166M60.262.68M6 (RH)0.022,200
67802188M80.333.41M8 (RH)0.074,840
67802110M100.434.02M10 (RH)0.116,600
67802112M120.514.82M12 (RH)0.2011,000
67802114M140.515.43M14 (RH)0.3113,420
67802116M160.575.85M16 (RH)0.4217,600
67802120M200.777.28M20 (RH)0.8824,200
