Description
Technical Data:
Forging material : AISI 316 - DIN 1.4401
Production : SF7801 - Stud - Forged
Surface Treatment :“M.F.” (Matte finished)

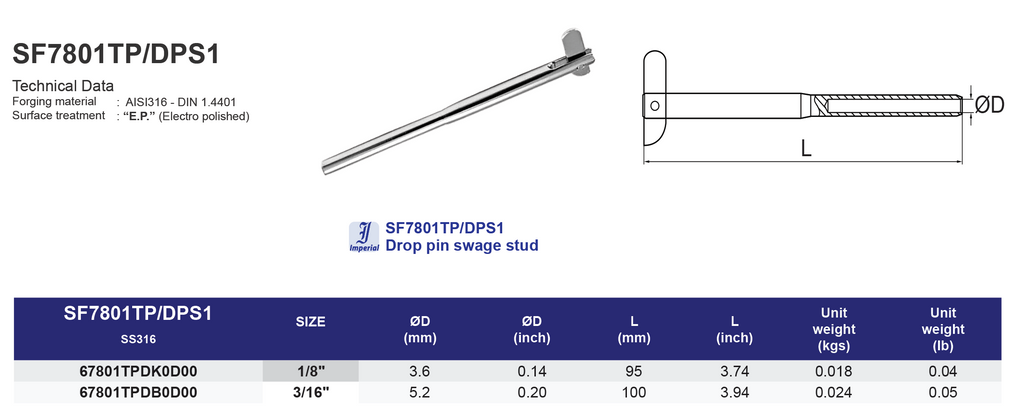

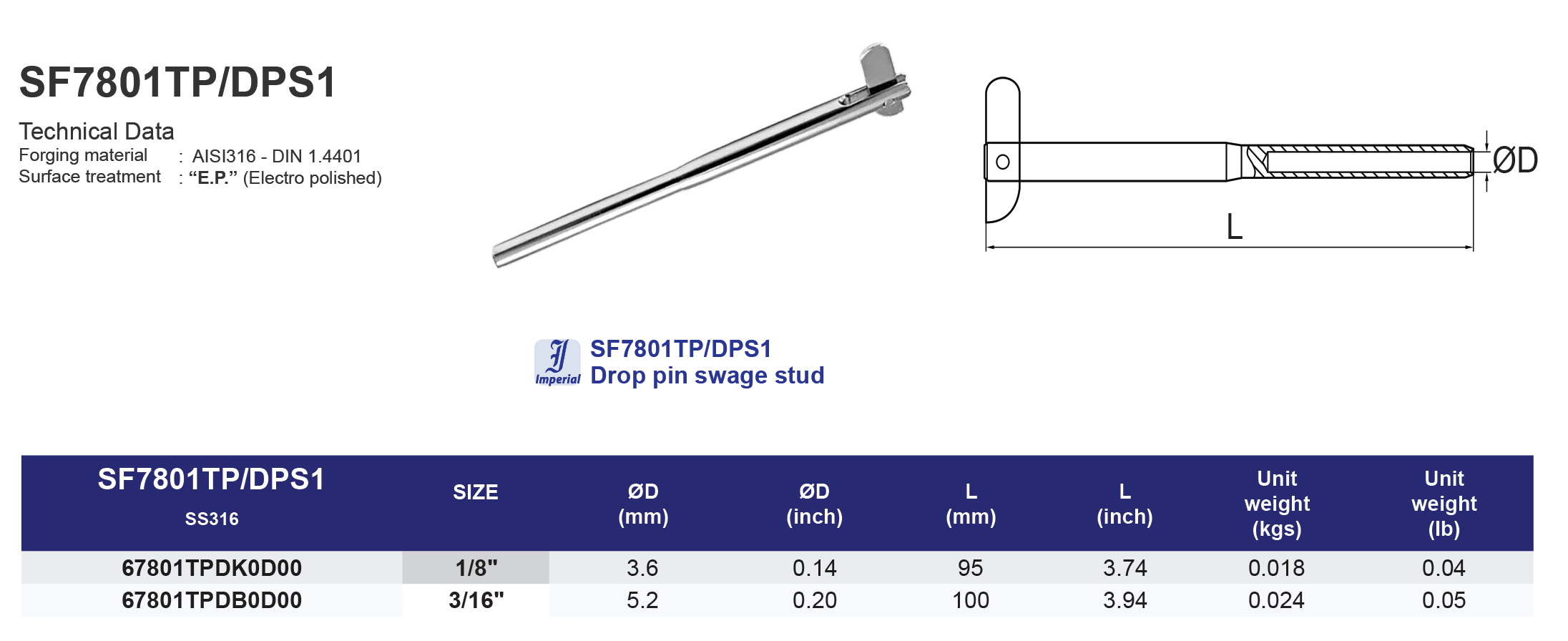

Model
SF7801TP/DPS1
Drop pin swage stud
316 ss
| SS316 | Size | ØD(mm) | L(mm) | Weight(kgs) |
|---|---|---|---|---|
| 67801TPDK0D00 | 1/8" | 3.6 | 95 | 0.018 |
| 67801TPDB0D00 | 3/16" | 5.2 | 100 | 0.024 |
| SS316 | Size | ØD(inch) | L(inch) | Weight(lb) |
|---|---|---|---|---|
| 67801TPDK0D00 | 1/8" | 0.14 | 3.74 | 0.04 |
| 67801TPDB0D00 | 3/16" | 0.20 | 3.94 | 0.05 |
