SF7801/IL - Inside threaded terminal - Left Hand - 316 (CLEARANCE SALE)

SKU: 67801387

Size: M5 x 3.0 (Min 233pcs)
Price:

Login to view the price.

Stock:
Login to view stock.

Description

Technical Data:
Casting material :
AISI316 - DIN 1.4401
Surface Treatment:
“M.F.” (Matte finished)

DATA SHEET DOWNLOAD


Model

SF7801/IL

Inside threaded terminal (right hand thread), Inside threaded terminal (left hand thread)
316 ss

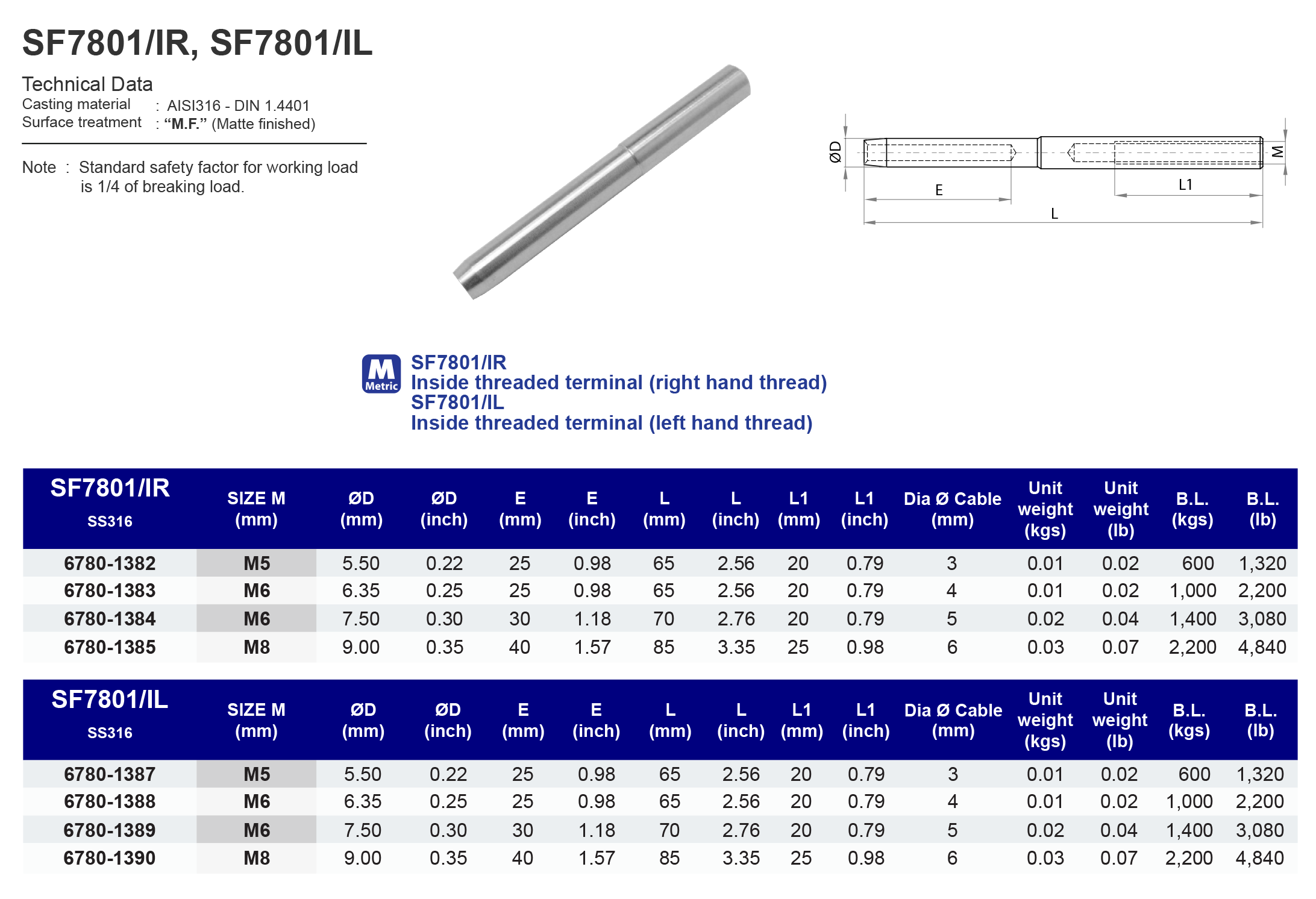

SF7801_ILdrawing
SF7801_IL image
SS316SIZE M (mm)ØD (mm)E (mm)L (mm)L1 (mm)Dia Ø Cable (mm)Unit weight (kgs)B.L. (kgs)
67801387M55.525652030.01600
67801388M66.3525652040.011,000
67801389M67.530702050.021,400
67801390M8940852560.032,200
SS316SIZE M (mm)ØD (inch)E (inch)L (inch)L1 (inch)Dia Ø Cable (mm)Unit weight (lb)B.L. (lb)
67801387M50.220.982.560.7930.021,320
67801388M60.250.982.560.7940.022,200
67801389M60.31.182.760.7950.043,080
67801390M80.351.573.350.9860.074,840
