SF7801/HS-RH Extra long hand swage stud (RH)

SKU: 607801/RK0D00

Size (Cable) Inch: 1/8" x 1/4"UNC
Price:

Login to view the price.

Stock:
Login to view stock.

Description

Technical Data:
Forging material : AISI 316 - DIN 1.4401
Production : SF7801_HS-RH - Stud - Forged
Surface Treatment :“M.F.” (Matte finished)

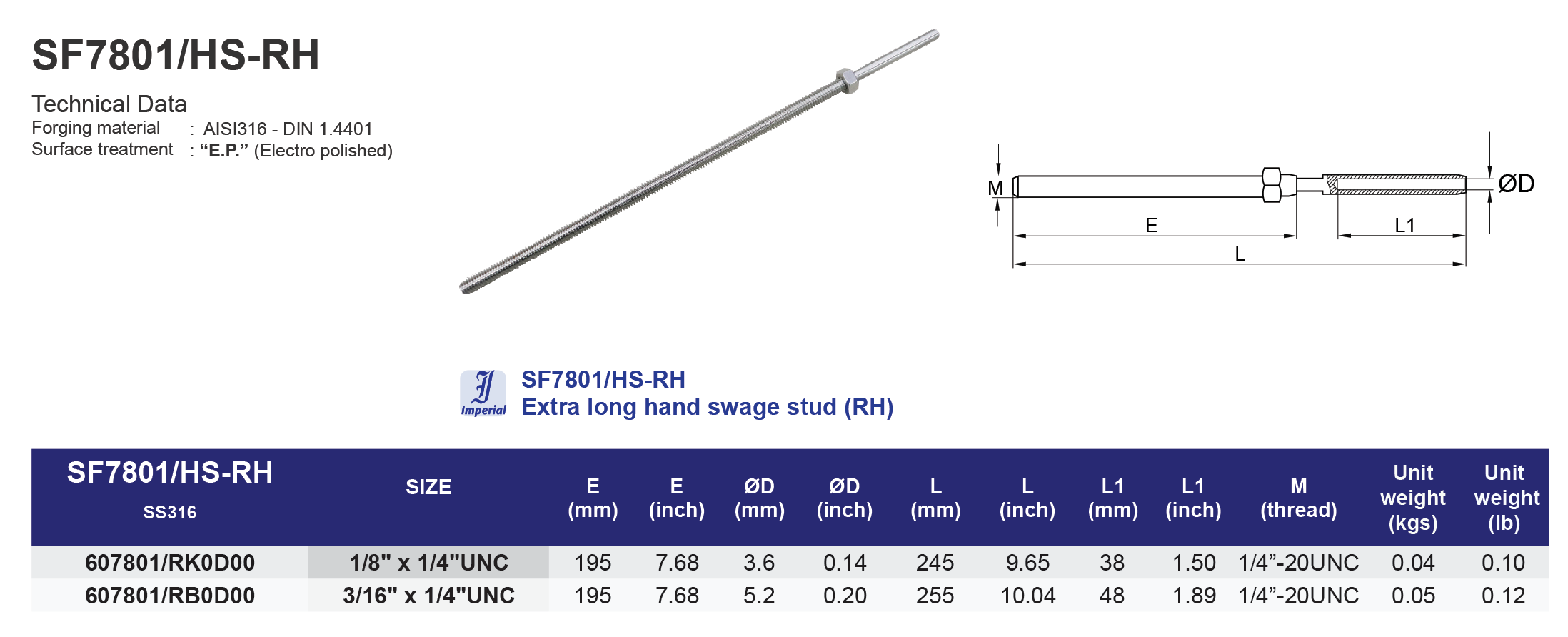

DATA SHEET DOWNLOAD











Model

SF7801/HS-RH

Extra long hand swage stud (RH)
316 ss

SF7801_HS-RHdrawing
SF7801_HS-RH image
SS316SizeE(mm)ØD(mm)L(mm)L1 (mm)M (thread)Weight (kgs)
607801/RK0D001/8" x 1/4"UNC195.071/8"245.1138.351/4"-20UNC0.04
607801/RB0D003/16" x 1/4"UNC195.073/16"255.0248.011/4"-20UNC0.05
SS316SizeE(inch)ØD(inch)L(inch)L1 (inch)M (thread)Weight (lb)
607801/RK0D001/8" x 1/4"UNC7.681/8"9.651.511/4"-20UNC0.10
607801/RB0D003/16" x 1/4"UNC7.683/16"10.041.891/4"-20UNC0.12
