Description
Technical Data:
Forging Material:
AISI 316 - DIN 1.4401
Surface Treatment: Matt Finished

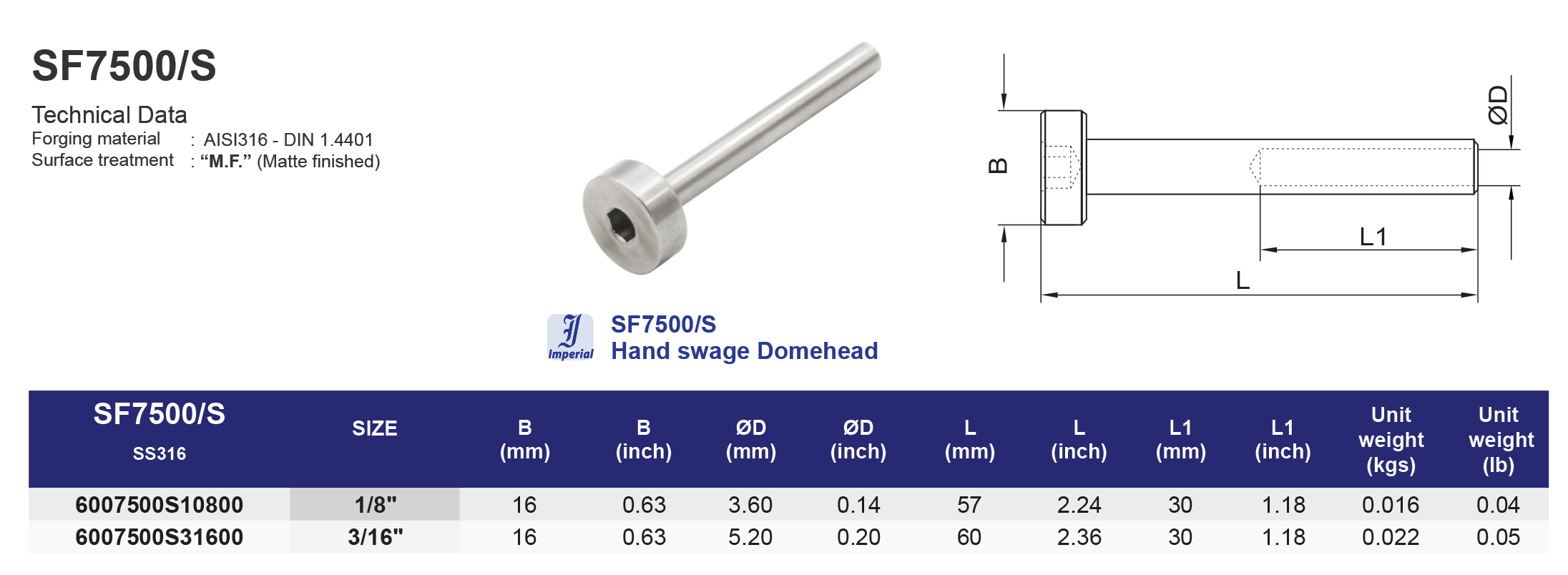

Model
SF7500/S

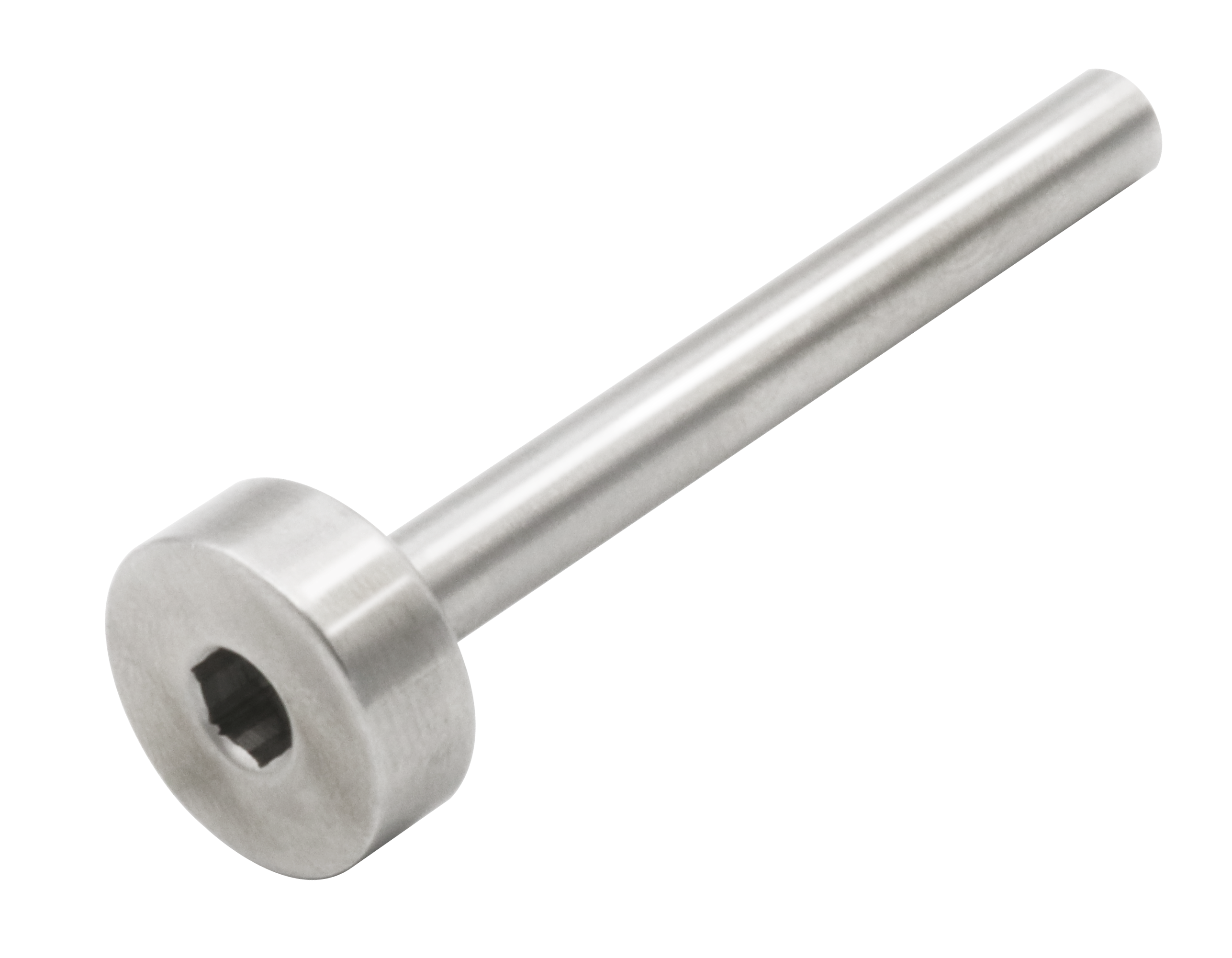

Hand swage Domehead
316 ss
| SS316 | Size | B(mm) | ØD (mm) | L(mm) | L1(mm) | Weight (kgs) |
|---|---|---|---|---|---|---|
| 6007500S10800 | 1/8" | 16 | 3.60 | 57 | 30 | 0.016 |
| 6007500S31600 | 3/16" | 16 | 5.20 | 60 | 30 | 0.022 |
| SS316 | Size | B(inch) | ØD (inch) | L(inch) | L1(inch) | Weight (lb) |
|---|---|---|---|---|---|---|
| 6007500S10800 | 1/8" | 0.63 | 0.14 | 2.24 | 1.18 | 0.04 |
| 6007500S31600 | 3/16" | 0.63 | 0.20 | 2.36 | 1.18 | 0.05 |
