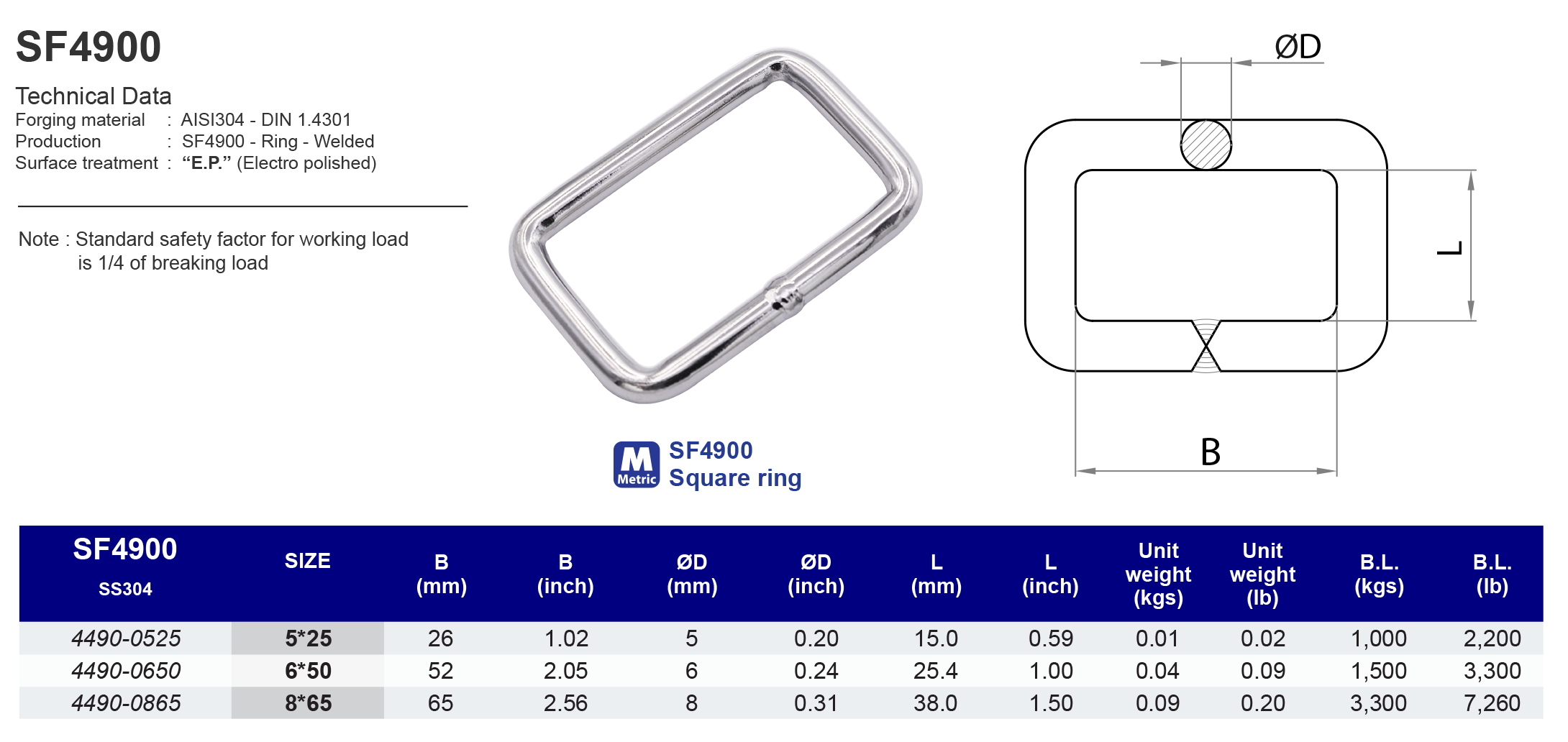

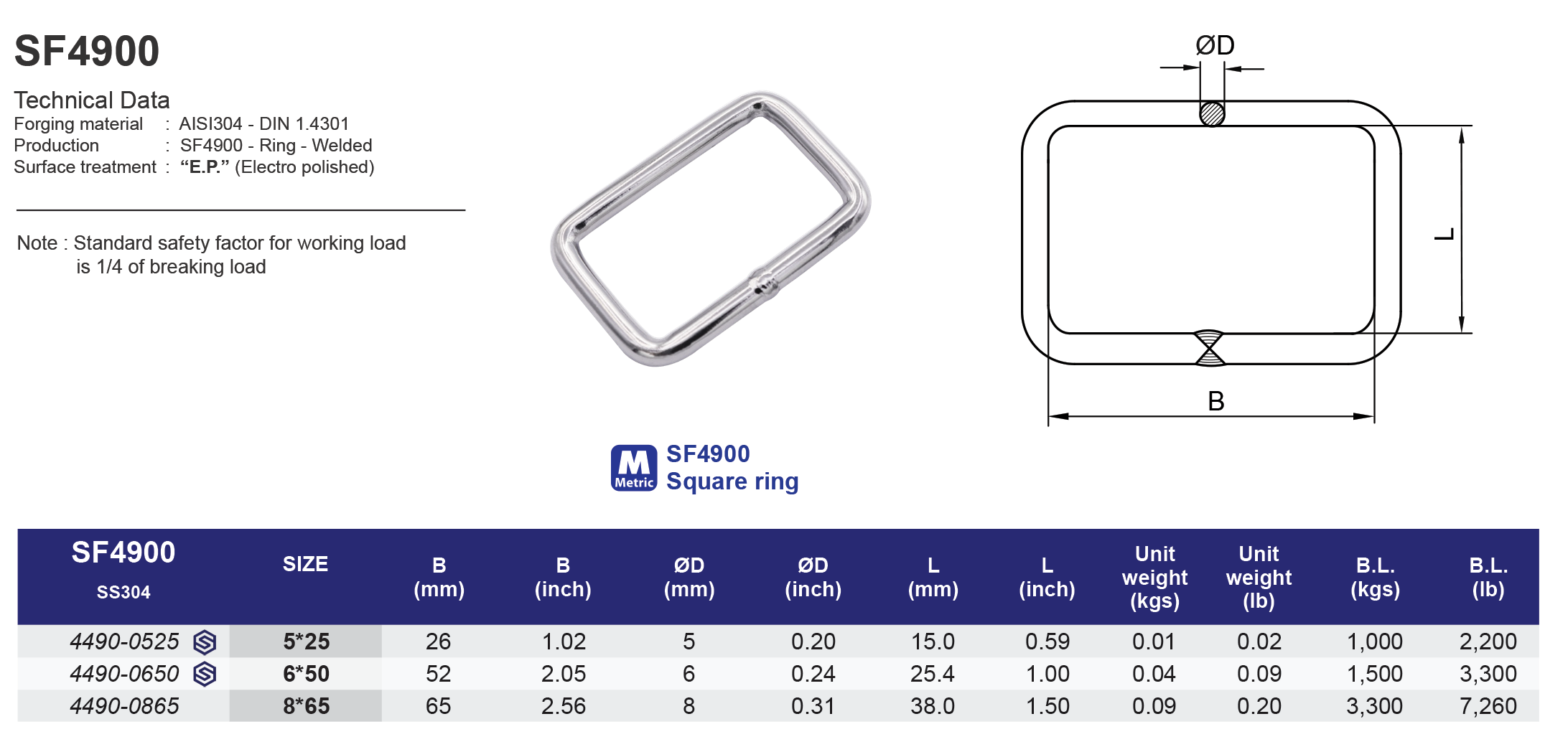

Description
Technical Data:
Forging Material: AISI304 - DIN 1.4301
Production: SF4900 - Ring - Welded
Surface Treatment: “E.P.” (Electro polished) Note : Standard safety factor for working load is 1/4 of breaking load
Model
SF4900

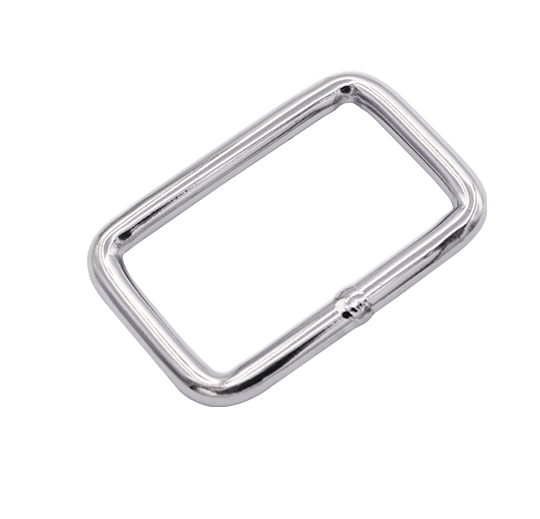

Square ring
304 ss
| SS304 | Size | B (mm) | ØD (mm) | L (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 44900525 | 5*25 | 26 | 5 | 15 | 0.01 | 1,000 |
| 44900650 | 6*50 | 52 | 6 | 25.4 | 0.04 | 1,500 |
| 44900865 | 8*65 | 65 | 8 | 38 | 0.09 | 3,300 |
| SS304 | Size | B (inch) | ØD (inch) | L (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 44900525 | 3/16" x 1" | 1.02 | 0.2 | 0.59 | 0.02 | 2,200 |
| 44900650 | 1/4" x 2" | 2.05 | 0.24 | 1.00 | 0.09 | 3,300 |
| 44900865 | 5/16" x 2-9/16" | 2.56 | 0.31 | 1.50 | 0.20 | 7,260 |
