Description
Technical Data:
Casting Material:
AISI316 - DIN 1.4401
Production:
SF414 - Thimble - Forged
Surface Treatment:
“E.P.” (Electro polished)

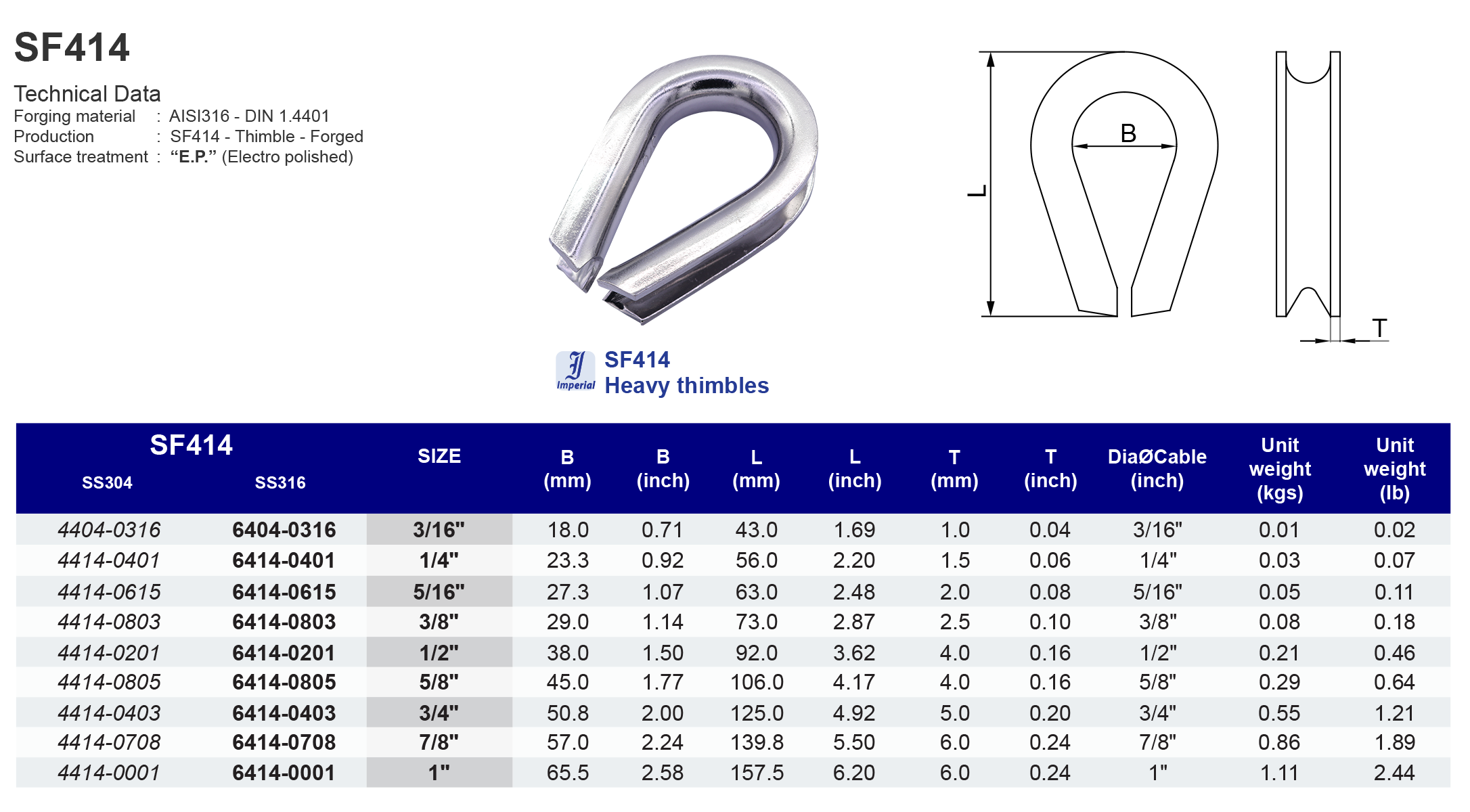

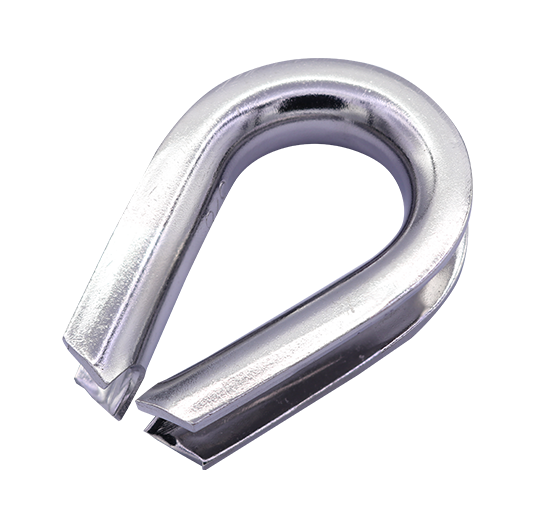

Model
SF414
Heavy thimbles
316 ss
| SS316 | SIZE | B (mm) | L (mm) | T (mm) | DiaØ Cable (inch) | Unit weight (kgs) |
|---|---|---|---|---|---|---|
| 64040316 | 3/16" | 18.0 | 43 | 1 | 3/16" | 0.01 |
| 64140401 | 1/4" | 23.3 | 56 | 1.5 | 1/4" | 0.03 |
| 64140615 | 5/16" | 27.3 | 63 | 2 | 5/16" | 0.05 |
| 64140803 | 3/8" | 29.0 | 73 | 2.5 | 3/8" | 0.08 |
| 64140201 | 1/2" | 38.0 | 92 | 4 | 1/2" | 0.21 |
| 64140805 | 5/8" | 45.0 | 106 | 4 | 5/8" | 0.29 |
| 64140403 | 3/4" | 50.8 | 125 | 5 | 3/4" | 0.55 |
| 64140708 | 7/8" | 57.0 | 139.8 | 6 | 7/8" | 0.86 |
| 64140001 | 1" | 65.5 | 157.5 | 6 | 1" | 1.11 |
| SS316 | SIZE | B (inch) | L (inch) | T (inch) | DiaØ Cable (inch) | Unit weight (lb) |
|---|---|---|---|---|---|---|
| 64040316 | 3/16" | 0.71 | 1.69 | 0.04 | 3/16" | 0.02 |
| 64140401 | 1/4" | 0.92 | 2.20 | 0.06 | 1/4" | 0.07 |
| 64140615 | 5/16" | 1.07 | 2.48 | 0.08 | 5/16" | 0.11 |
| 64140803 | 3/8" | 1.14 | 2.87 | 0.10 | 3/8" | 0.18 |
| 64140201 | 1/2" | 1.50 | 3.62 | 0.16 | 1/2" | 0.46 |
| 64140805 | 5/8" | 1.77 | 4.17 | 0.16 | 5/8" | 0.64 |
| 64140403 | 3/4" | 2.00 | 4.92 | 0.20 | 3/4" | 1.21 |
| 64140708 | 7/8" | 2.24 | 5.50 | 0.24 | 7/8" | 1.89 |
| 64140001 | 1" | 2.58 | 6.20 | 0.24 | 1" | 2.44 |
