Description
Technical Data:
Forging Material: AISI304 - DIN 1.4301
AISI316 - DIN 1.4401
Production: SF413 - Bolt - Forged
Surface Treatment: “E.P.” (Electro polished)
Model
SF413

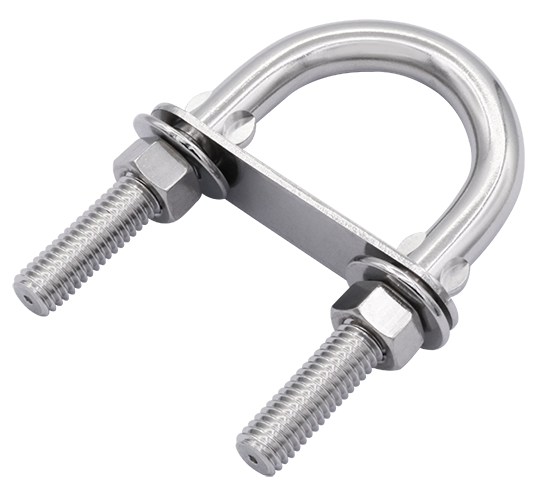

U-bolt (with washer and nut)
316 ss
SS316 | Size | B (mm) | ØD (mm) | L (mm) | L1 (mm) | M (thread) | Unit weight (kgs) |
---|---|---|---|---|---|---|---|
64130460 | 4*60 | 30 | 4 | 62 | 30 | M4 | 0.02 |
64130580 | 5*80 | 35 | 5 | 78 | 40 | M5 | 0.03 |
64130690 | 6*90 | 35 | 6 | 90 | 45 | M6 | 0.05 |
64130880 | 8*80 | 35 | 7 | 80 | 40 | M8 | 0.08 |
64130810 | 8*100 | 35 | 7 | 100 | 50 | M8 | 0.09 |
64131090 | 10*90 | 50 | 10 | 90 | 40 | M10 | 0.16 |
64131013 | 10*130 | 50 | 10 | 130 | 55 | M10 | 0.20 |
64131215 | 12*150 | 60 | 12 | 150 | 65 | M12 | 0.34 |
SS316 | Size | B (inch) | ØD (inch) | L (inch) | L1 (inch) | M (thread) | Unit weight (lb) |
---|---|---|---|---|---|---|---|
64130460 | 4*60 | 1.18 | 0.16 | 2.44 | 1.18 | M4 | 0.04 |
64130580 | 5*80 | 1.38 | 0.20 | 3.07 | 1.57 | M5 | 0.07 |
64130690 | 6*90 | 1.38 | 0.24 | 3.54 | 1.77 | M6 | 0.11 |
64130880 | 8*80 | 1.38 | 0.28 | 3.15 | 1.57 | M8 | 0.18 |
64130810 | 8*100 | 1.38 | 0.28 | 3.94 | 1.97 | M8 | 0.20 |
64131090 | 10*90 | 1.97 | 0.39 | 3.54 | 1.57 | M10 | 0.35 |
64131013 | 10*130 | 1.97 | 0.39 | 5.12 | 2.17 | M10 | 0.44 |
64131215 | 12*150 | 2.36 | 0.47 | 5.91 | 2.56 | M12 | 0.75 |
