SF3900 Fast pin - 316

SKU: 63900316

Size: 3/16"*1/2"
Price:

Login to view the price.

Stock:
Login to view stock.

Description

Technical Data:
Forging material : AISI304 - DIN 1.4301
: AISI316 - DIN 1.4401
Production : SF3900
Bar: AISI316
Spring : AISI304
Ball : AISI304
Surface treatment : “E.P.” (Electro polished)

DATA SHEET DOWNLOAD

Model

SF3900

Fast pin
316 ss

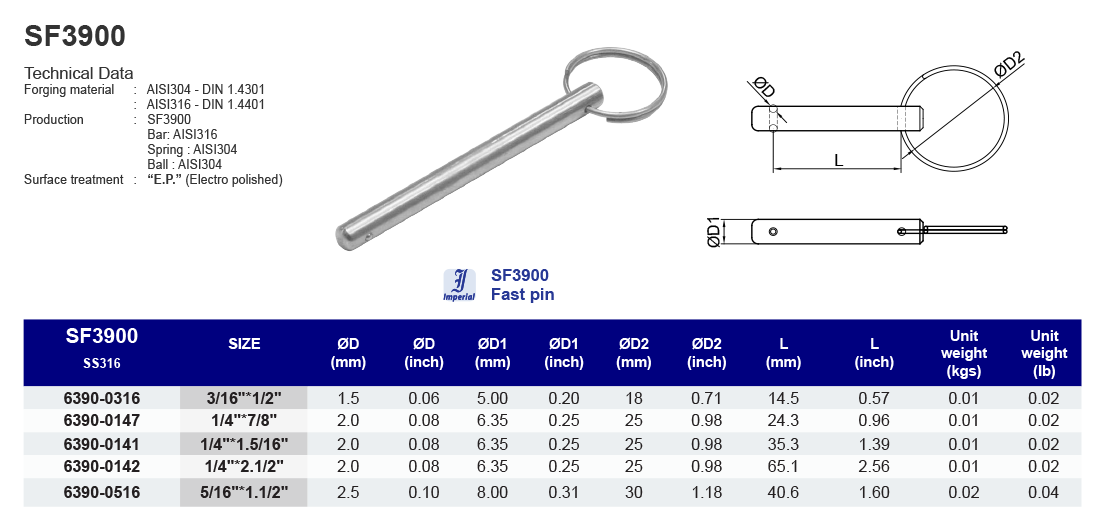

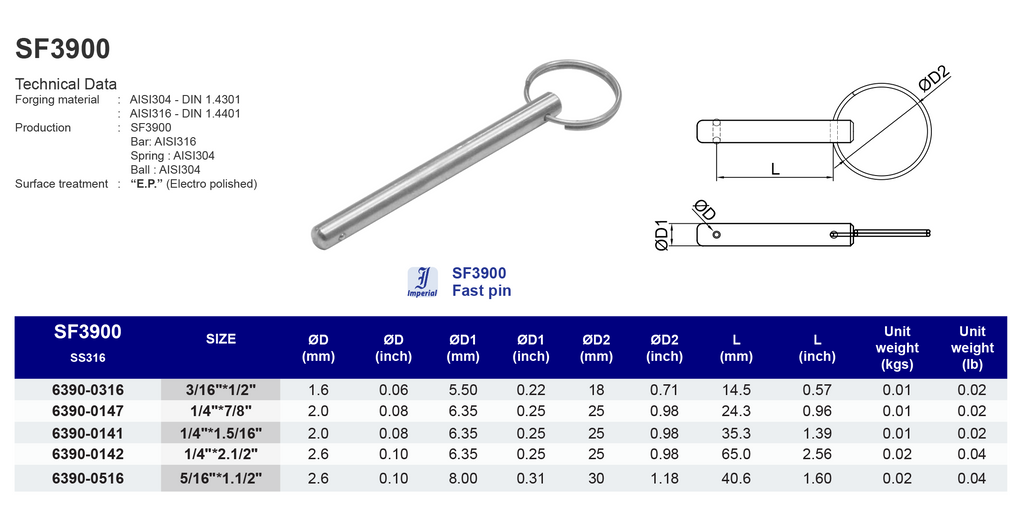

SF3900drawing

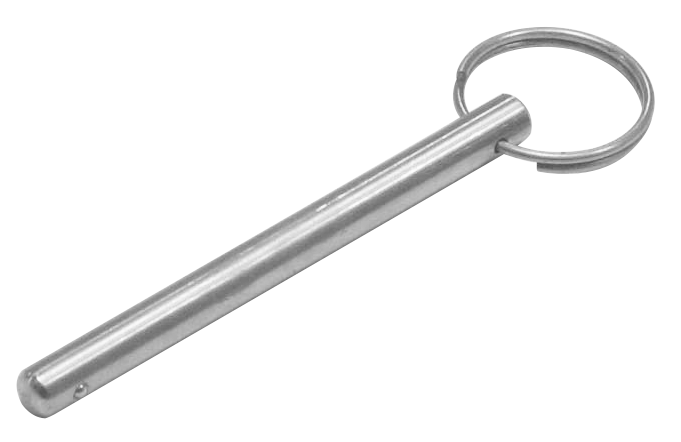

SF3900 image
SS316SIZE ØD (mm)ØD1 (mm)ØD2 (mm)L (mm)Unit weight (kgs)
639003163/16"*1/2"1.55.001814.50.01
639001471/4"*7/8"26.352524.30.01
639001411/4"*1.5/16"26.352535.30.01
639001421/4"*2.1/2"26.352565.10.01
639005165/16"*1.1/2"2.58.003040.60.02
SS316SIZE ØD (inch)ØD1 (inch)ØD2 (inch)L (inch)Unit weight (lb)
639003163/16"*1/2"0.060.200.710.570.02
639001471/4"*7/8"0.080.250.980.960.02
639001411/4"*1.5/16"0.080.250.981.390.02
639001421/4"*2.1/2"0.080.250.982.560.02
639005165/16"*1.1/2"0.100.311.181.600.04
