Description
Technical Data
Forging Material : AISI316 - DIN 1.4401
Production : Shackle - Forged , Pin - Forged
Surface Treatment : “E.P.” (Electro polished)
DATA SHEET DOWNLOAD
Model

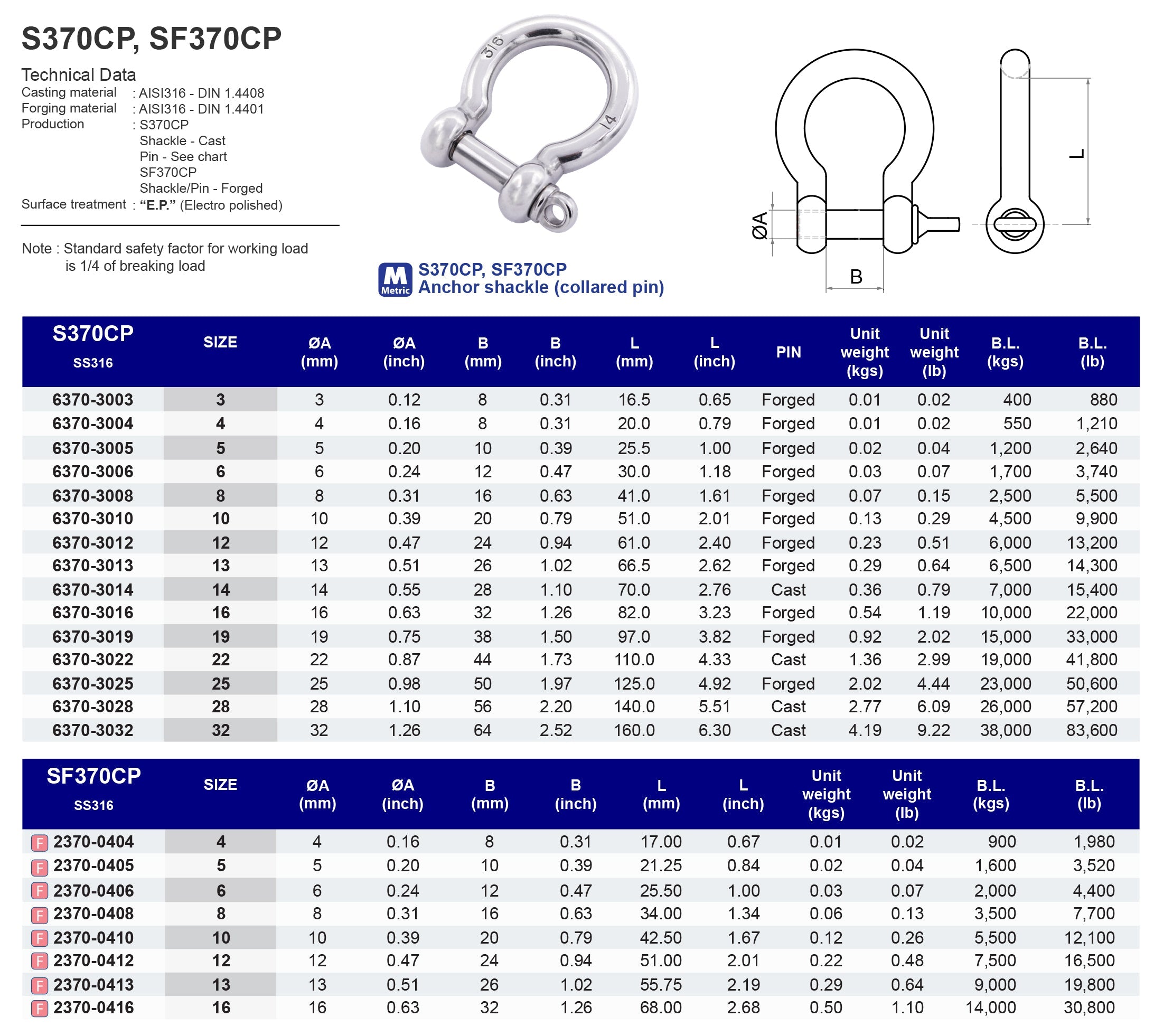

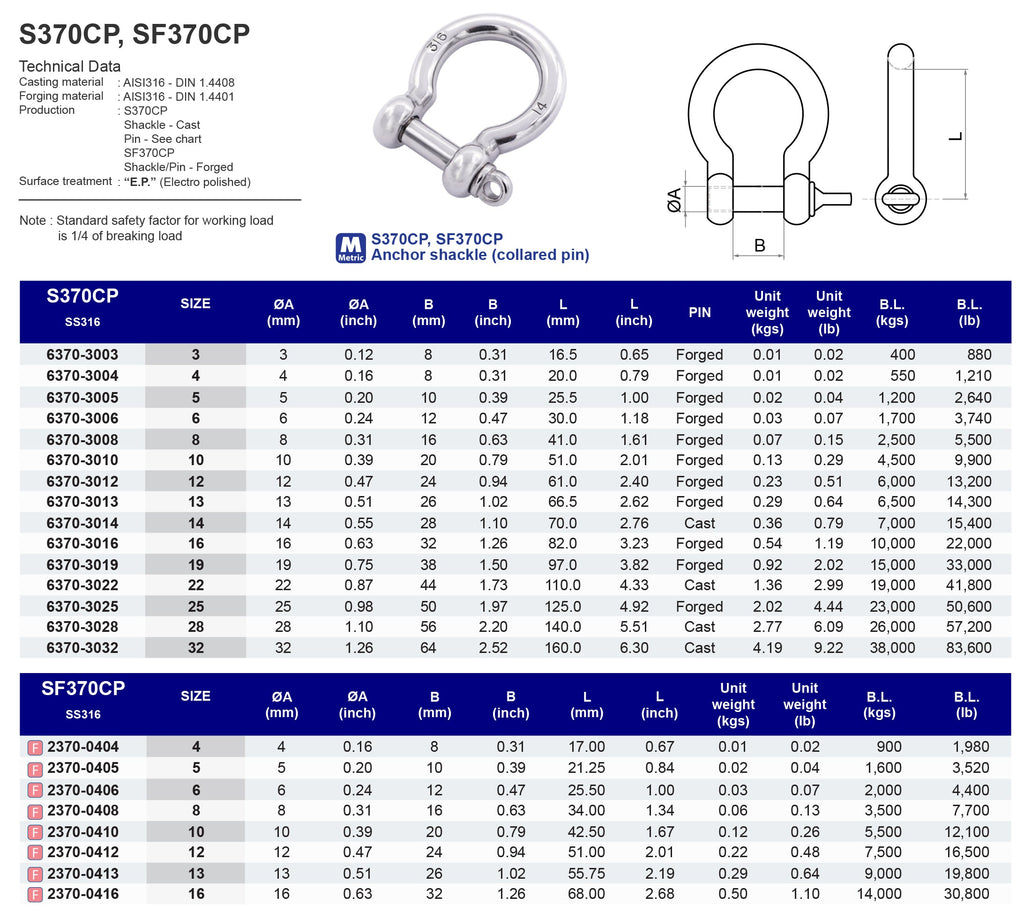

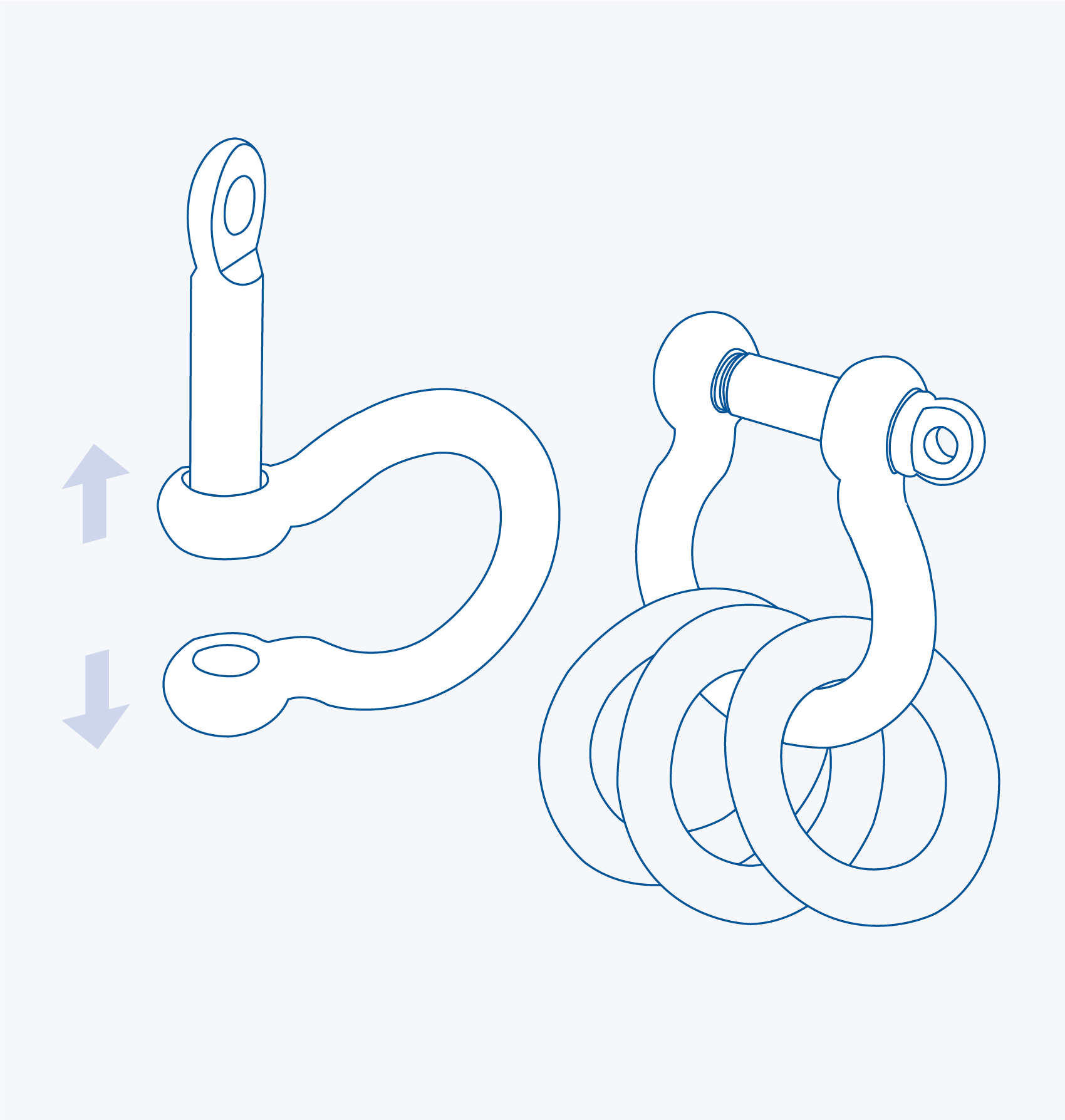

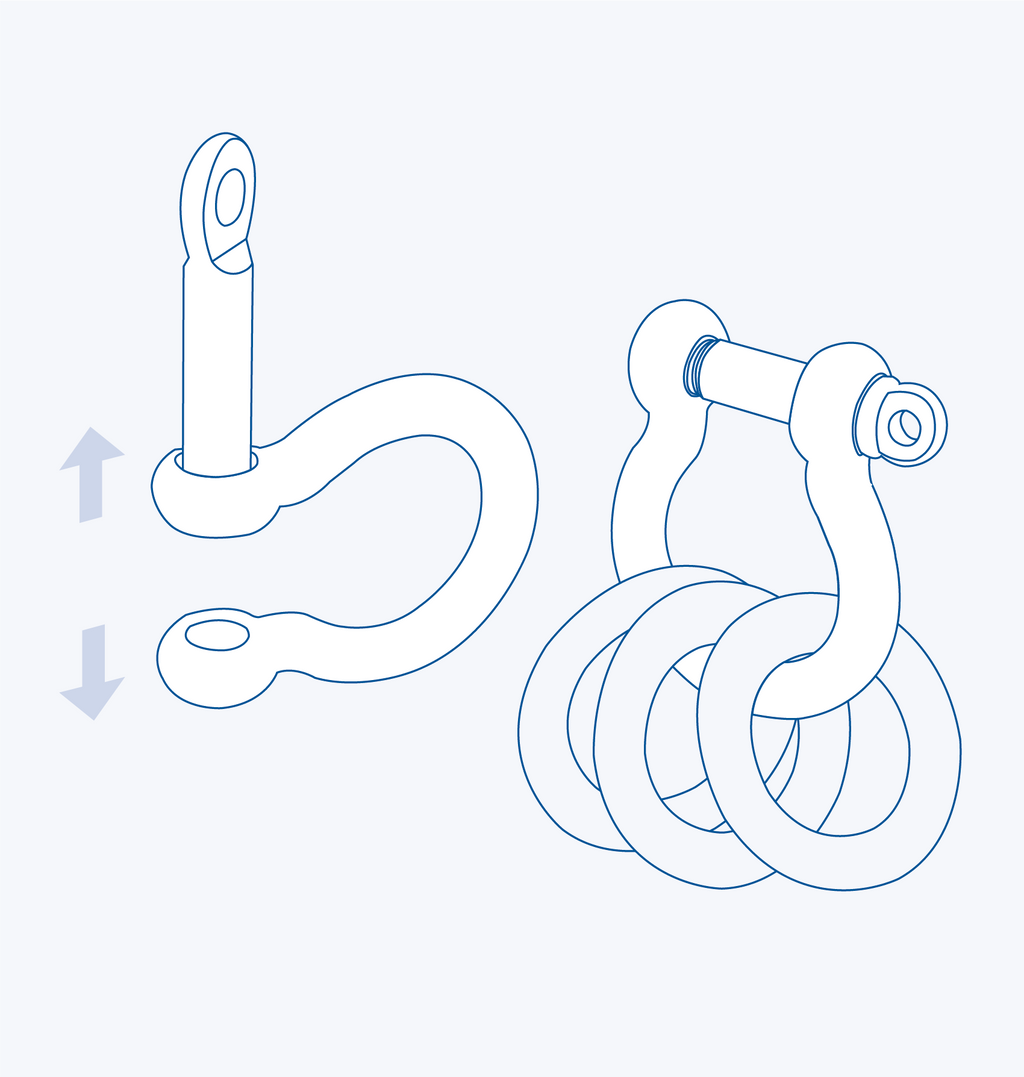

SF370CP
Anchor Shackle (collared pin)
316 ss
| SS316 | Size | ØA (mm) | ØB (mm) | L (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 23700404 | 4 | 4 | 8 | 17.00 | 0.01 | 900 |
| 23700405 | 5 | 5 | 10 | 21.25 | 0.02 | 1,600 |
| 23700406 | 6 | 6 | 12 | 25.50 | 0.03 | 2,000 |
| 23700408 | 8 | 8 | 16 | 34.00 | 0.06 | 3,500 |
| 23700410 | 10 | 10 | 20 | 42.50 | 0.12 | 5,500 |
| 23700412 | 12 | 12 | 24 | 51.00 | 0.22 | 7,500 |
| 23700413 | 13 | 13 | 26 | 55.75 | 0.29 | 9,000 |
| 23700416 | 16 | 16 | 32 | 68.00 | 0.50 | 14,000 |
| SS316 | Size | ØA (inch) | ØB (inch) | L (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 23700404 | 5/32" | 0.16 | 0.31 | 0.67 | 0.02 | 1,980 |
| 23700405 | 3/16" | 0.20 | 0.39 | 0.84 | 0.04 | 3,520 |
| 23700406 | 1/4" | 0.24 | 0.47 | 1.00 | 0.07 | 4,400 |
| 23700408 | 5/16" | 0.31 | 0.63 | 1.34 | 0.13 | 7,700 |
| 23700410 | 3/8" | 0.39 | 0.79 | 1.67 | 0.26 | 12,100 |
| 23700412 | 15/32" | 0.47 | 0.94 | 2.01 | 0.48 | 16,500 |
| 23700413 | 1/2" | 0.51 | 1.02 | 2.19 | 0.64 | 19,800 |
| 23700416 | 5/8" | 0.63 | 1.26 | 2.68 | 1.10 | 30,800 |
