Description
Technical Data:
Casting Material: AISI316 - DIN 1.4408
Forging Material: AISI316 - DIN 1.4401
Production: S370B - Shackle - Cast
Pin - See chart
SF370B Shackle - Forged
Pin - Forged
Surface Treatment: “E.P.” (Electro polished)
Model
SF370B

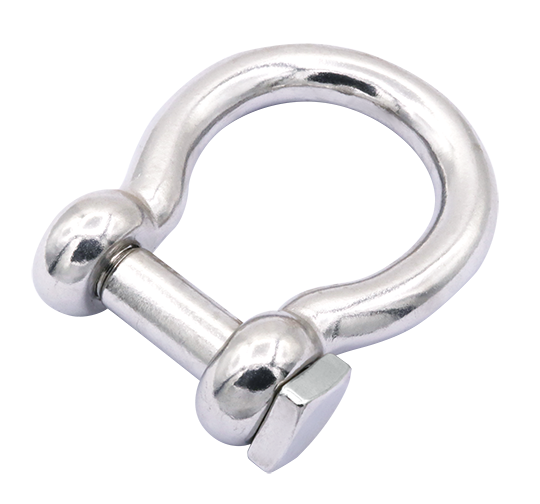

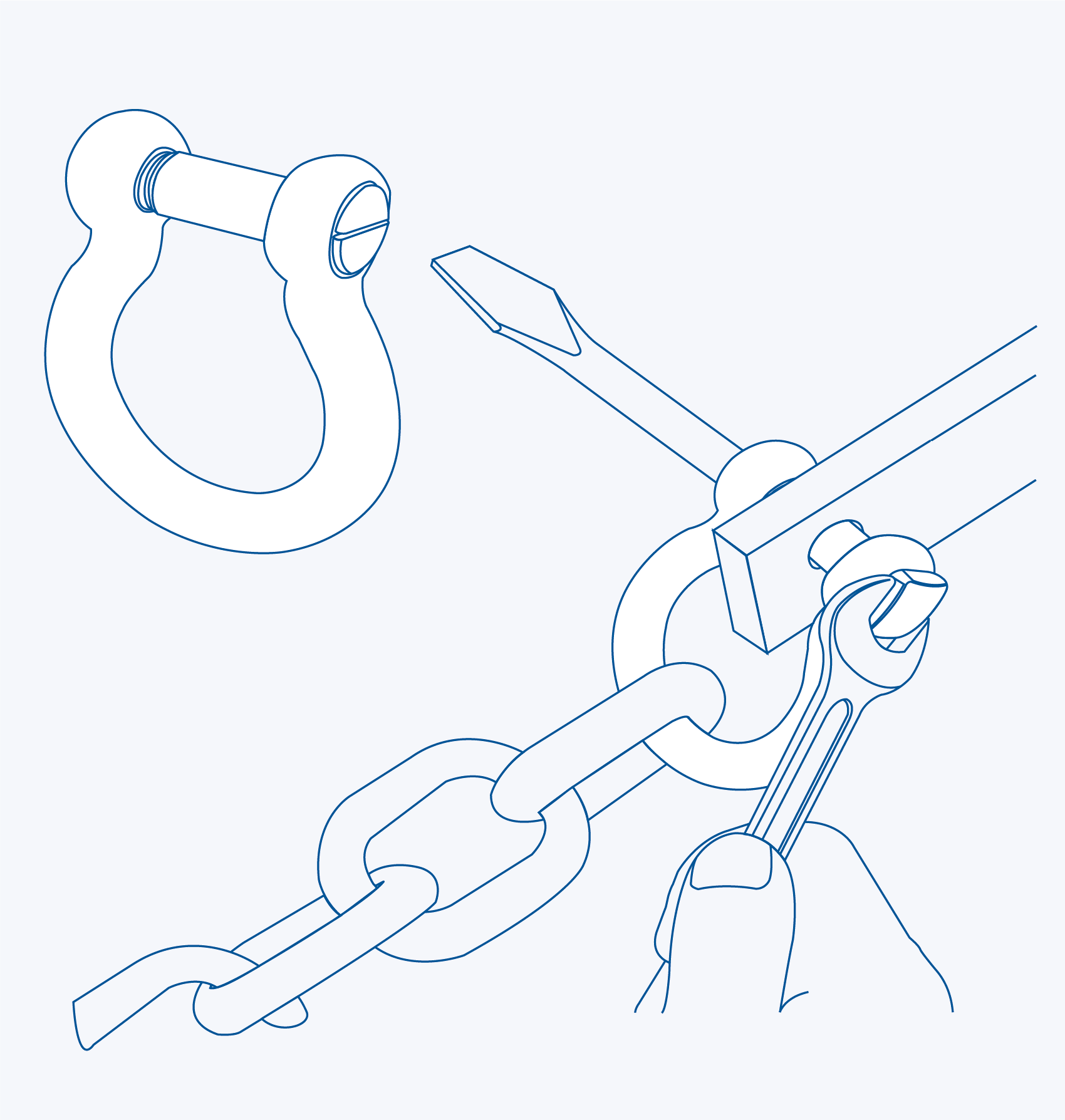

Anchor shackle (square head pin)
316 ss

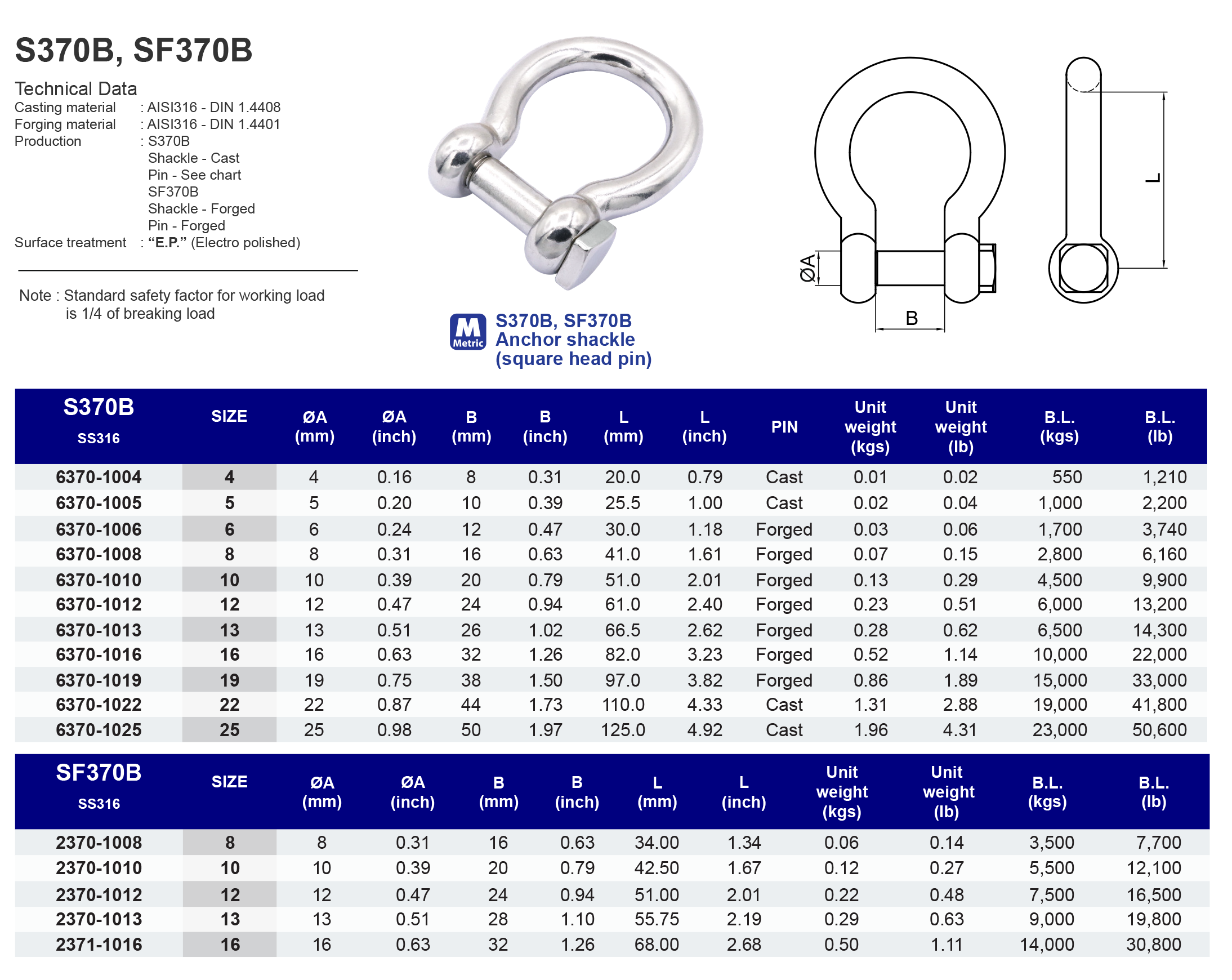

| SS316 | Size | ØA (mm) | ØB (mm) | L (mm) | Unit weight (kgs) | B.L.(kgs) |
|---|---|---|---|---|---|---|
| 23701008 | 8 | 8 | 16 | 34.00 | 0.06 | 3,500 |
| 23701010 | 10 | 10 | 20 | 42.50 | 0.12 | 5,500 |
| 23701012 | 12 | 12 | 24 | 51.00 | 0.22 | 7,500 |
| 23701013 | 13 | 13 | 28 | 55.75 | 0.29 | 9,000 |
| 23711016 | 16 | 16 | 32 | 68.00 | 0.50 | 14,000 |
| SS316 | Size | ØA (inch) | ØB (inch) | L (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 23701008 | 5/16" | 0.31 | 0.63 | 1.34 | 0.14 | 7,700 |
| 23701010 | 3/8" | 0.39 | 0.79 | 1.67 | 0.27 | 12,100 |
| 23701012 | 1/2" | 0.47 | 0.94 | 2.01 | 0.48 | 16,500 |
| 23701013 | 1/2" | 0.51 | 1.10 | 2.19 | 0.63 | 19,800 |
| 23711016 | 5/8" | 0.63 | 1.26 | 2.68 | 1.11 | 30,800 |
