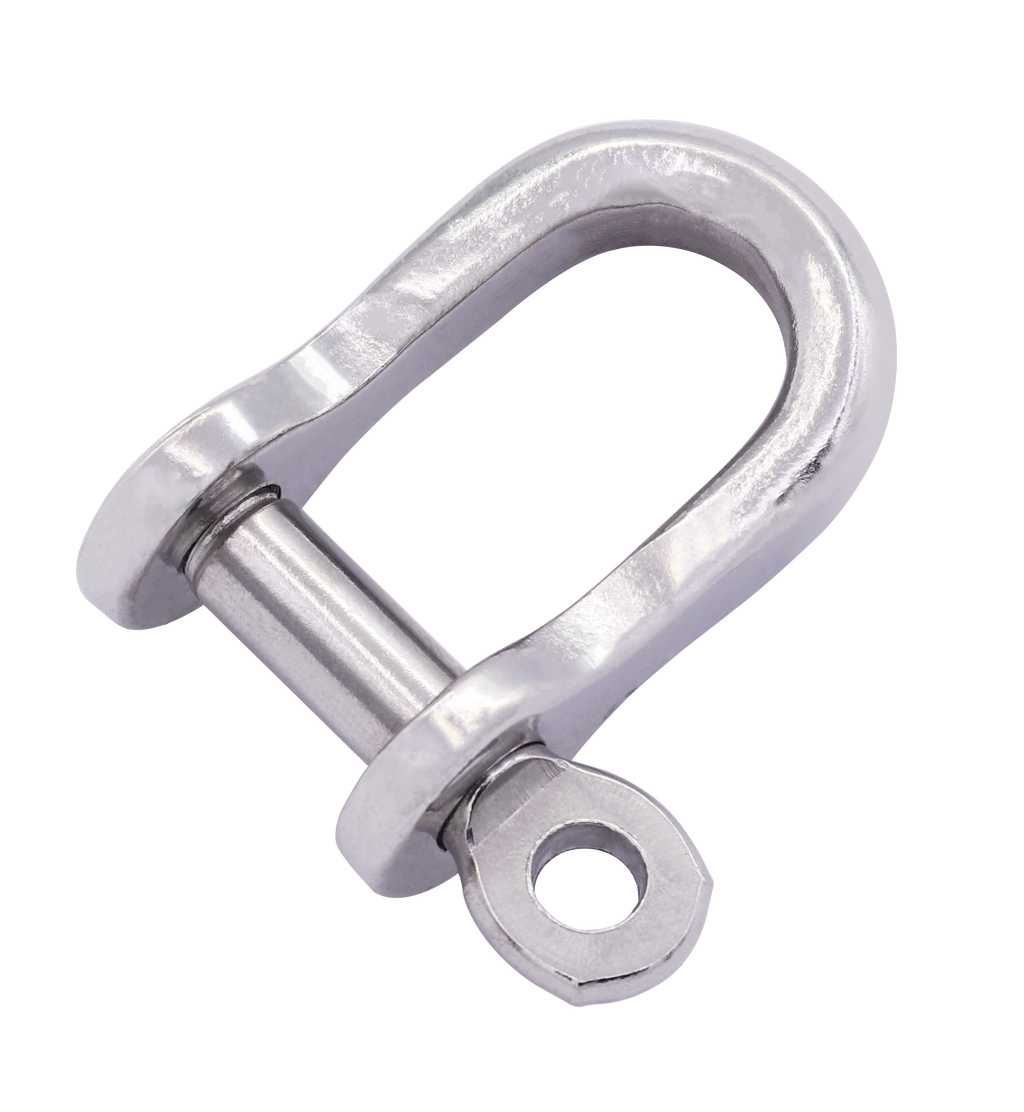

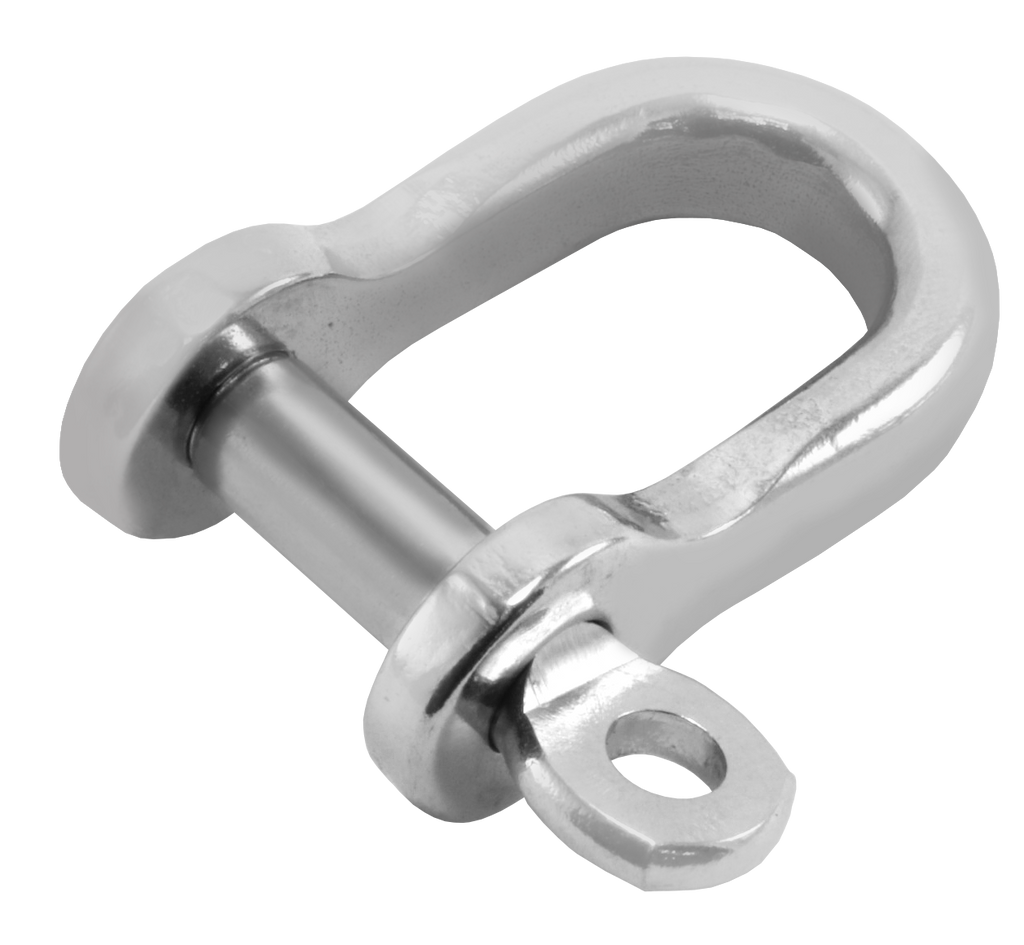

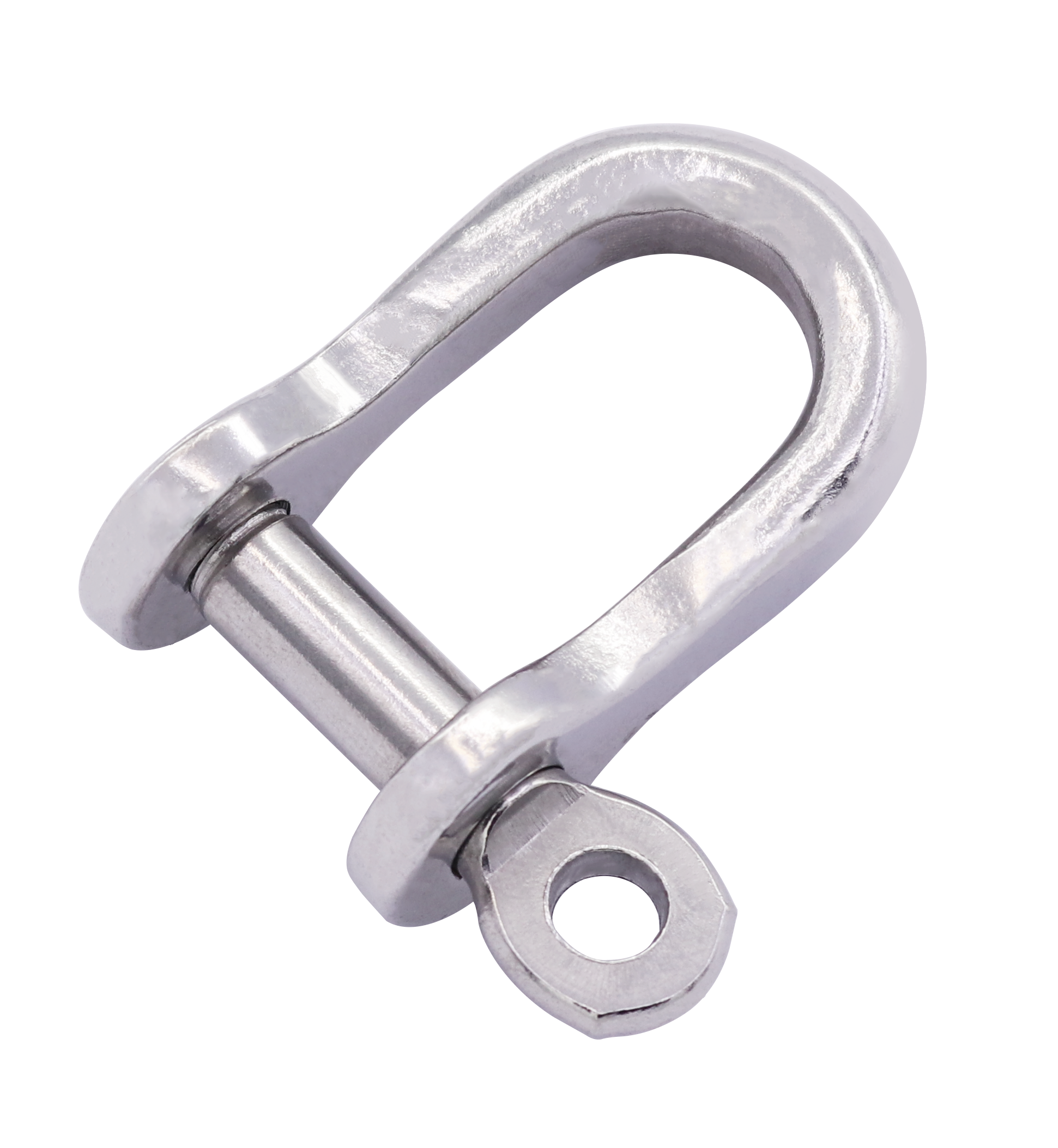

SF361R Sheet shackle - 304

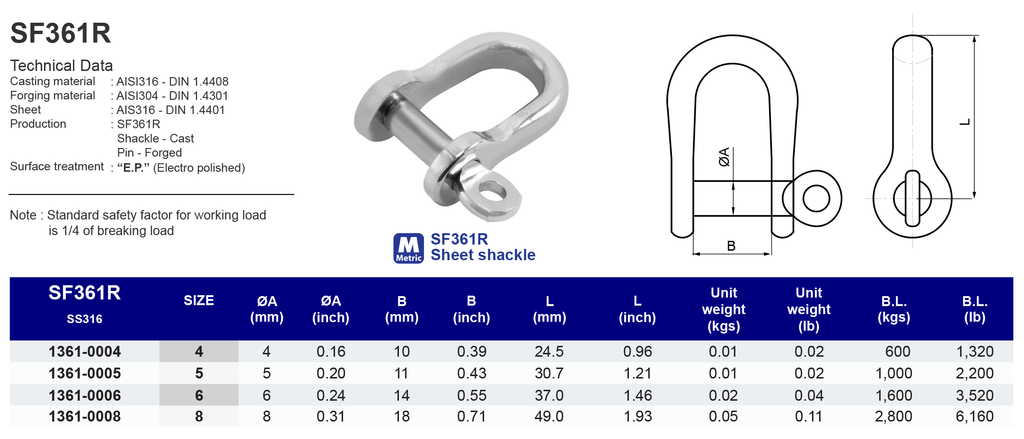

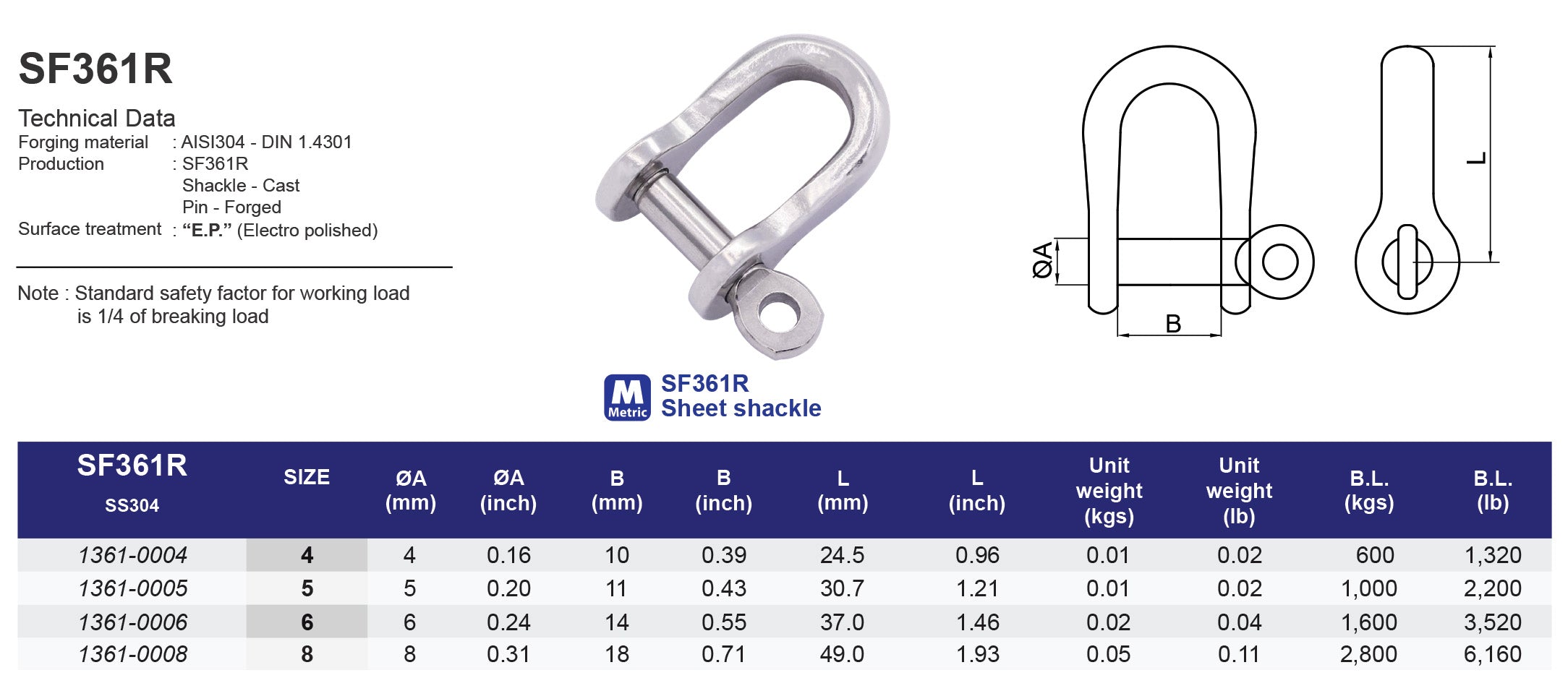

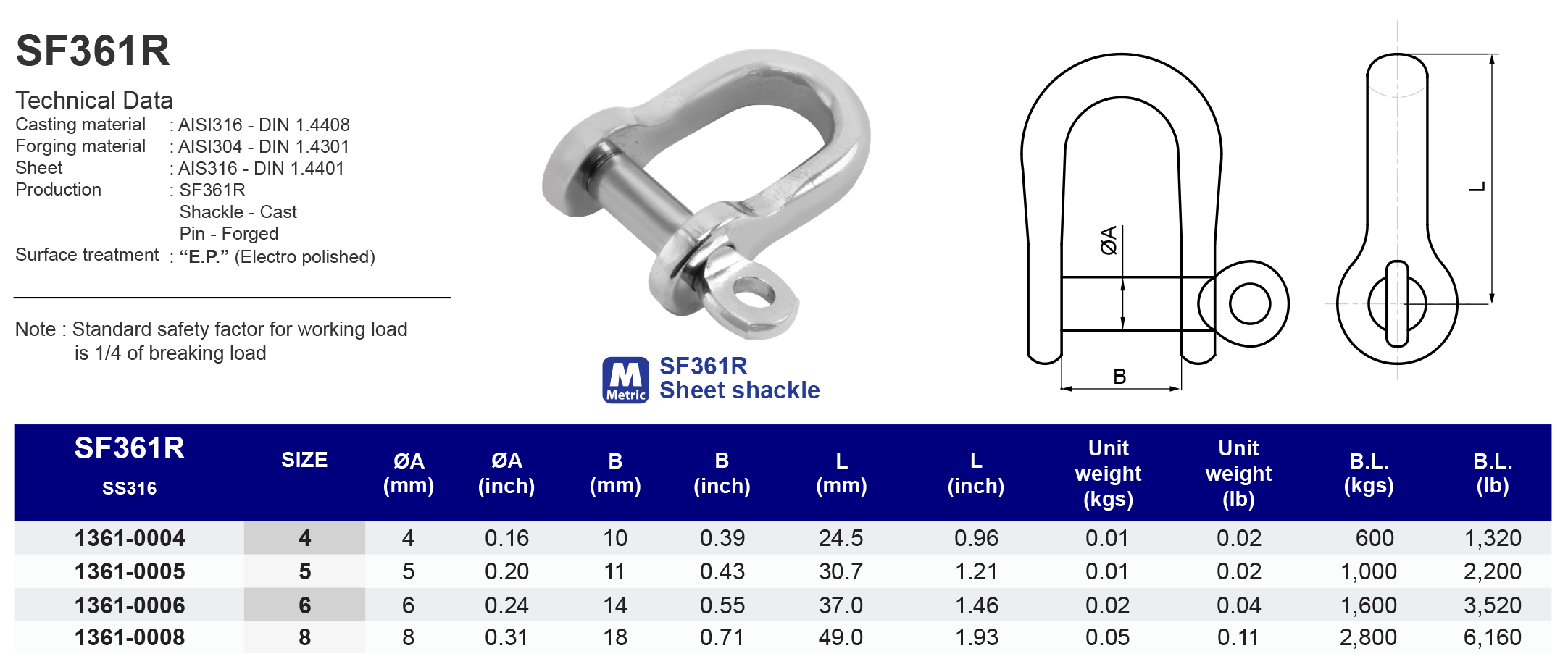

Technical Data:
Forging Material: AISI316 - DIN 1.4408
Production : SF361R - Shackle - Cast
Pin - Forged
SurfaceTreatment: “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load

DATA SHEET DOWNLOAD
