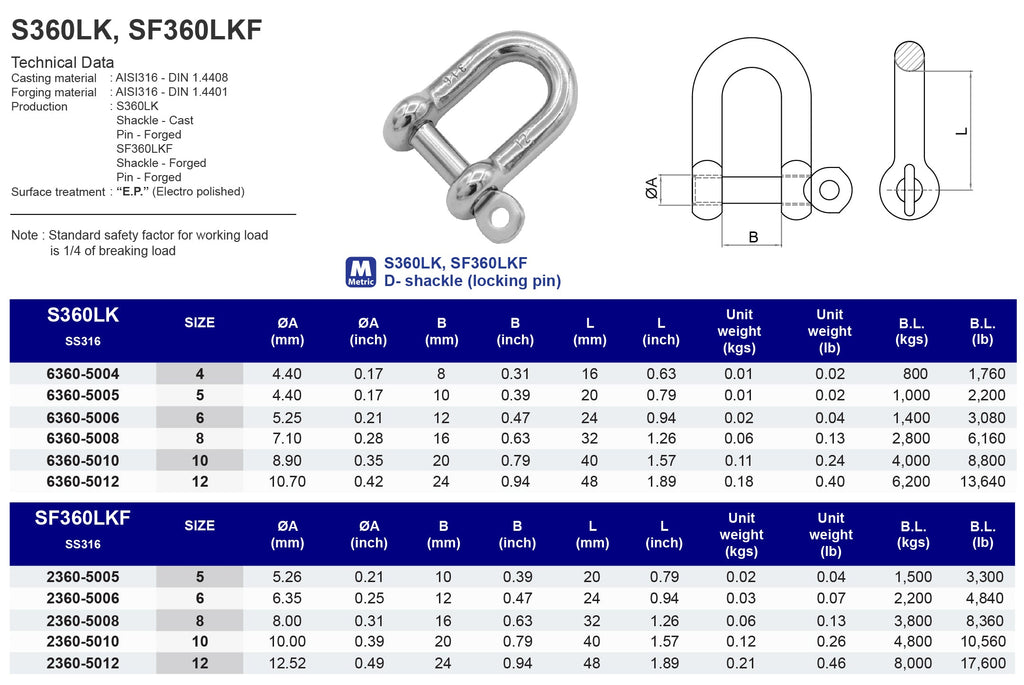

Description
Technical Data:
Casting Material: AISI316 - DIN 1.4408
Forging Material: AISI316 - DIN 1.4401
Production: S360LK - Shackle - Cast
Pin - Forged
SF360LKF - Shackle - Forged
Pin - Forged
Surface Treatment: “E.P.” (Electro polished)
Model
SF360LKF

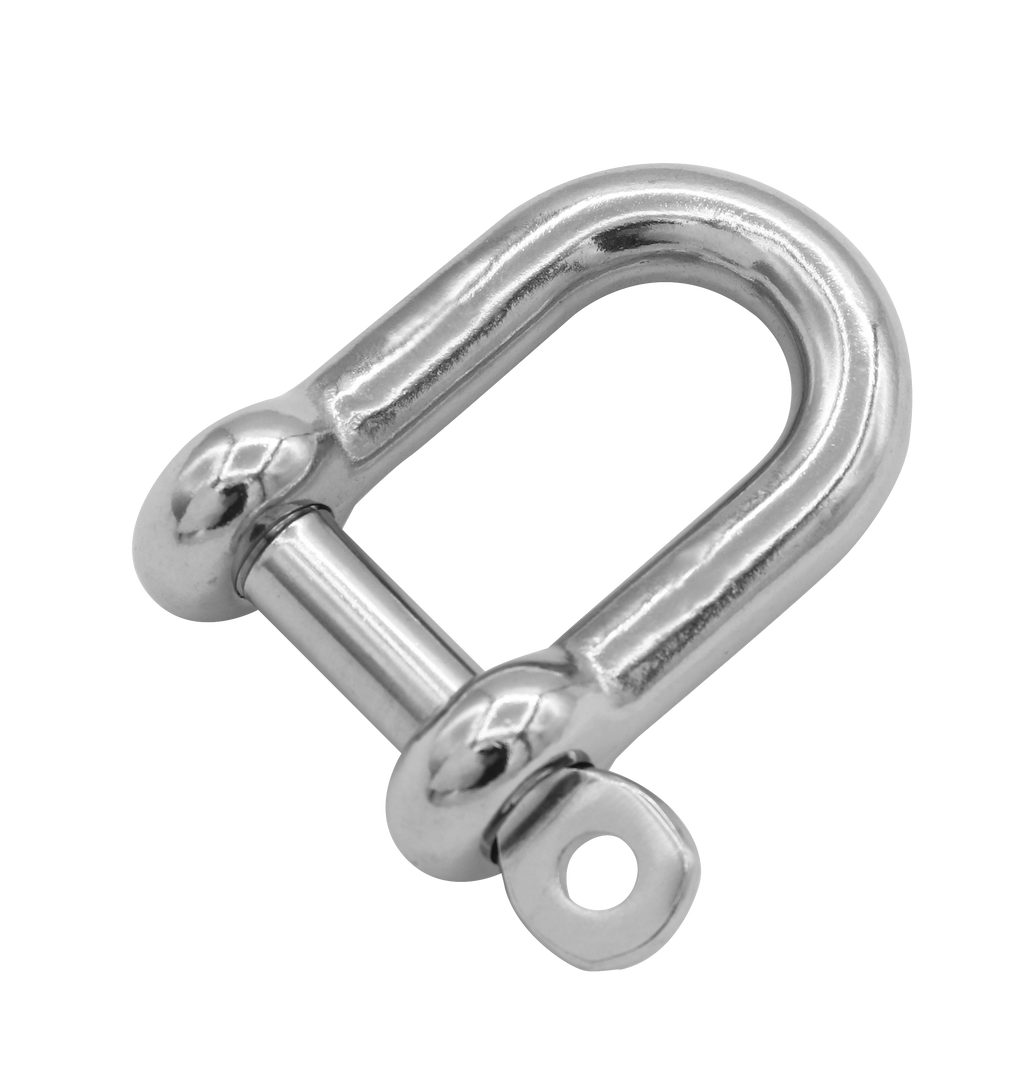

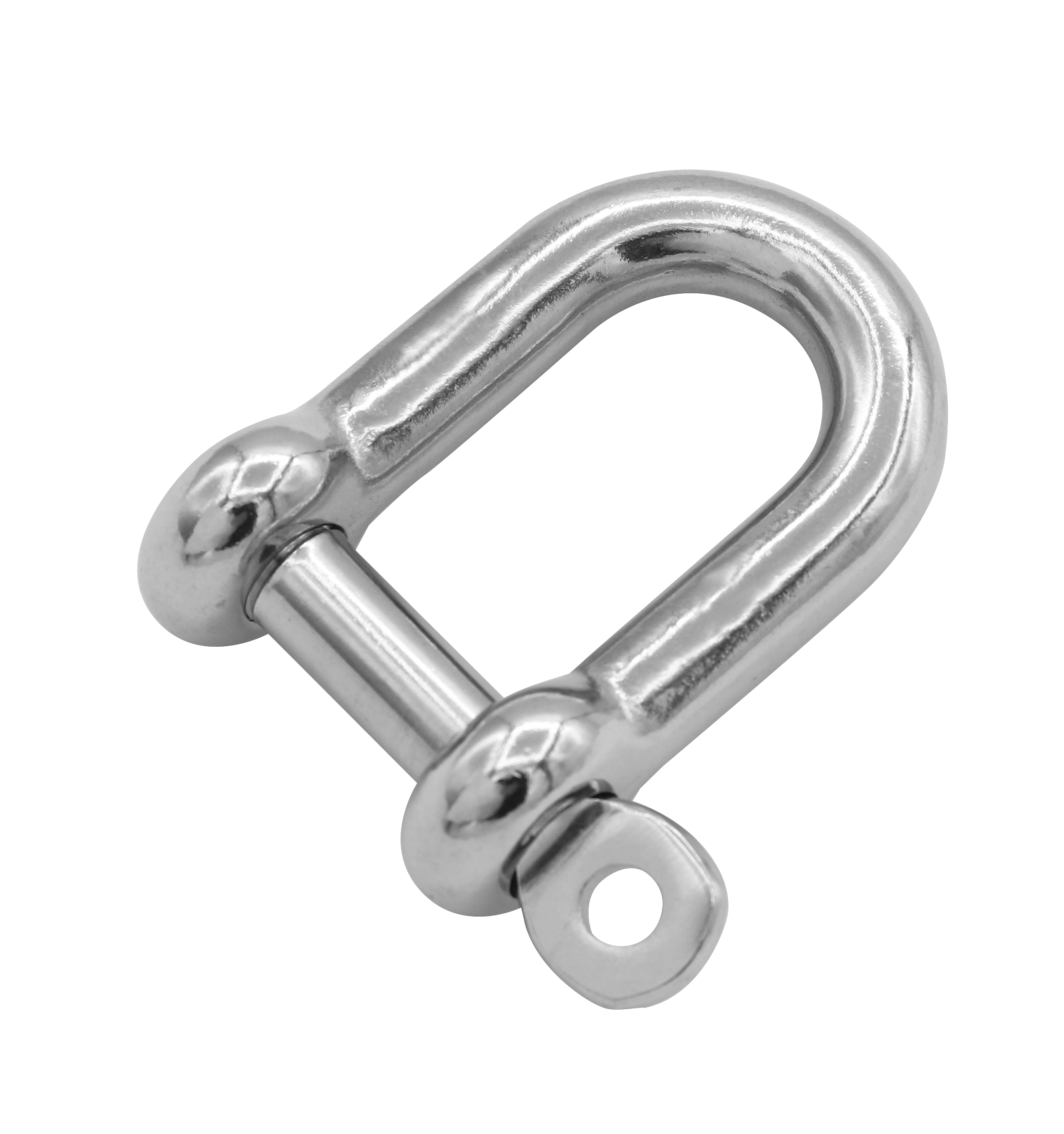

D-shackle (locking pin)
316 ss

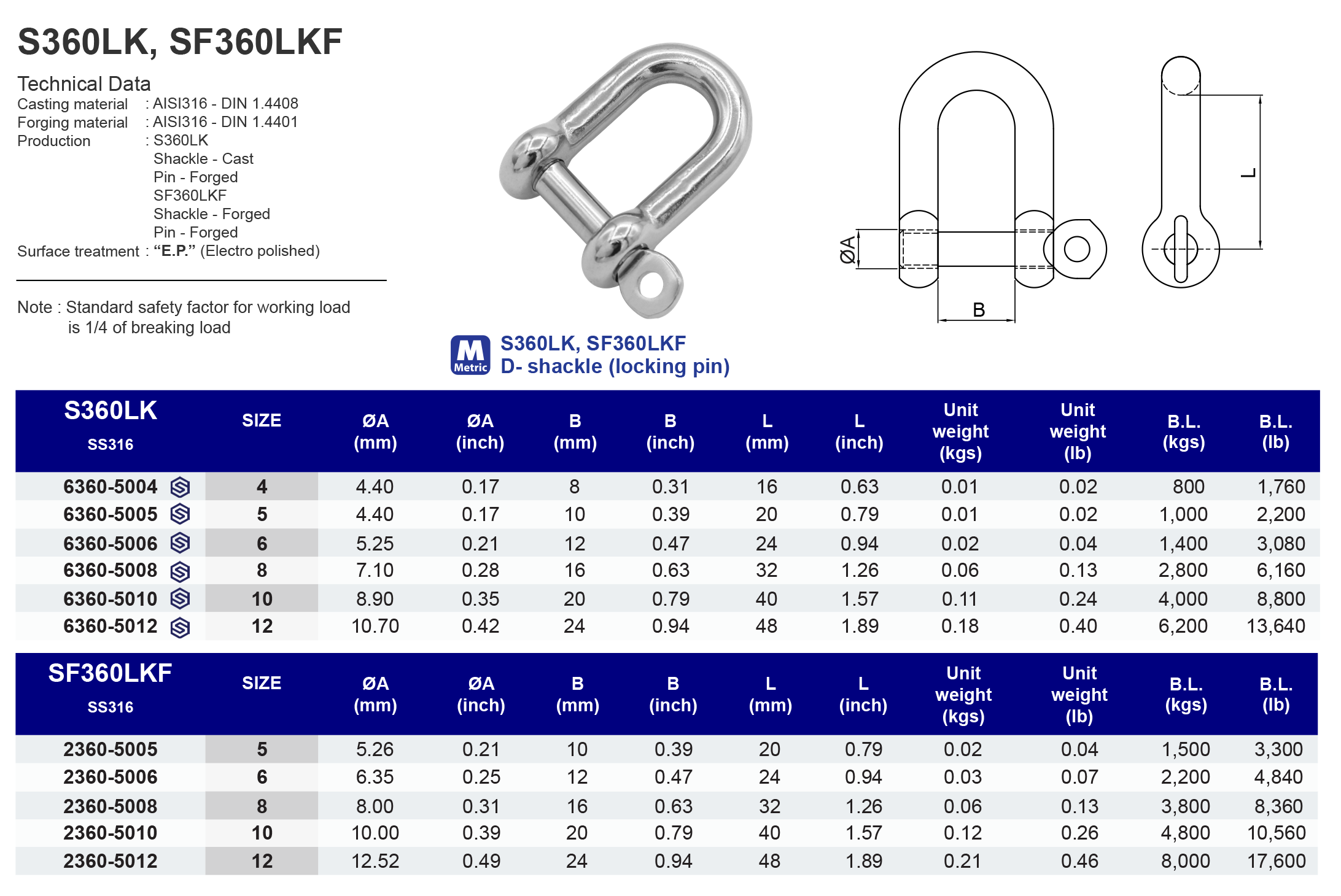

| SS316 | Size | ØA (mm) | ØB (mm) | L (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 23605005 | 5 | 5.26 | 10 | 20 | 0.02 | 1,500 |
| 23605006 | 6 | 6.35 | 12 | 24 | 0.03 | 2,200 |
| 23605008 | 8 | 8.00 | 16 | 32 | 0.06 | 3,800 |
| 23605010 | 10 | 10.00 | 20 | 40 | 0.12 | 4,800 |
| 23605012 | 12 | 12.52 | 24 | 48 | 0.21 | 8,000 |
| S316 | Size | ØA (inch) | ØB (inch) | L (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 23605005 | 3/16" | 0.21 | 0.39 | 0.79 | 0.04 | 3,300 |
| 23605006 | 1/4" | 0.25 | 0.47 | 0.94 | 0.07 | 4,840 |
| 23605008 | 5/16" | 0.31 | 0.63 | 1.26 | 0.13 | 8,360 |
| 23605010 | 3/8" | 0.39 | 0.79 | 1.57 | 0.26 | 10,560 |
| 23605012 | 1/2" | 0.49 | 0.94 | 1.89 | 0.46 | 17,600 |
