Description
Technical Data
Casting material : AISI316 - DIN 1.4408
Forging material : AISI316 - DIN 1.4401
Production : Shackle - Cast
Surface Treatment : “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load
DATA SHEET DOWNLOAD

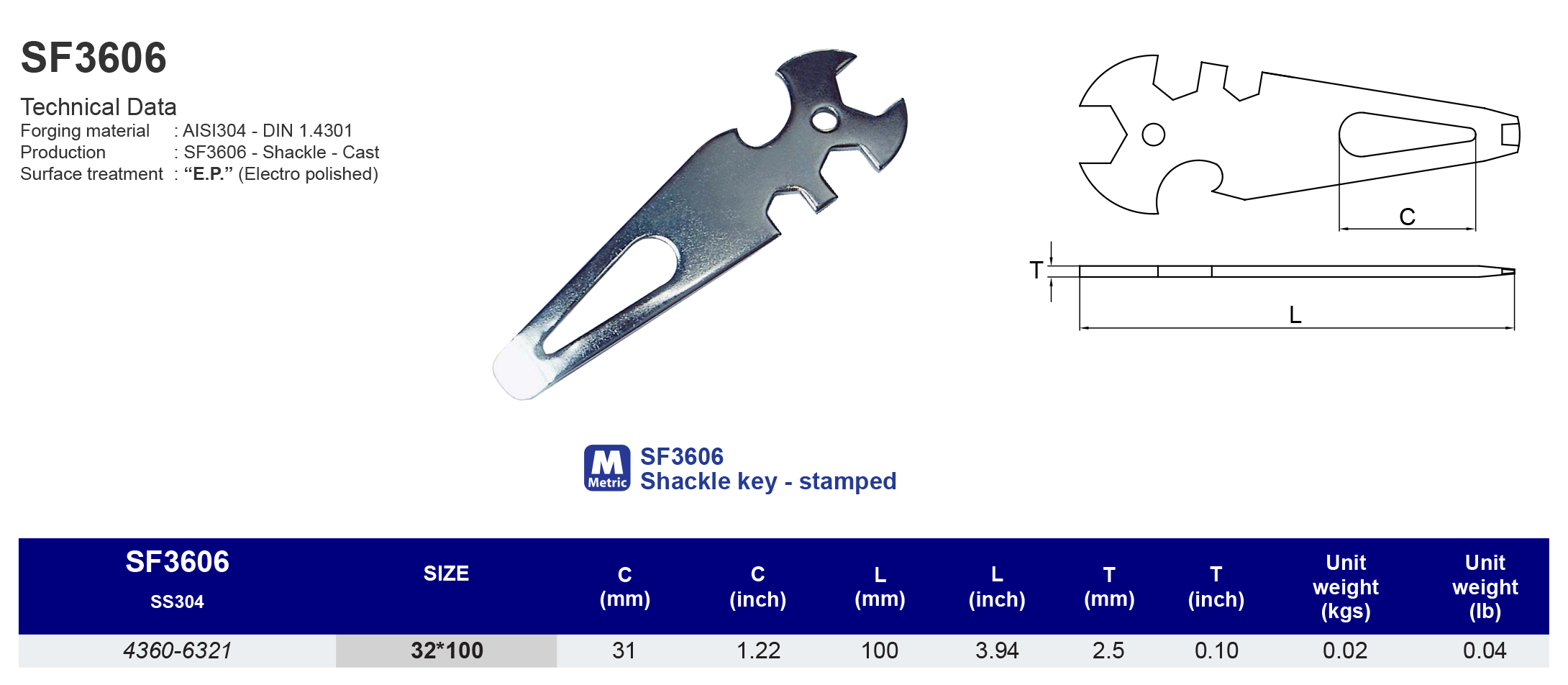

Model
SF3606

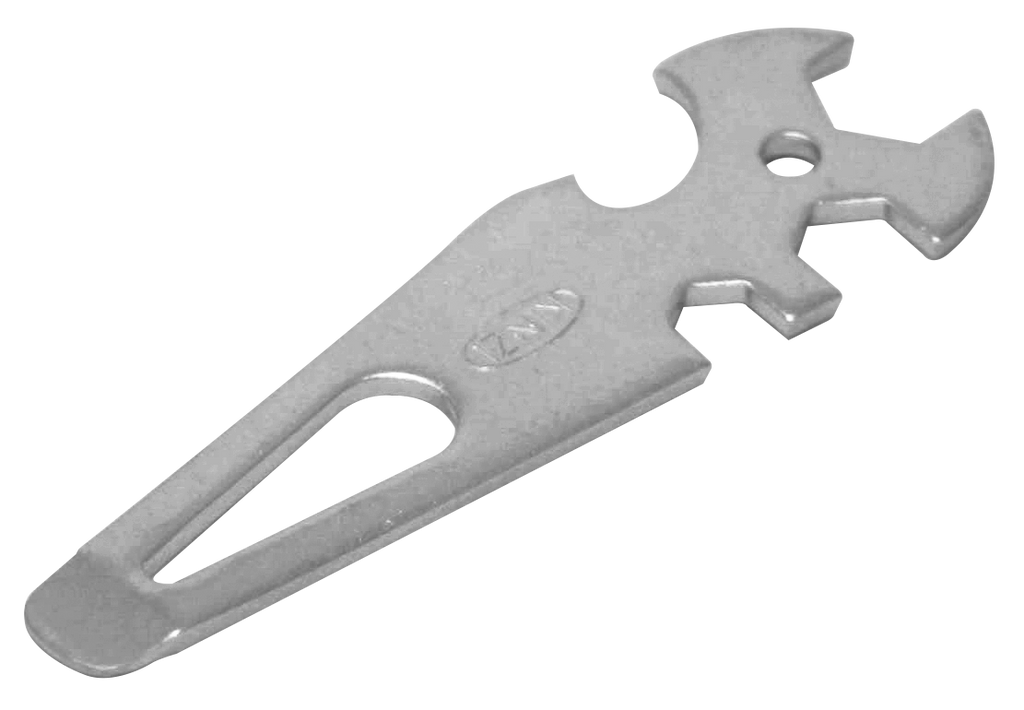

Shackle key stamped
304 ss

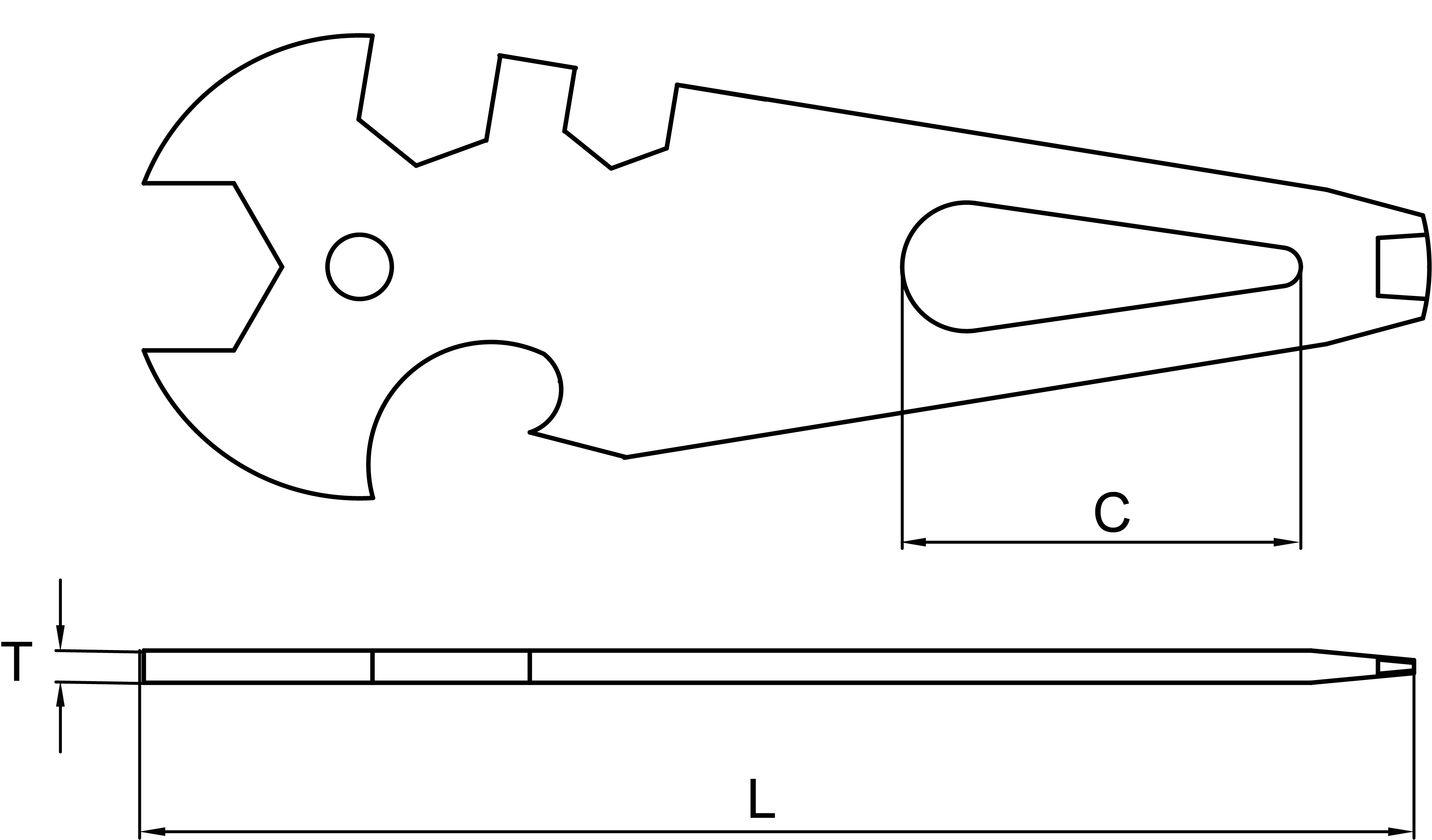

| SS304 | Size | C(mm) | L(mm) | T(mm) | Unit weight (kgs) |
|---|---|---|---|---|---|
| 43606321 | 32*100 | 31 | 100 | 2.5 | 0.03 |
| SS304 | Size | C(inch) | L(inch) | T(inch) | Unit weight (Ib) |
|---|---|---|---|---|---|
| 43606321 | 32*100 | 1.22 | 3.94 | 0.1 | 0.07 |
