Description
Technical Data:
Forging material : AISI304 - DIN 1.4301
Production : SF3257 - Ring - Welded Surface Treatment: “E.P.” (Electro polished) Note : Standard safety factor for working load is1/4 of breaking load DATA SHEET DOWNLOAD

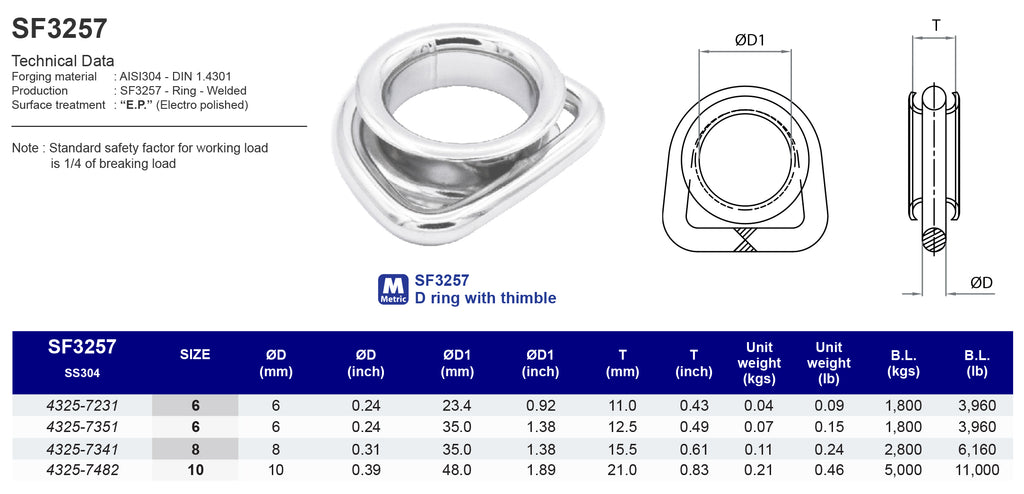

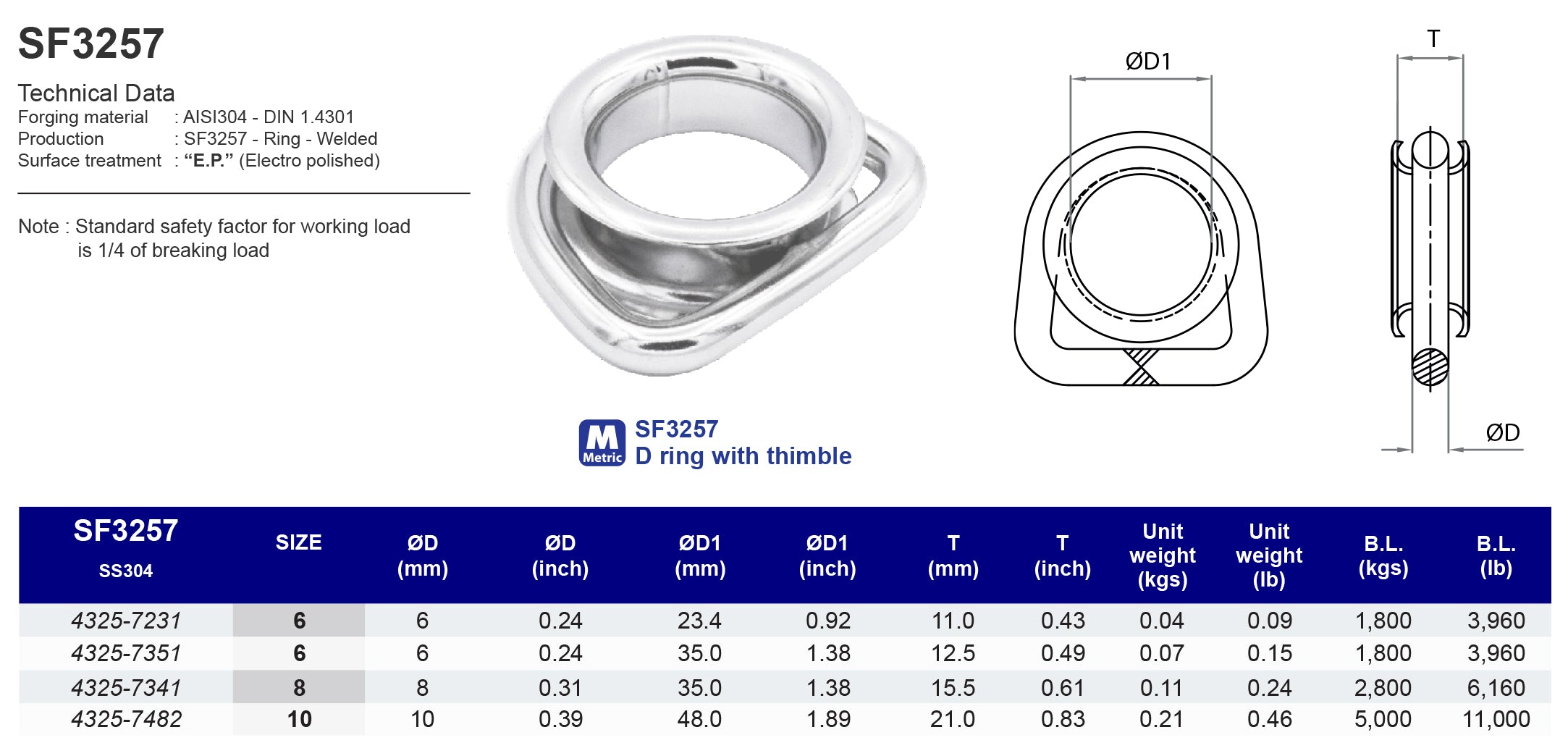

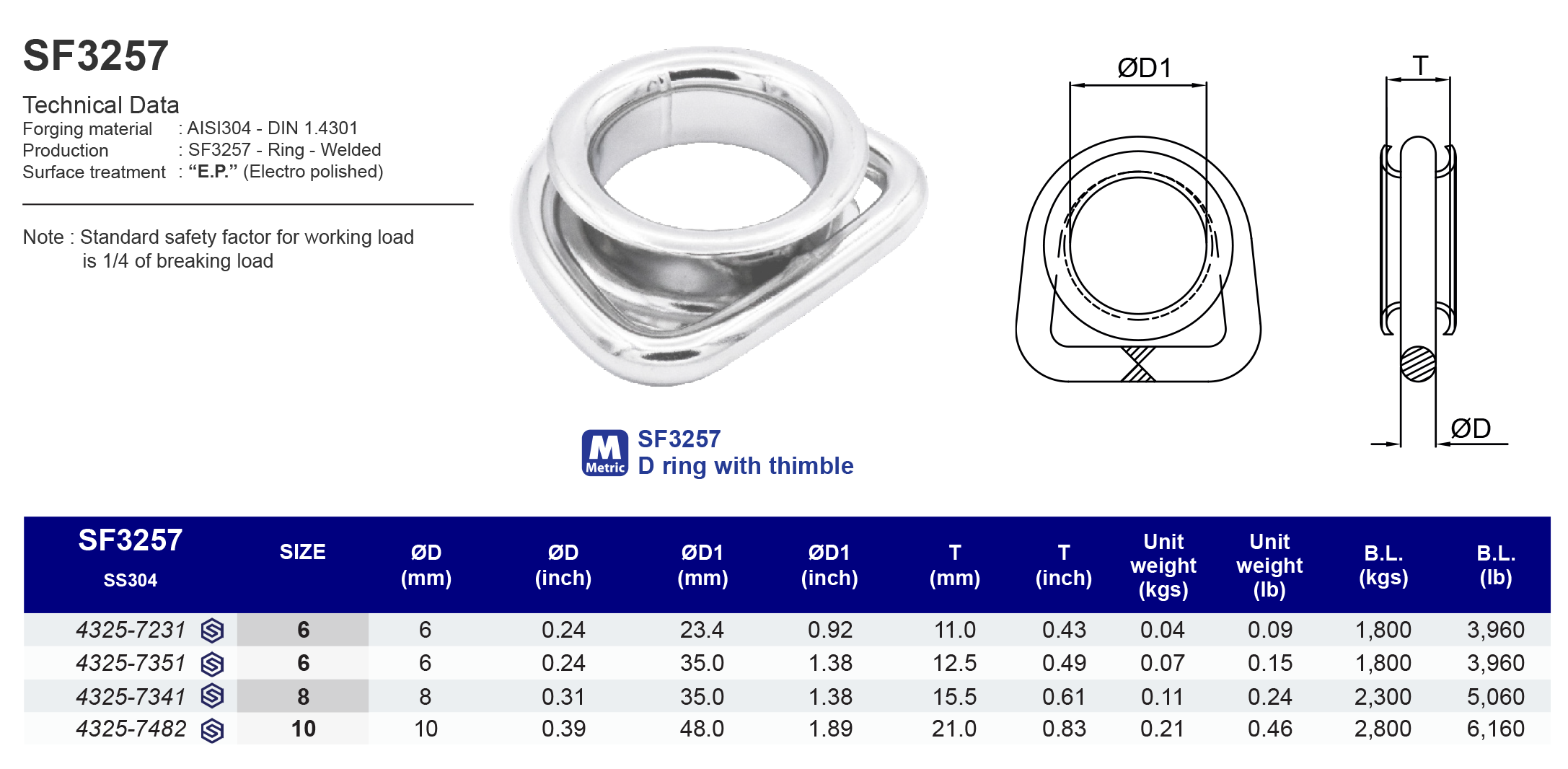

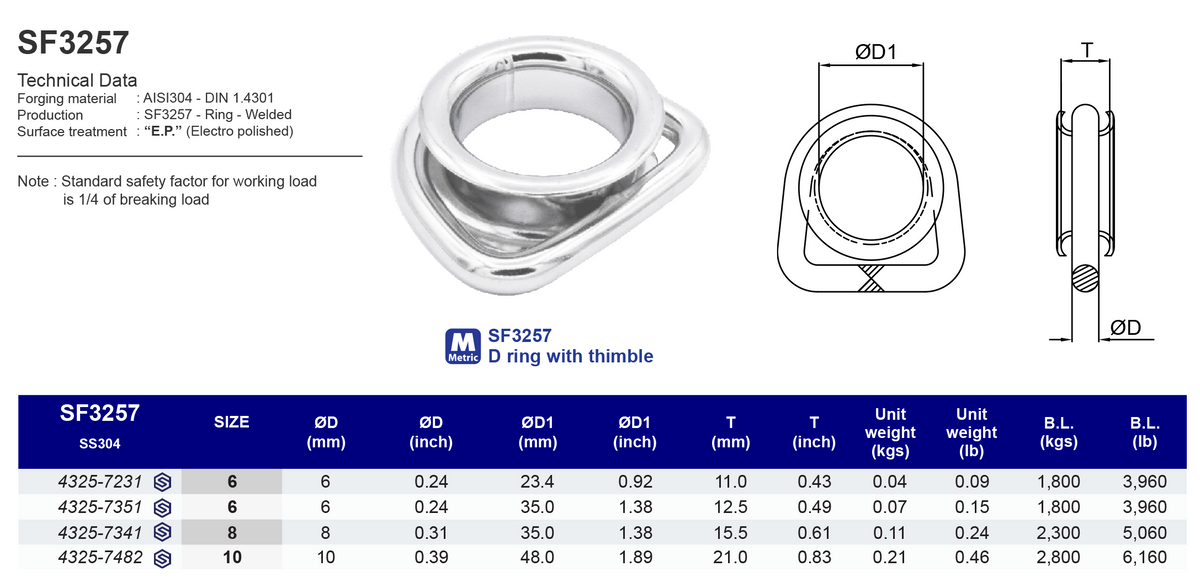

Model
SF3257

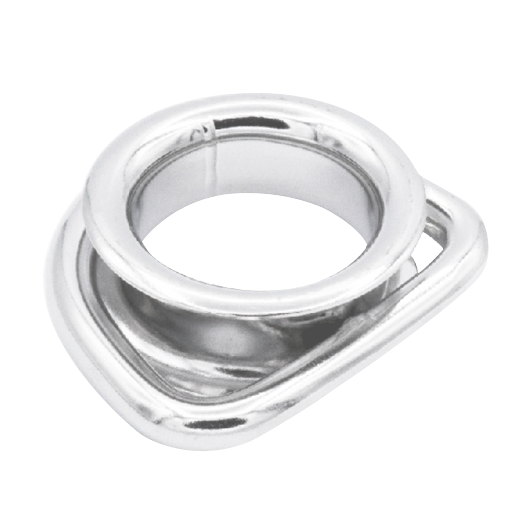

D ring with thimble
304 ss
| SS304 | Size | ØD (mm) | ØD1 (mm) | T (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 43257231 | 6 | 6 | 23.4 | 11.0 | 0.04 | 1,800 |
| 43257351 | 6 | 6 | 35 | 12.5 | 0.07 | 1,800 |
| 43257341 | 8 | 8 | 35 | 15.5 | 0.11 | 2,300 |
| 43257482 | 10 | 10 | 48 | 21.0 | 0.21 | 2,800 |
| SS304 | Size | ØD (inch) | ØD1 (inch) | T (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 43257231 | 1/4" x 1-3/16" | 0.24 | 0.92 | 0.43 | 0.09 | 3,960 |
| 43257351 | 1/4" x 2" | 0.24 | 1.38 | 0.49 | 0.15 | 3,960 |
| 43257341 | 5/16" x 2" | 0.31 | 1.38 | 0.61 | 0.24 | 5,060 |
| 43257482 | 3/8" x 2-9/16" | 0.39 | 1.89 | 0.83 | 0.46 | 6,160 |
