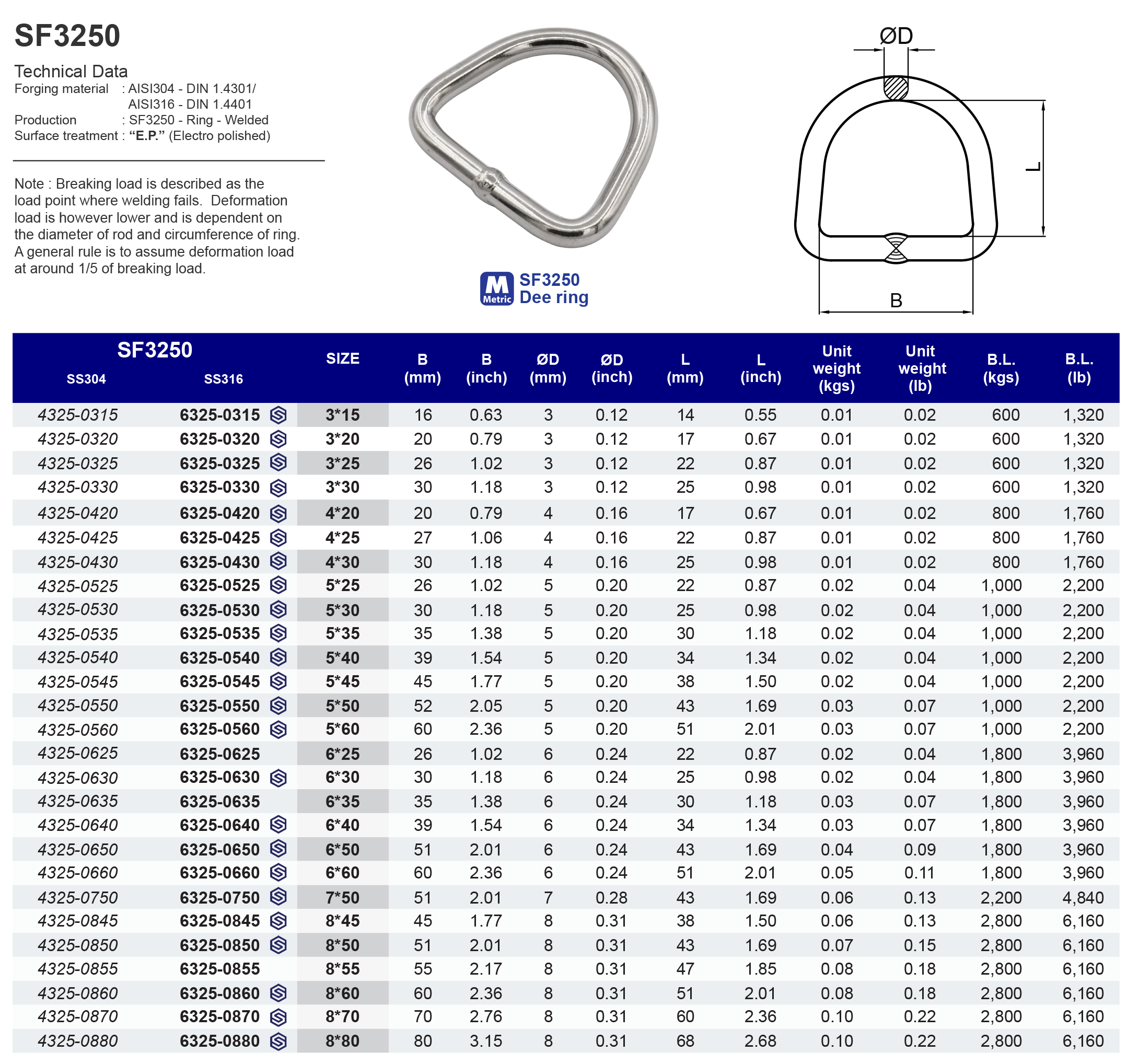

Description
Technical Data:
Forging Material:
AISI304 - DIN 1.4301/
AISI316 - DIN 1.4401
Production: SF3250 - Ring - Welded
Surface Treatment: “E.P.” (Electro polished)
Note : Breaking load is described as the
load point where welding fails. Deformation
load is however lower and is dependent on
the diameter of rod and circumference of ring.
A general rule is to assume deformation load
at around 1/5 of breaking load.

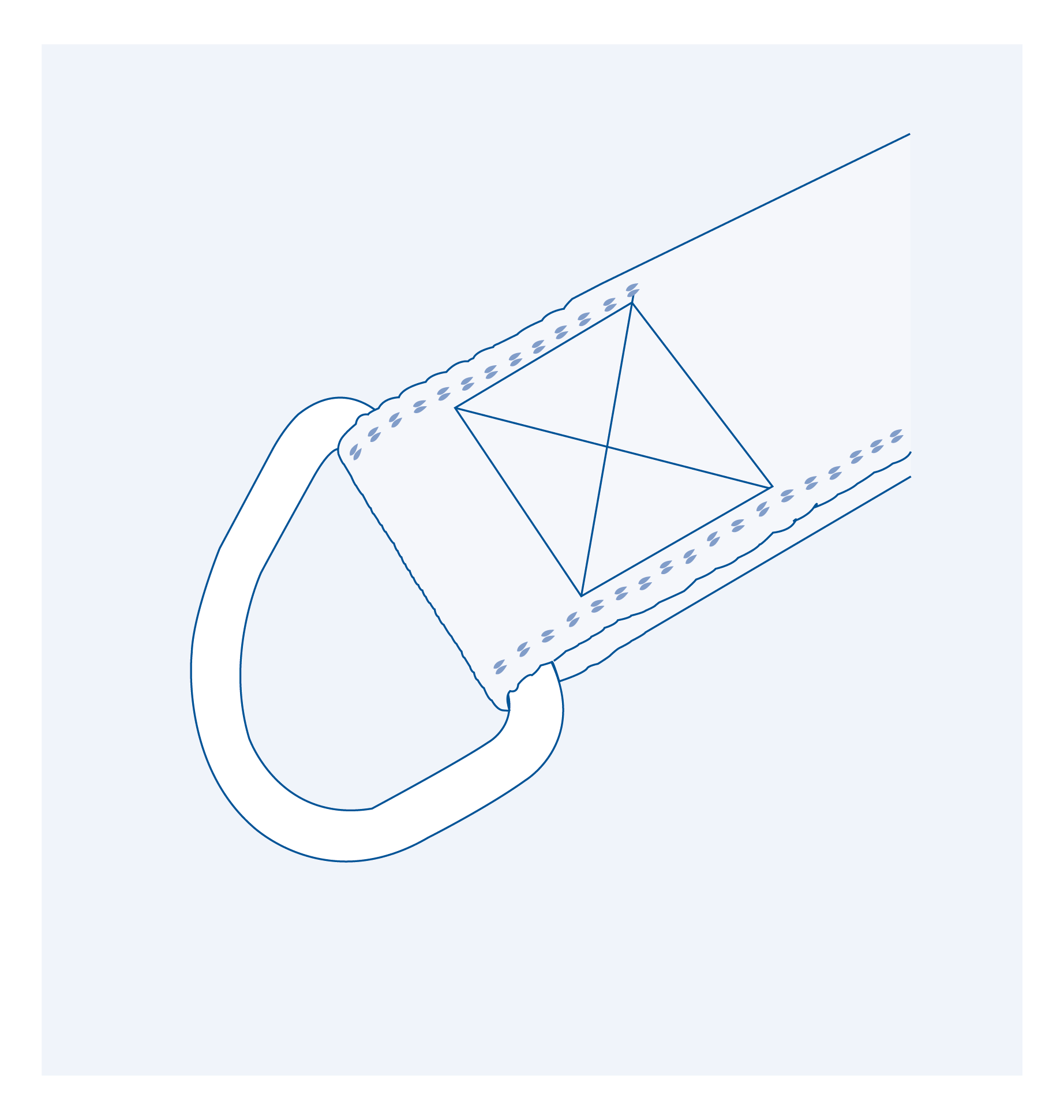

Model
SF3250
Dee ring
304 ss
| SS304 | Size | B (mm) | ØD (mm) | L (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 43250315 | 3*15 | 16 | 3 | 14 | 0.01 | 600 |
| 43250320 | 3*20 | 20 | 3 | 17 | 0.01 | 600 |
| 43250325 | 3*25 | 26 | 3 | 22 | 0.01 | 600 |
| 43250330 | 3*30 | 30 | 3 | 25 | 0.01 | 600 |
| 43250420 | 4*20 | 20 | 4 | 17 | 0.01 | 800 |
| 43250425 | 4*25 | 27 | 4 | 22 | 0.01 | 800 |
| 43250430 | 4*30 | 30 | 4 | 25 | 0.01 | 800 |
| 43250525 | 5*25 | 26 | 5 | 22 | 0.02 | 1,000 |
| 43250530 | 5*30 | 30 | 5 | 25 | 0.02 | 1,000 |
| 43250535 | 5*35 | 35 | 5 | 30 | 0.02 | 1,000 |
| 43250540 | 5*40 | 39 | 5 | 34 | 0.02 | 1,000 |
| 43250545 | 5*45 | 45 | 5 | 38 | 0.02 | 1,000 |
| 43250550 | 5*50 | 52 | 5 | 43 | 0.03 | 1,000 |
| 43250560 | 5*60 | 60 | 5 | 51 | 0.03 | 1,000 |
| 43250625 | 6*25 | 26 | 6 | 22 | 0.02 | 1,800 |
| 43250630 | 6*30 | 30 | 6 | 25 | 0.02 | 1,800 |
| 43250635 | 6*35 | 35 | 6 | 30 | 0.03 | 1,800 |
| 43250640 | 6*40 | 39 | 6 | 34 | 0.03 | 1,800 |
| 43250650 | 6*50 | 51 | 6 | 43 | 0.04 | 1,800 |
| 43250660 | 6*60 | 60 | 6 | 51 | 0.05 | 1,800 |
| 43250750 | 7*50 | 51 | 7 | 43 | 0.06 | 2,200 |
| 43250845 | 8*45 | 45 | 8 | 38 | 0.06 | 2,800 |
| 43250850 | 8*50 | 51 | 8 | 43 | 0.07 | 2,800 |
| 43250855 | 8*55 | 55 | 8 | 47 | 0.08 | 2,800 |
| 43250860 | 8*60 | 60 | 8 | 51 | 0.08 | 2,800 |
| 43250870 | 8*70 | 70 | 8 | 60 | 0.10 | 2,800 |
| 43250880 | 8*80 | 80 | 8 | 68 | 0.10 | 2,800 |
| SS304 | Size | B (inch) | ØD (inch) | L (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 43250315 | 1/8" x 9/16" | 0.63 | 0.12 | 0.55 | 0.02 | 1,320 |
| 43250320 | 1/8" x 3/4" | 0.79 | 0.12 | 0.67 | 0.02 | 1,320 |
| 43250325 | 1/8" x 1" | 1.02 | 0.12 | 0.87 | 0.02 | 1,320 |
| 43250330 | 1/8" x 1-3/16" | 1.18 | 0.12 | 0.98 | 0.02 | 1,320 |
| 43250420 | 5/32" x 3/4" | 0.79 | 0.16 | 0.67 | 0.02 | 1,760 |
| 43250425 | 5/32" x 1" | 1.06 | 0.16 | 0.87 | 0.02 | 1,760 |
| 43250430 | 5/32" x 1-3/16" | 1.18 | 0.16 | 0.98 | 0.02 | 1,760 |
| 43250525 | 3/16" x 1" | 1.02 | 0.20 | 0.87 | 0.04 | 2,200 |
| 43250530 | 3/16" x 1-3/16" | 1.18 | 0.20 | 0.98 | 0.04 | 2,200 |
| 43250535 | 3/16" x 1-1/4" | 1.38 | 0.20 | 1.18 | 0.04 | 2,200 |
| 43250540 | 3/16" x 1-9/16" | 1.54 | 0.20 | 1.34 | 0.04 | 2,200 |
| 43250545 | 3/16" x 1-3/4" | 1.77 | 0.20 | 1.50 | 0.04 | 2,200 |
| 43250550 | 3/16" x 2" | 2.05 | 0.20 | 1.69 | 0.07 | 2,200 |
| 43250560 | 3/16" x 2-3/8" | 2.36 | 0.20 | 2.01 | 0.07 | 2,200 |
| 43250625 | 1/4" x 1" | 1.02 | 0.24 | 0.87 | 0.04 | 3,960 |
| 43250630 | 1/4" x 1-3/16" | 1.18 | 0.24 | 0.98 | 0.04 | 3,960 |
| 43250635 | 1/4" x 1-1/4" | 1.38 | 0.24 | 1.18 | 0.07 | 3,960 |
| 43250640 | 1/4" x 1-9/16" | 1.54 | 0.24 | 1.34 | 0.07 | 3,960 |
| 43250650 | 1/4" x 2" | 2.01 | 0.24 | 1.69 | 0.09 | 3,960 |
| 43250660 | 1/4" x 2-3/8" | 2.36 | 0.24 | 2.01 | 0.11 | 3,960 |
| 43250750 | 9/32" x 2" | 2.01 | 0.28 | 1.69 | 0.13 | 4,840 |
| 43250845 | 5/16" x 1-3/4" | 1.77 | 0.31 | 1.50 | 0.13 | 6,160 |
| 43250850 | 5/16" x 2" | 2.01 | 0.31 | 1.69 | 0.15 | 6,160 |
| 43250855 | 5/16" x 2-1/4" | 2.17 | 0.31 | 1.85 | 0.18 | 6,160 |
| 43250860 | 5/16" x 2-3/8" | 2.36 | 0.31 | 2.01 | 0.18 | 6,160 |
| 43250870 | 5/16" x 3" | 2.76 | 0.31 | 2.36 | 0.22 | 6,160 |
| 43250880 | 5/16" x 3-1/4" | 3.15 | 0.31 | 2.68 | 0.22 | 6,160 |
