Description
Technical Data:
Casting Material:
AISI304 - DIN 1.4308
Samping Material:
AISI304 - DIN 1.4301
Production:
SF324 - Strap - Stamped
Surface Treatment:
Electro polished / Passivated

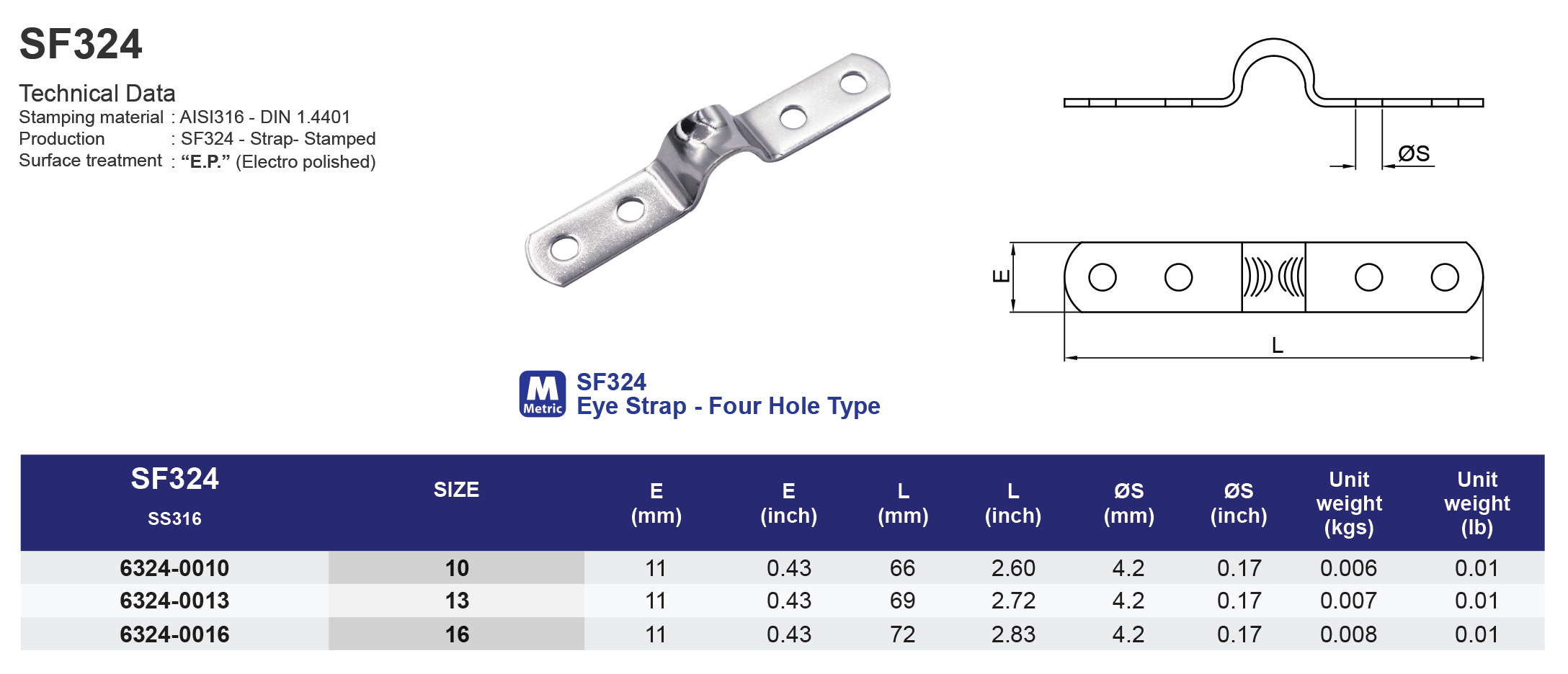

Model
SF324

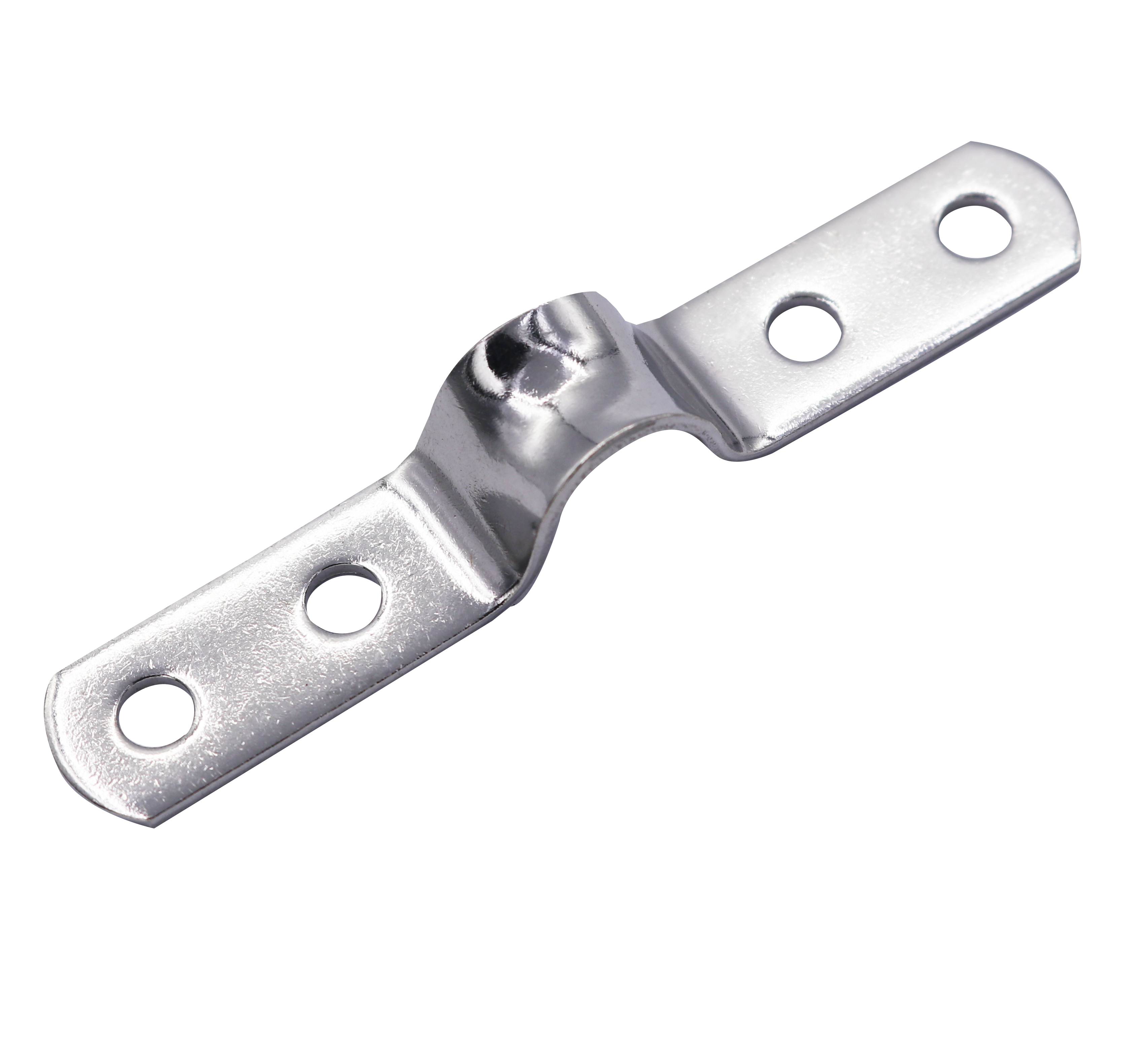

Eye Strap - Four Hole Type
316 ss
| SS316 | Size | E(mm) | L(mm) | ØS(mm) | Unit weight(kgs) |
|---|---|---|---|---|---|
| 6324-0010 | 10 | 11 | 66 | 4.2 | 0.006 |
| 6324-0013 | 13 | 11 | 69 | 4.2 | 0.007 |
| 6324-0016 | 16 | 11 | 72 | 4.2 | 0.008 |
| SS316 | Size | E(inch) | L(inch) | ØS(inch) | Unit weight(Ib) |
|---|---|---|---|---|---|
| 6324-0010 | 10 | 0.43 | 2.60 | 0.17 | 0.01 |
| 6324-0013 | 13 | 0.43 | 2.72 | 0.17 | 0.01 |
| 6324-0016 | 16 | 0.43 | 2.83 | 0.17 | 0.01 |
