Description
Technical Data:
Casting Material:
AISI304 - DIN 1.4308
Samping Material:
AISI304 - DIN 1.4301
Production:
SF323 - Strap - Stamped
Surface Treatment:
Electro polished / Passivated

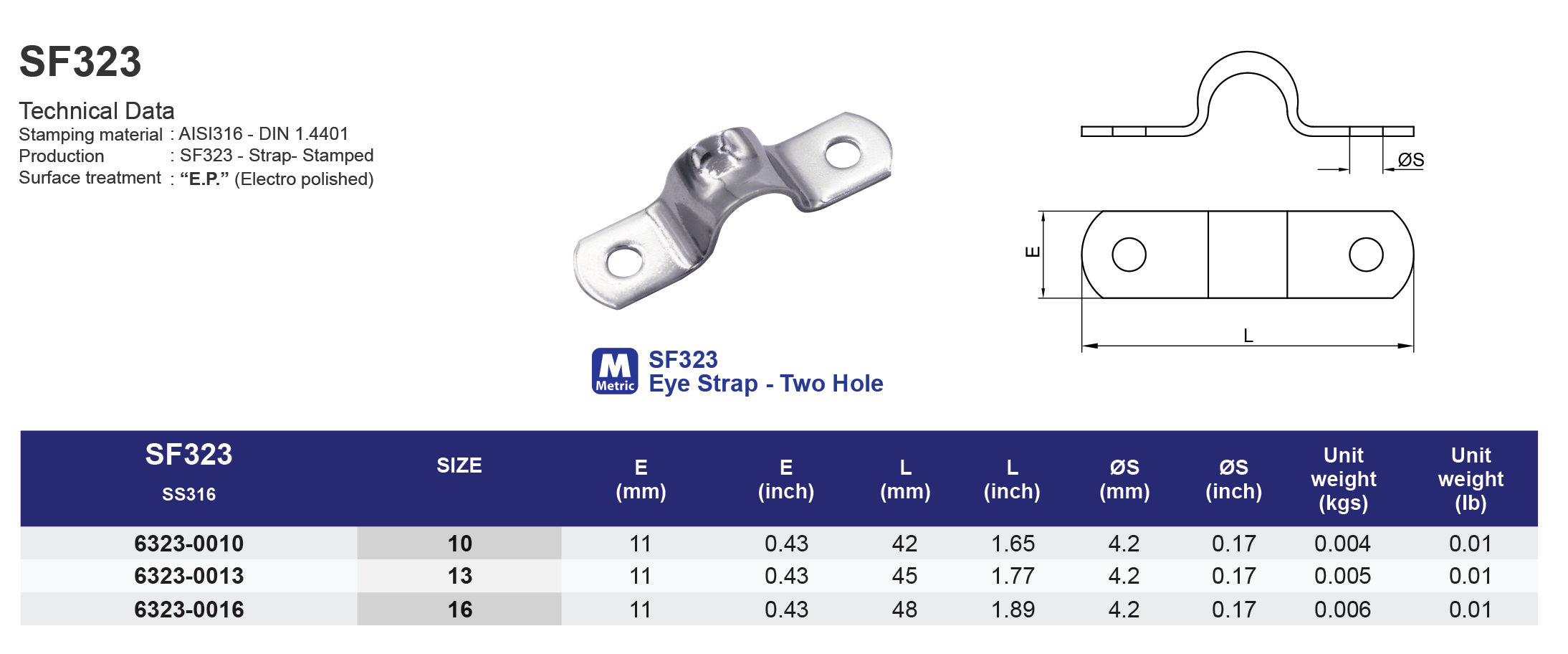

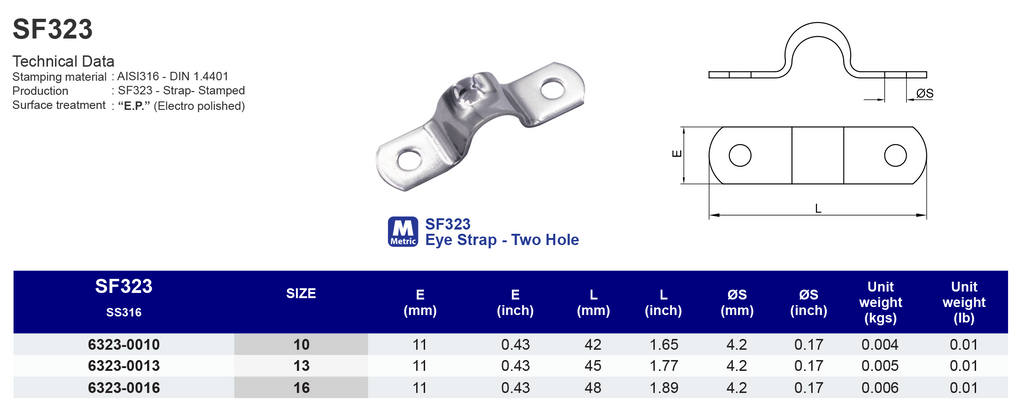

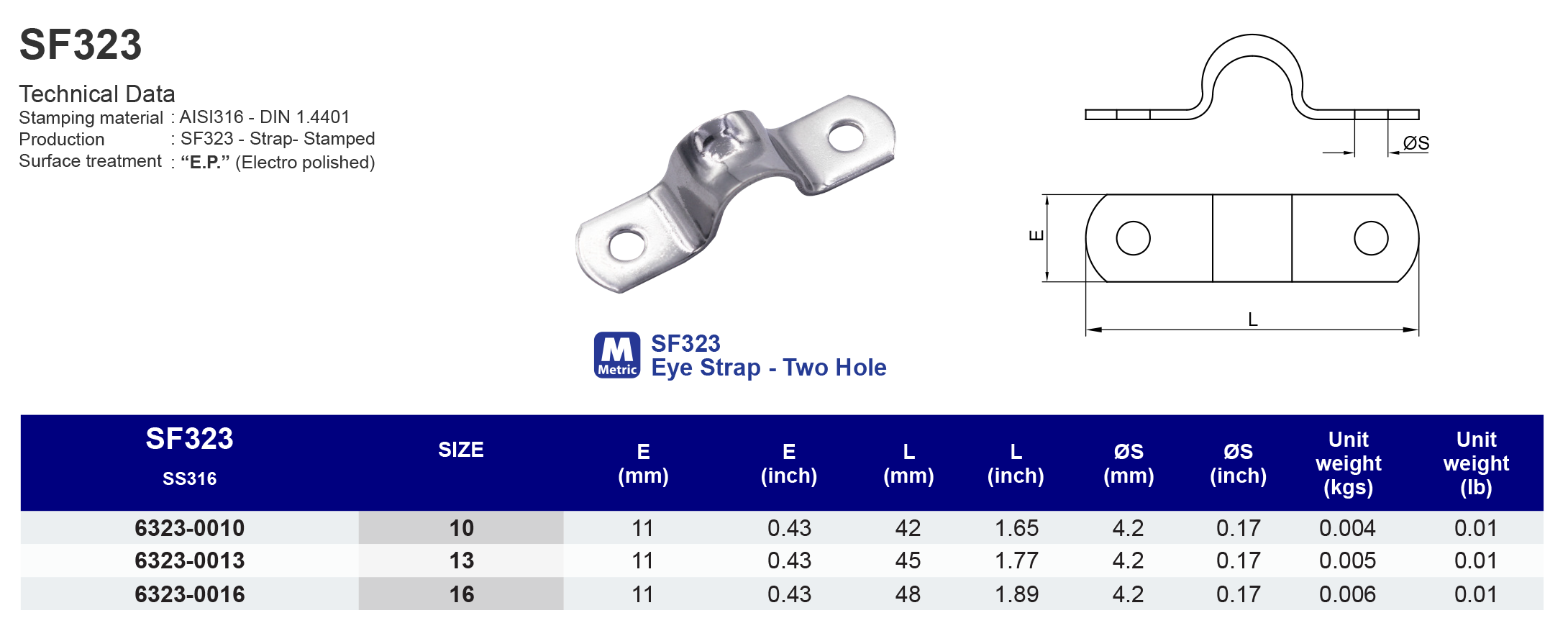

Model
SF323
Eye Strap - Two Hole Type
316 ss
| SS316 | Size | E(mm) | L(mm) | ØS(mm) | Unit weight(kgs) |
|---|---|---|---|---|---|
| 6323-0010 | 10 | 11 | 42 | 4.2 | 0.004 |
| 6323-0013 | 13 | 11 | 45 | 4.2 | 0.005 |
| 6323-0016 | 16 | 11 | 48 | 4.2 | 0.006 |
| SS316 | Size | E(inch) | L(inch) | ØS(inch) | Unit weight(Ib) |
|---|---|---|---|---|---|
| 6323-0010 | 10 | 0.43 | 1.65 | 0.17 | 0.01 |
| 6323-0013 | 13 | 0.43 | 1.77 | 0.17 | 0.01 |
| 6323-0016 | 16 | 0.43 | 1.89 | 0.17 | 0.01 |
