Description

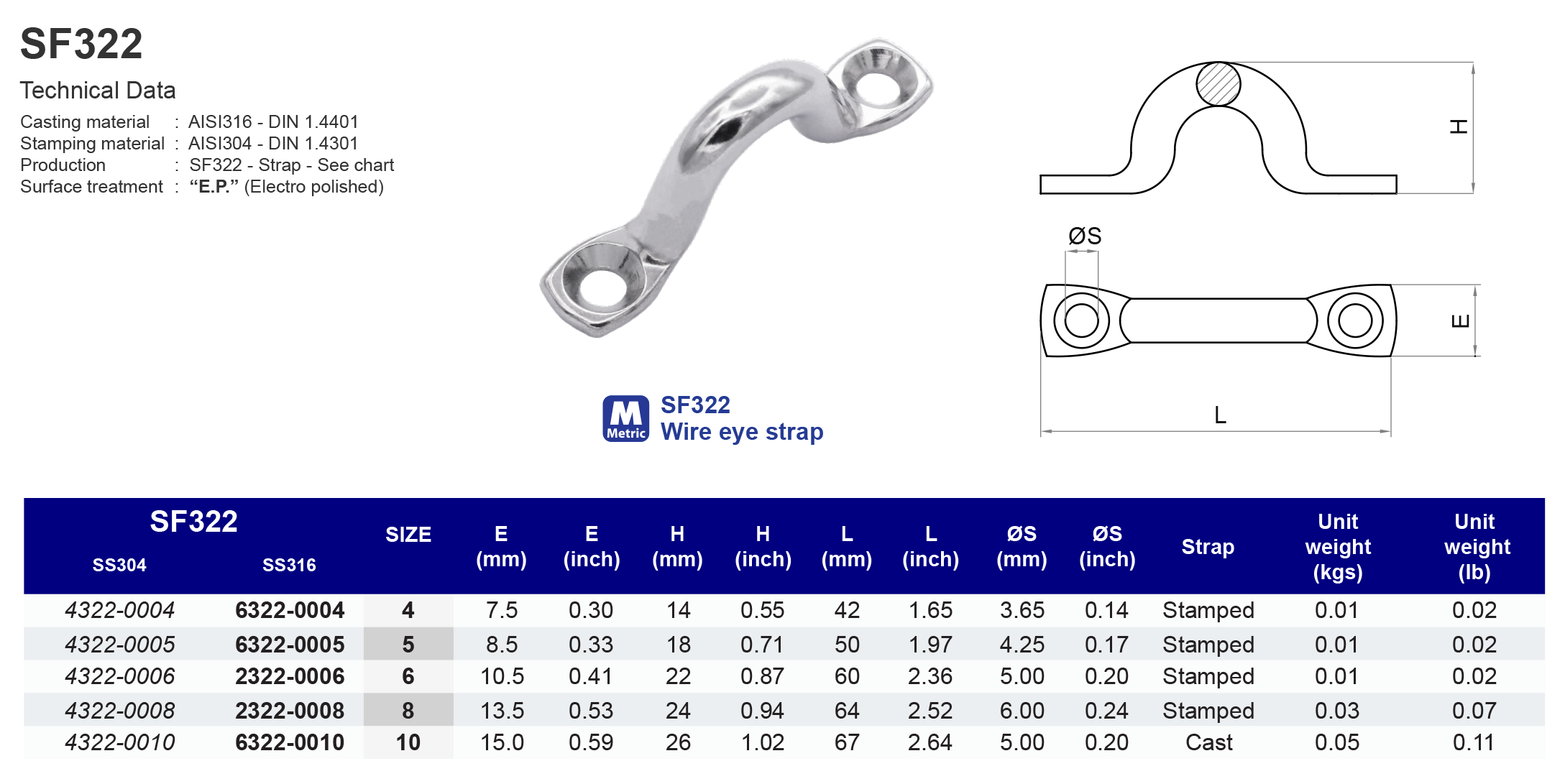

Technical Data:
Casting Material: AISI316 - DIN 1.4401
Samping Material: AISI304 - DIN 1.4301
Production: SF322 - Strap - See Chart
Surface Treatment: “E.P.” (Electro polished)
Model
SF322

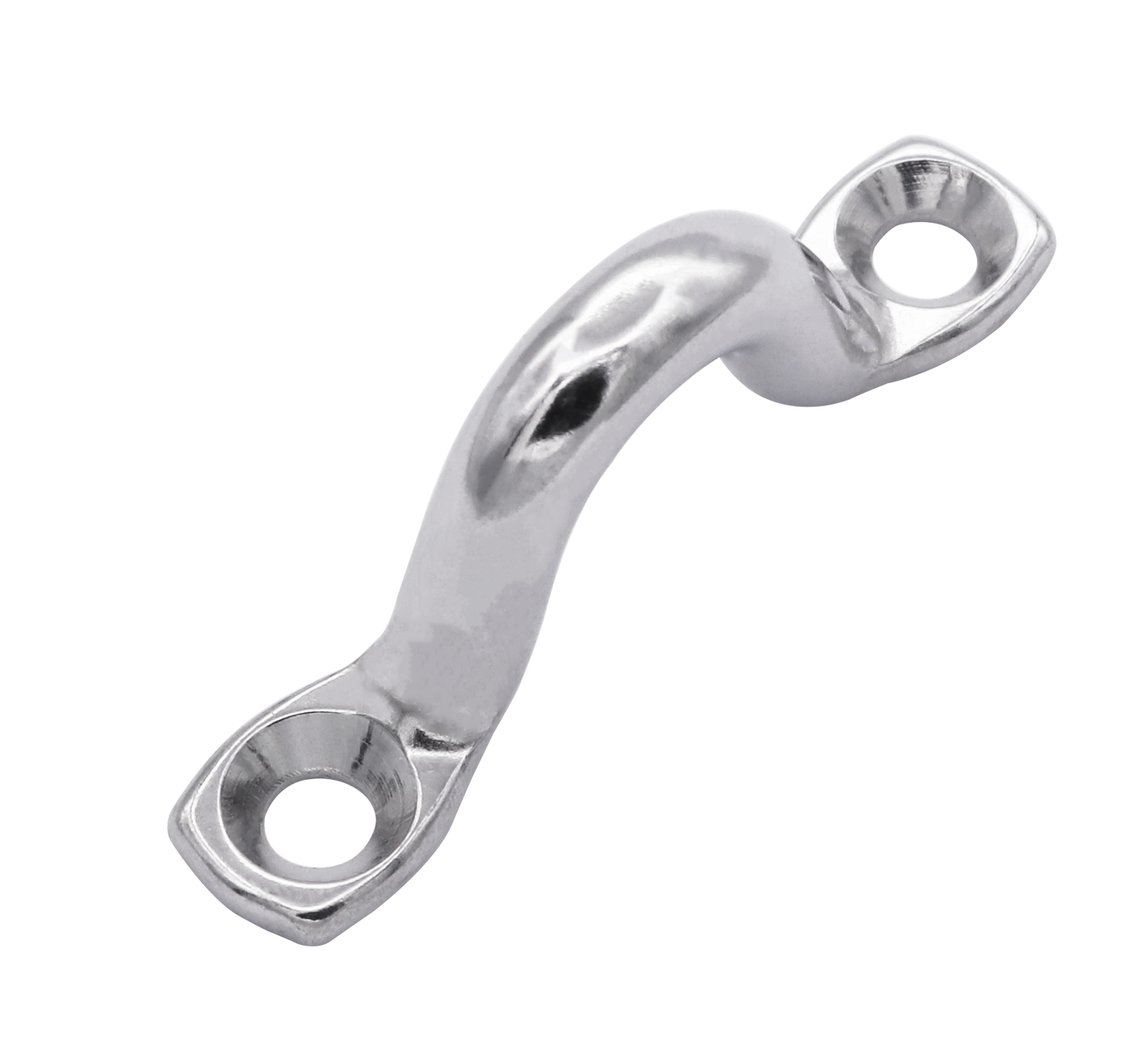

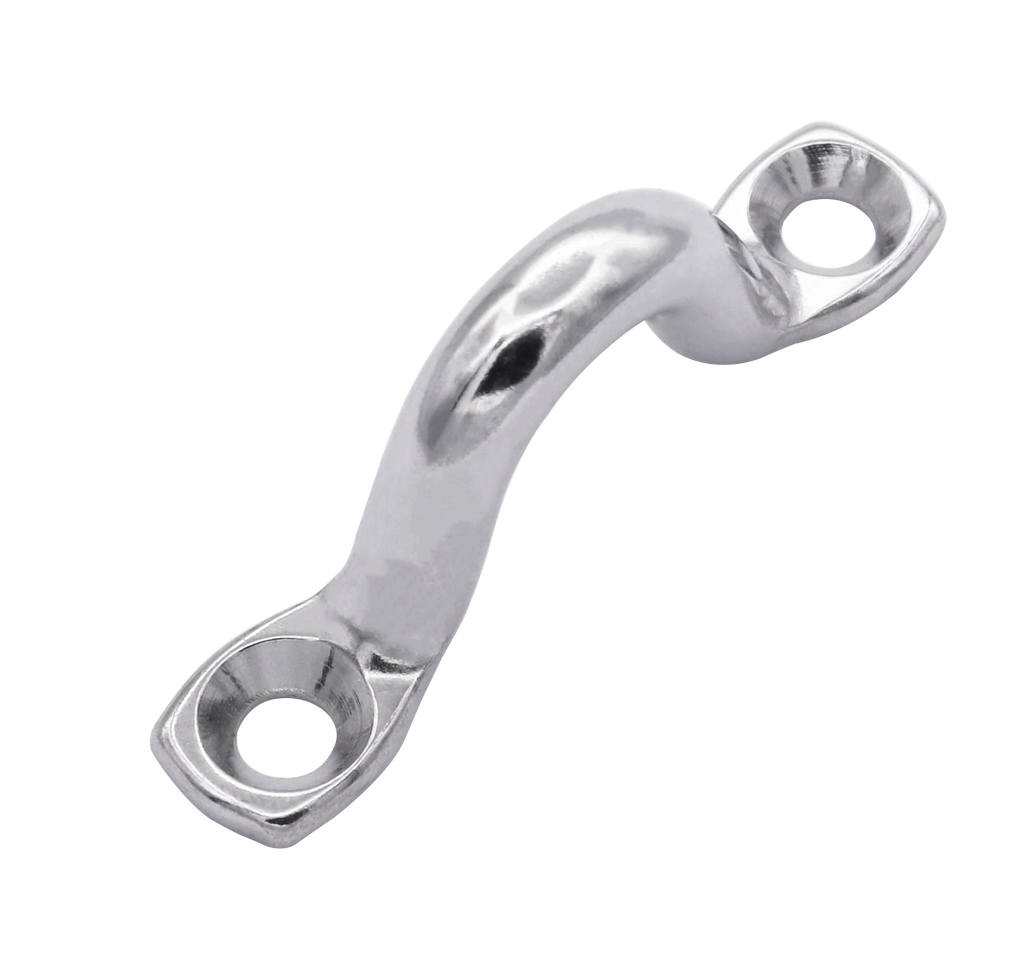

Wire Eye Strap
316 ss
| SS316 | Size | E (mm) | H (mm) | L (mm) | ØS (mm) | Strap | Unit weight (kgs) |
|---|---|---|---|---|---|---|---|
| 63220004 | 4 | 7.5 | 14 | 42 | 3.60 | Stamped | 0.01 |
| 63220005 | 5 | 8.5 | 18 | 50 | 4.20 | Stamped | 0.01 |
| 23220006 | 6 | 10.5 | 22 | 60 | 5.00 | Stamped | 0.01 |
| 23220008 | 8 | 13.5 | 24 | 64 | 6.00 | Stamped | 0.03 |
| 63220010 | 10 | 15.0 | 26 | 67 | 5.50 | Cast | 0.05 |
| SS316 | Size | E (inch) | H (inch) | L (inch) | ØS (inch) | Strap | Unit weight (lb) |
|---|---|---|---|---|---|---|---|
| 63220004 | 5/32" | 0.30 | 0.55 | 1.65 | 0.14 | Stamped | 0.02 |
| 63220005 | 3/16" | 0.33 | 0.71 | 1.97 | 0.17 | Stamped | 0.02 |
| 23220006 | 1/4" | 0.41 | 0.87 | 2.36 | 0.20 | Stamped | 0.02 |
| 23220008 | 5/16" | 0.53 | 0.94 | 2.52 | 0.24 | Stamped | 0.07 |
| 63220010 | 3/8" | 0.59 | 1.02 | 2.64 | 0.22 | Cast | 0.11 |
