SF322 Wire Eye Strap - 304

SKU: 43220004

Size: 4mm
Price:

Login to view the price.

Stock:
Login to view stock.

Description

Technical Data:
Casting Material: AISI316 - DIN 1.4401
Samping Material: AISI304 - DIN 1.4301
Production: SF322 - Strap - See Chart
Surface Treatment: “E.P.” (Electro polished)

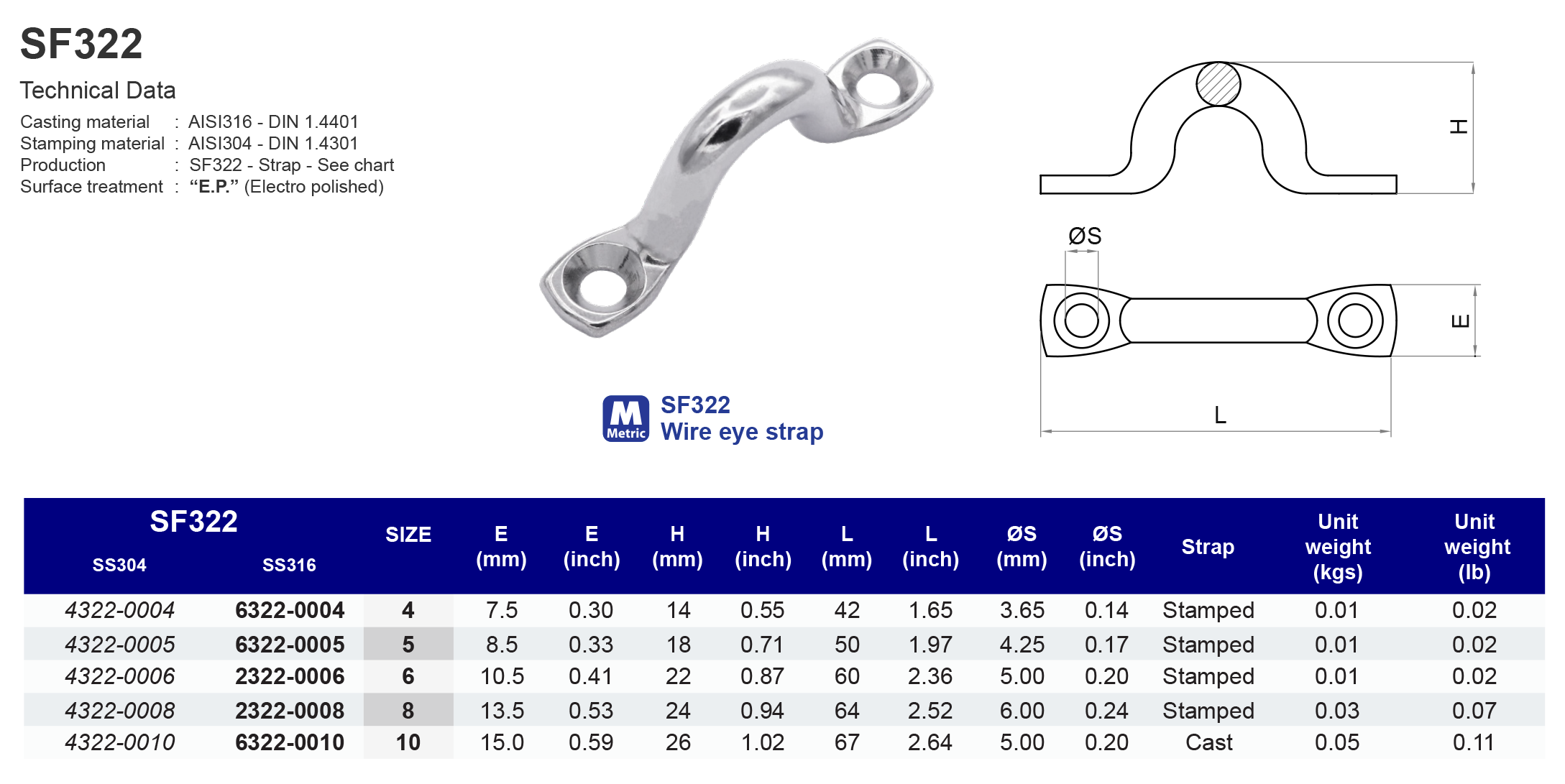

DATA SHEET DOWNLOAD

Model

SF322

Wire Eye Strap
304 ss

SF322drawing

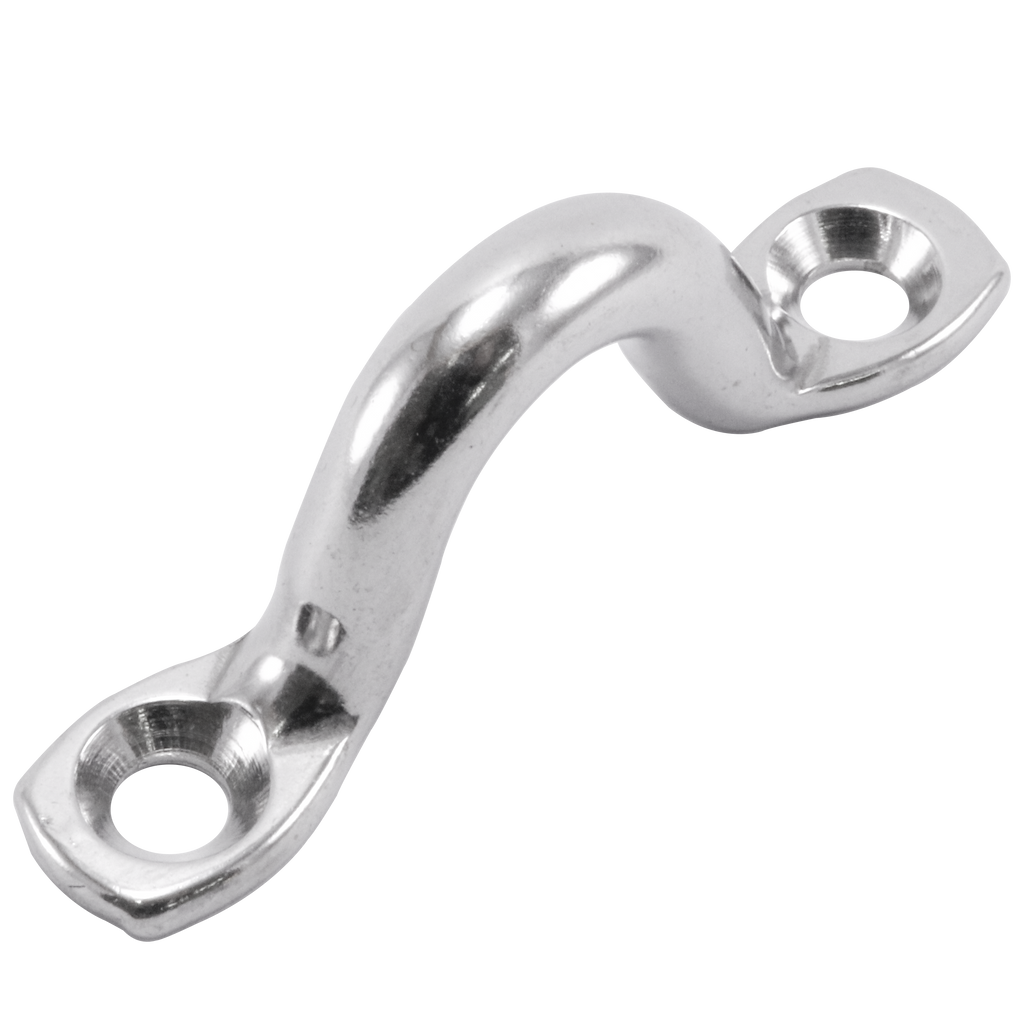

SF322 image
SS304SizeE (mm)H (mm)L (mm)ØS (mm)StrapUnit weight (kgs)
4322000447.514423.65Stamped0.01
4322000558.518504.25Stamped0.01
43220006610.522605.00Stamped0.01
43220008813.524646.00Stamped0.03
432200101015.026675.00Cast0.05
SS304SizeE (inch)H (inch)L (inch)ØS (inch)StrapUnit weight (lb)
432200045/32"0.300.551.650.14Stamped0.02
432200053/16"0.330.711.970.17Stamped0.02
432200061/4"0.410.872.360.20Stamped0.02
432200085/16"0.530.942.520.24Stamped0.07
432200103/8"0.591.022.640.20Cast0.11
