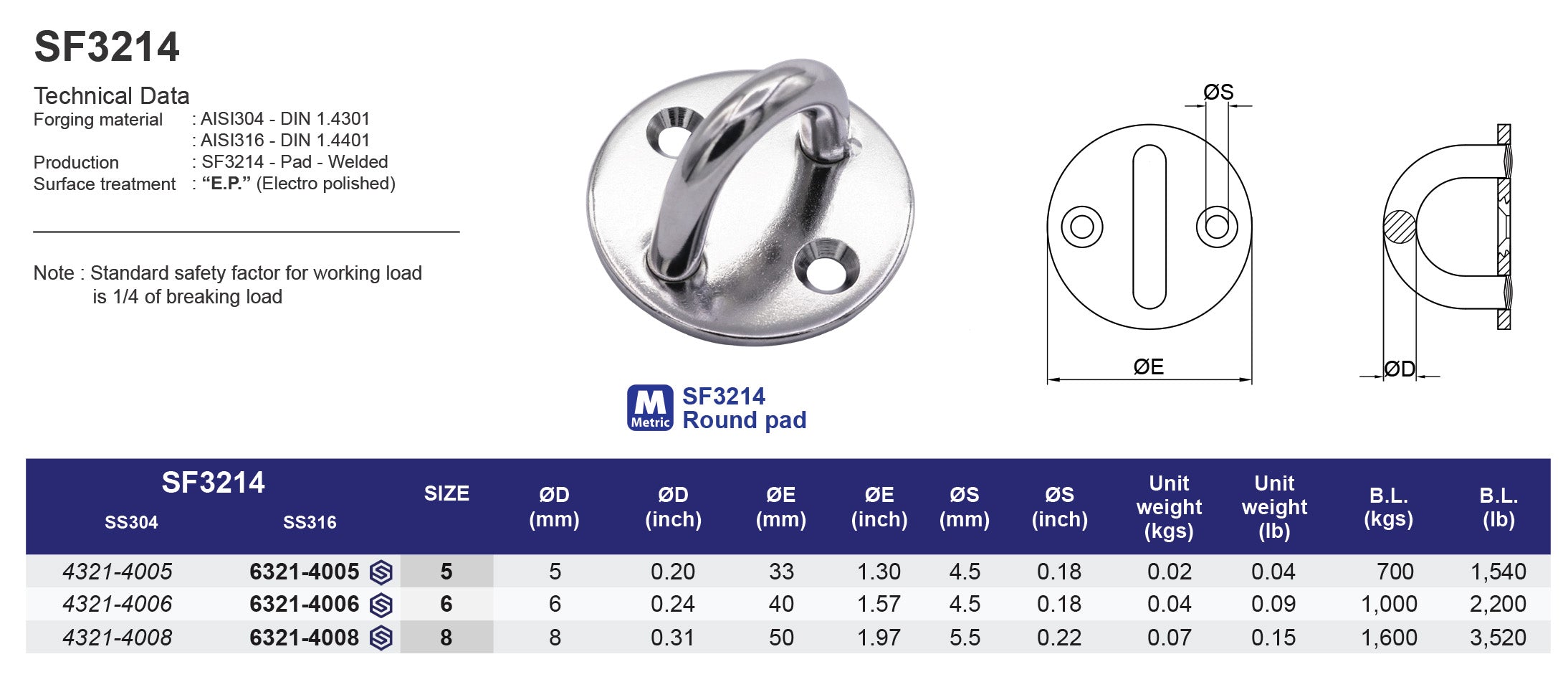

Description
Technical Data:
Forging Material: AISI304 - DIN 1.4301
AISI316 - DIN 1.4401
Production: SF3214 - Pad - Welded
Surface Treatment: “E.P.” (Electro polished) Note : Standard safety factor for working load is 1/4 of breaking load
Model
SF3214

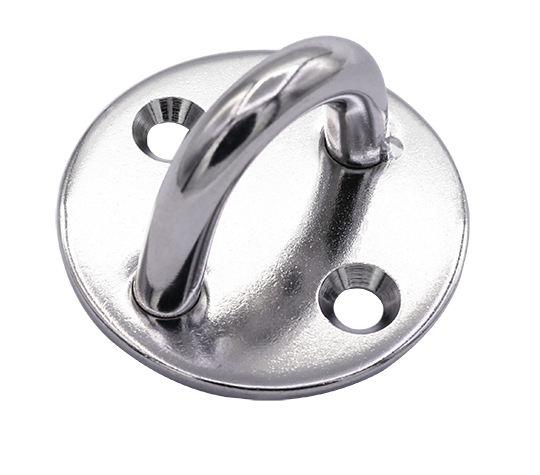

Roung Pad
304 ss
| SS304 | Size | ØD (mm) | ØE (mm) | ØS (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 43214005 | 5 | 5 | 33 | 4.5 | 0.02 | 700 |
| 43214006 | 6 | 6 | 40 | 4.5 | 0.02 | 1,000 |
| 43214008 | 8 | 8 | 50 | 5.5 | 0.07 | 1,600 |
| SS304 | Size | ØD (inch) | ØE (inch) | ØS (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 43214005 | 3/16" | 0.20 | 1.30 | 0.18 | 0.04 | 1,540 |
| 43214006 | 1/4" | 0.24 | 1.57 | 0.18 | 0.04 | 2,200 |
| 43214008 | 5/16" | 0.31 | 1.97 | 0.22 | 0.15 | 3,520 |
