SF3214 Roung Pad - 316

SKU: 63214005

Size (mm): 5mm
Price:

Login to view the price.

Stock:
Login to view stock.

Description

Technical Data:
Forging Material: AISI304 - DIN 1.4301
AISI316 - DIN 1.4401
Production:
SF3214 - Pad - Welded
Surface Treatment: “E.P.” (Electro polished)                                                                       Note : Standard safety factor for working load is 1/4 of breaking load

DATA SHEET DOWNLOAD

Model

SF3214

Roung Pad
316 ss

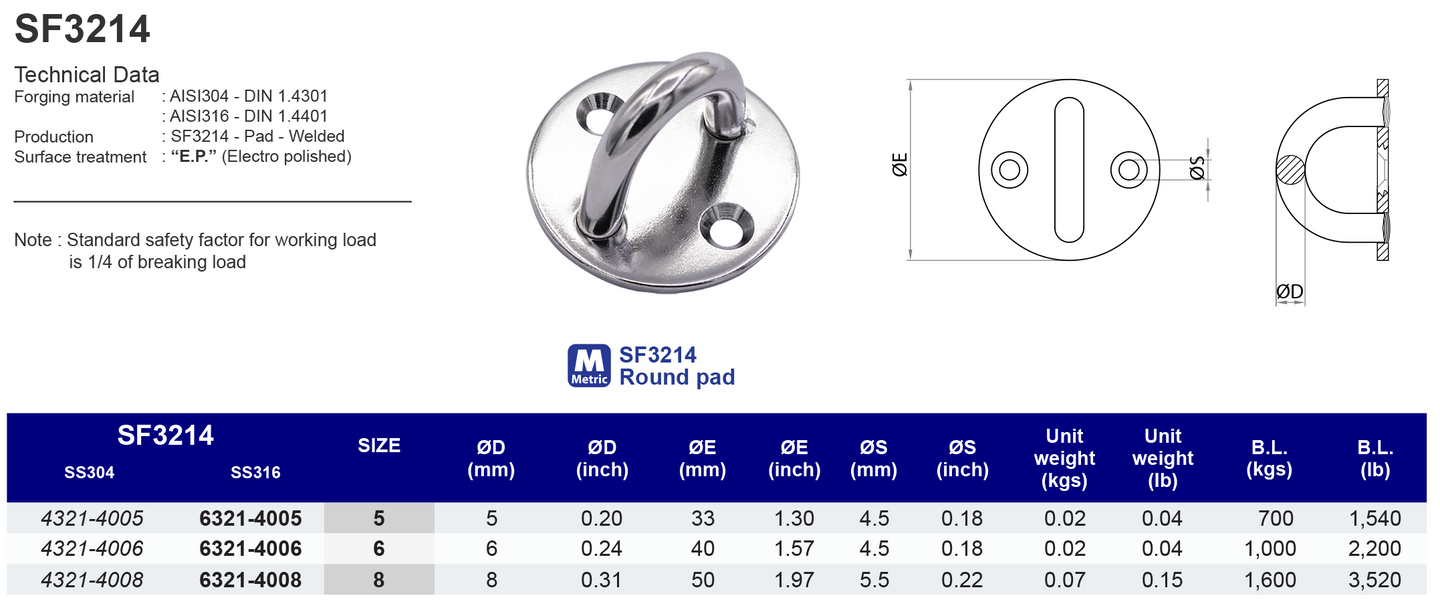

SF3214drawing

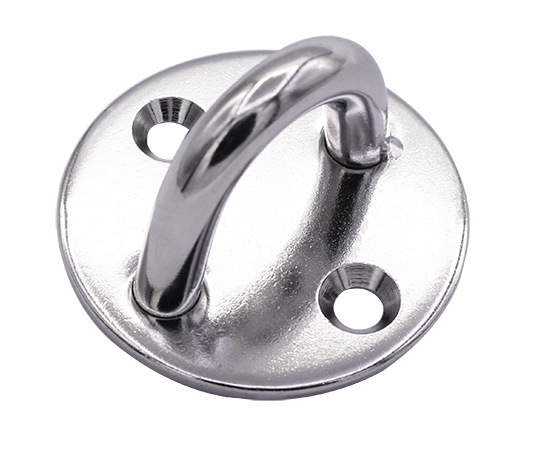

SF3214 image
SS316SizeØD (mm)ØE (mm)ØS (mm)Unit weight (kgs)B.L. (kgs)
6321400555334.50.02700
6321400666404.50.021,000
6321400888505.50.071,600
SS316SizeØD (inch)ØE (inch)ØS (inch)Unit weight (lb)B.L. (lb)
632140053/16"0.201.300.180.041,540
632140061/4"0.241.570.180.042,200
632140085/16"0.311.970.220.153,520
